Camshaft Journal - Clearance, PLASTIGAGE Method

NOTE: The camshaft journals must meet specifications before checking camshaft journal clearance.
  1. Remove the camshaft bearing cap and lay Plastigage across the surface.

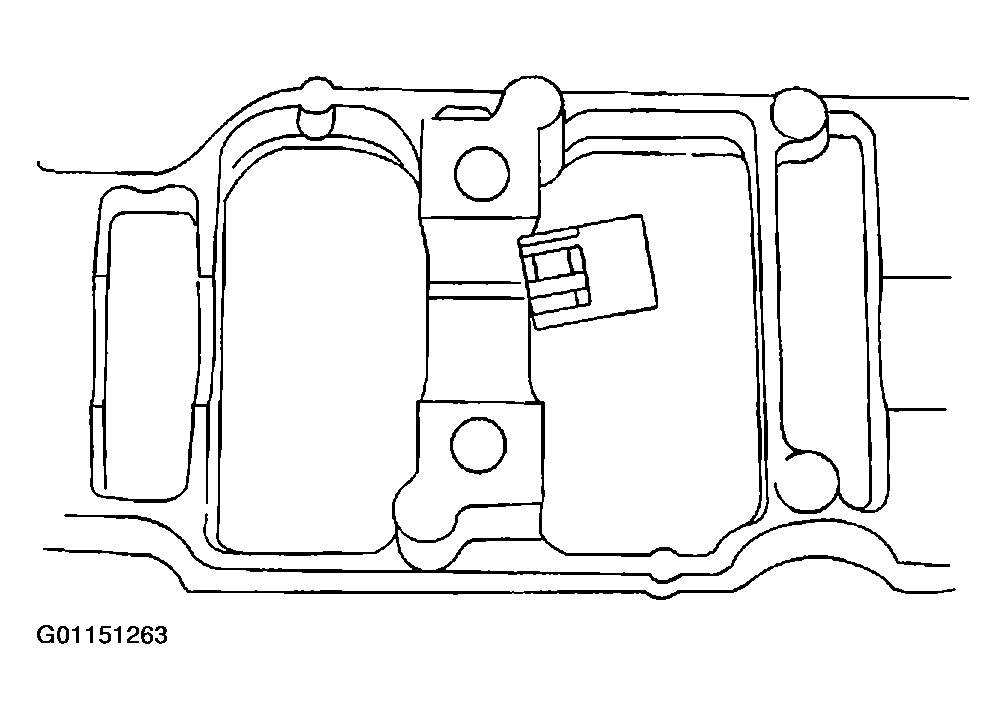

    Fig 1: Laying Plastigage Across Camshaft Bearing Cap Surface
    G01151263Courtesy of MAZDA MOTORS CORP.
    2. NOTE: Do not turn the camshaft while carrying out this procedure.
  2. Position the camshaft bearing cap and install the bolts.
  3. Use Plastigage to verify the camshaft journal clearance. Refer to SPECIFICATIONS .
    • If it is out of specification, install new components as necessary.
