Removal & Installation

  1. Remove the transaxle.
  2. Remove the bolts and the flexplate.

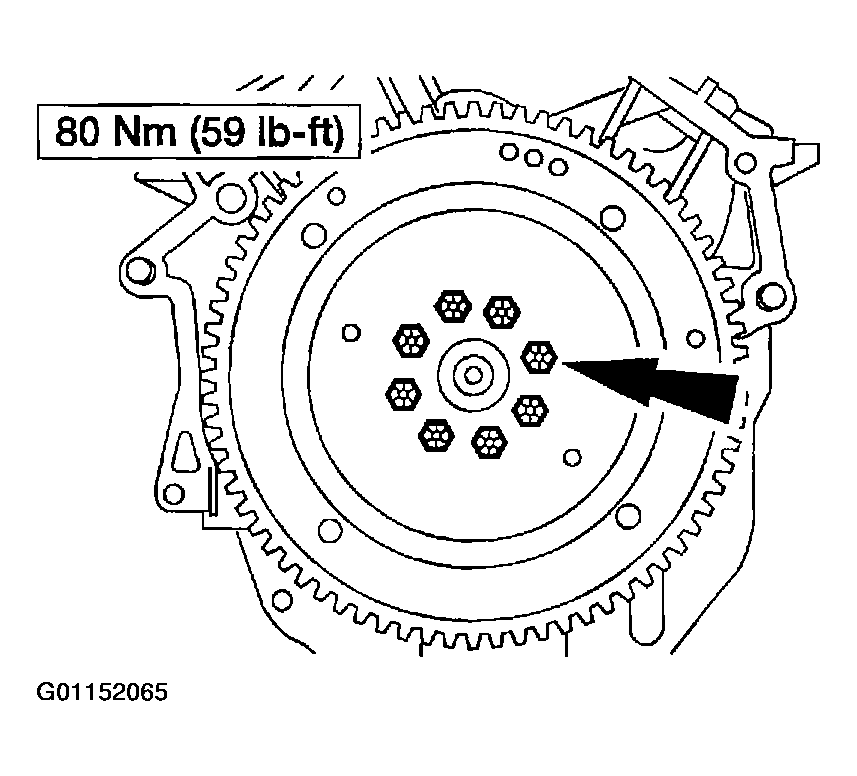

    Fig 1: Removing Flexplate
    G01152065Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
