Removal & Installation

  1. Disconnect the EGR tube nut at the manifold connector.

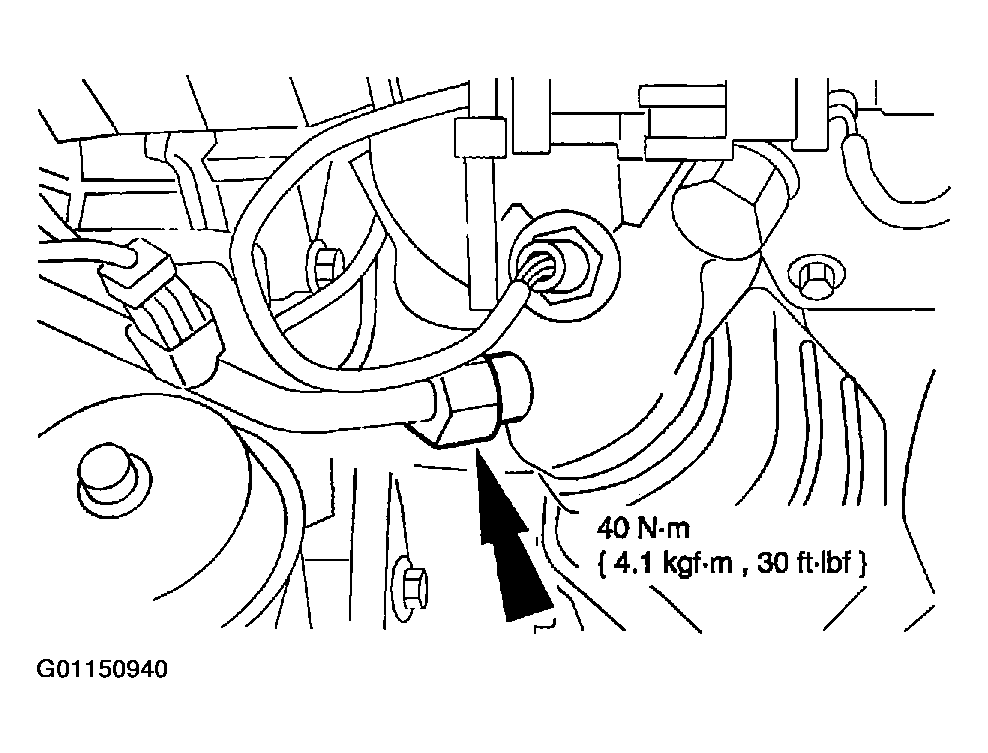

    Fig 1: Disconnecting EGR Tube Nut
    G01150940Courtesy of MAZDA MOTORS CORP.
  2. Carefully remove the differential pressure feedback EGR sensor from the EGR tube.

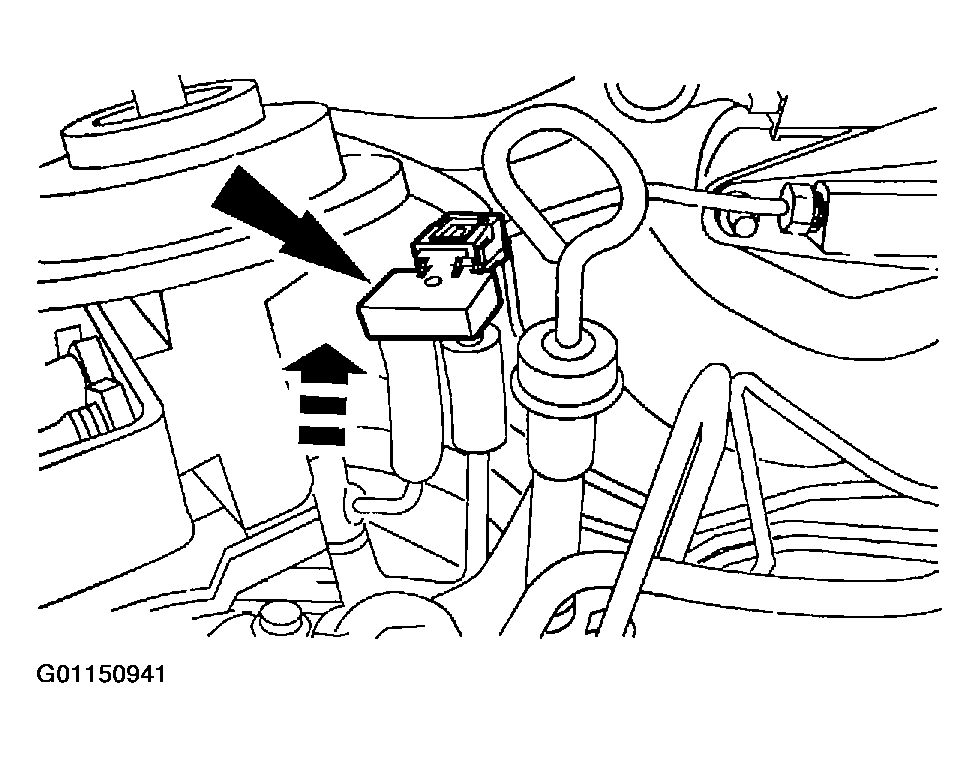

    Fig 2: Disconnecting Differential Pressure Feedback EGR Sensor
    G01150941Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the EGR tube fitting and remove the EGR tube.

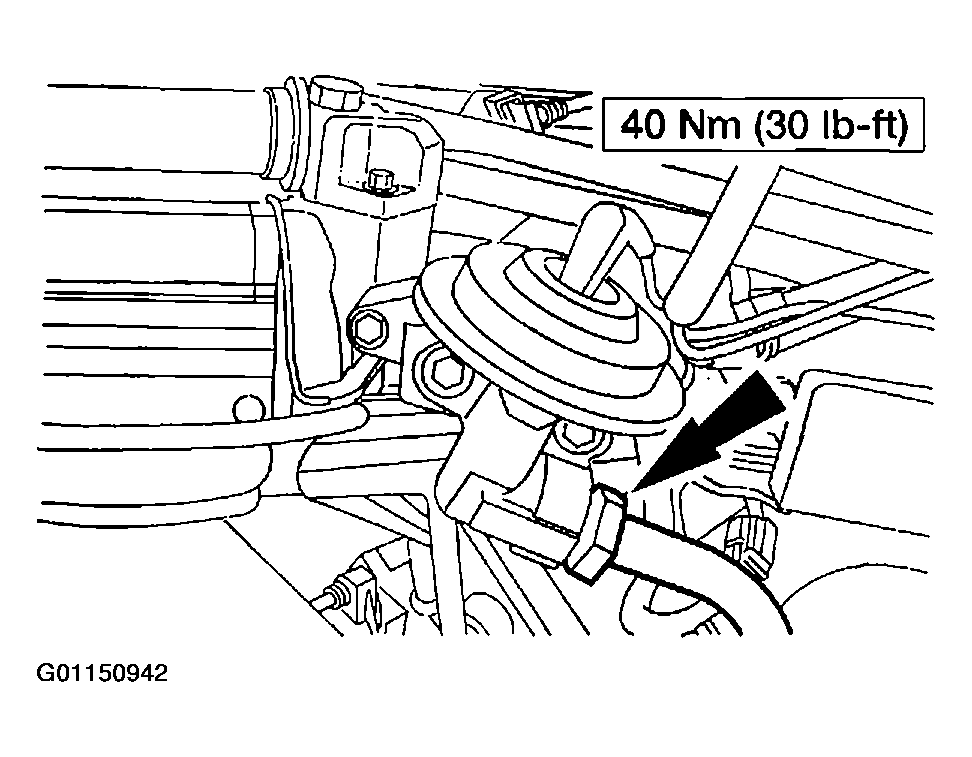

    Fig 3: Disconnecting EGR Tube Fitting
    G01150942Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
