Exhaust Manifold - RH: Removal

  1. Remove the exhaust gas recirculation (EGR) tube. Refer to EXHAUST MANIFOLD TO EXHAUST GAS RECIRCULATION (EGR) VALVE TUBE .
  2. Remove the generator. Refer to GENERATOR .
  3. Disconnect and remove the RH Heated Oxygen Sensor (HO2S).
  4. Remove the exhaust flexible pipe. Refer to EXHAUST FLEXIBLE PIPE .

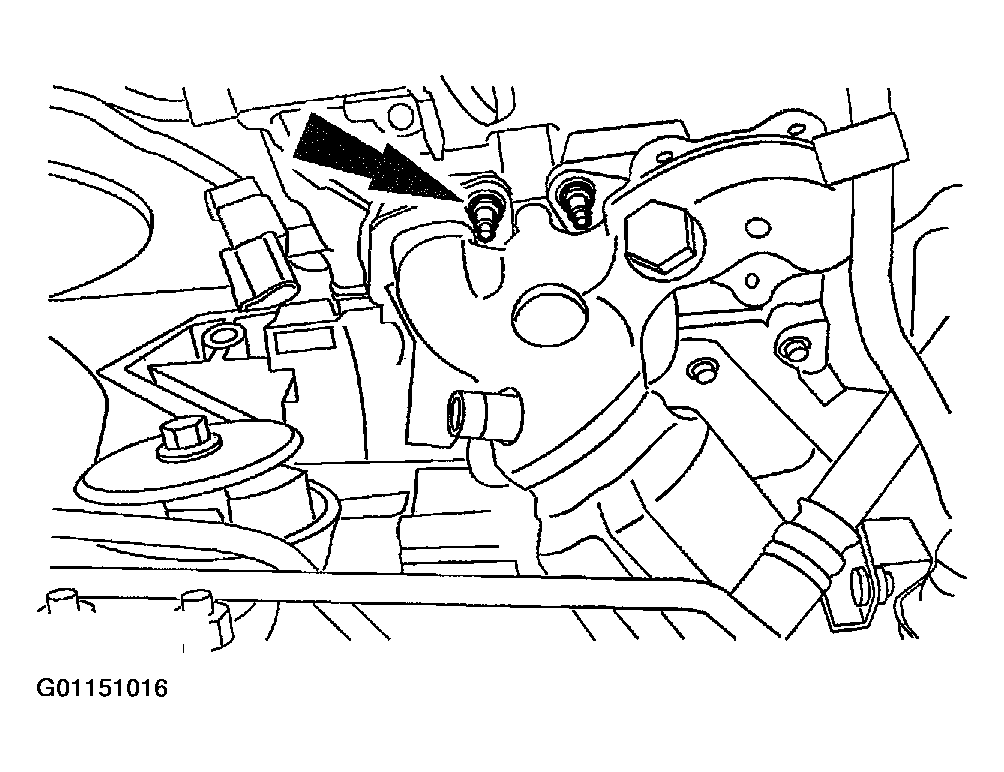

    Fig 1: Removing Exhaust Flexible Pipe
    G01151016Courtesy of MAZDA MOTORS CORP.
  5. Remove the RH manifold.
    • Discard the gasket.
