Exhaust Manifold - RH: Installation

Position a new gasket and install the exhaust manifold nuts in the sequence shown.

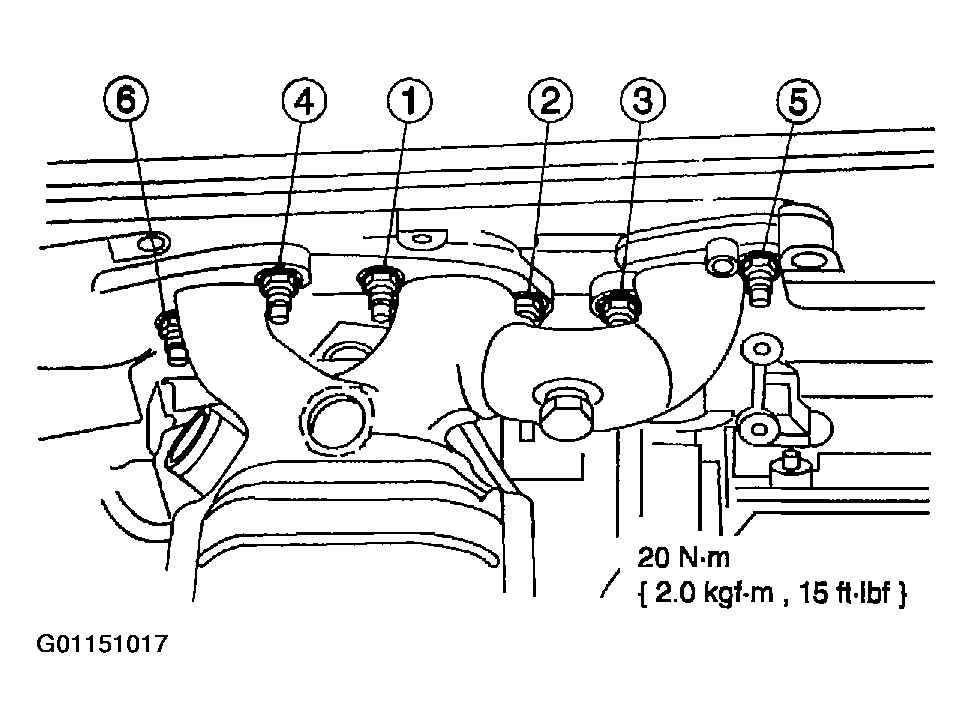

Fig 1: RH Exhaust Manifold Nut Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Install RH the HO2S.
Install the exhaust flexible pipe. Refer to EXHAUST FLEXIBLE PIPE .
Install the generator. Refer to the following:
- For 2001 models, see GENERATOR .
- For 2002 models, see GENERATOR .
- For 2003 models, see GENERATOR .
Install the EGR tube. Refer to EXHAUST MANIFOLD TO EXHAUST GAS RECIRCULATION (EGR) VALVE TUBE .
