Exhaust Manifold - LH: Installation

Position a new gasket and tighten the exhaust manifold in the sequence shown.

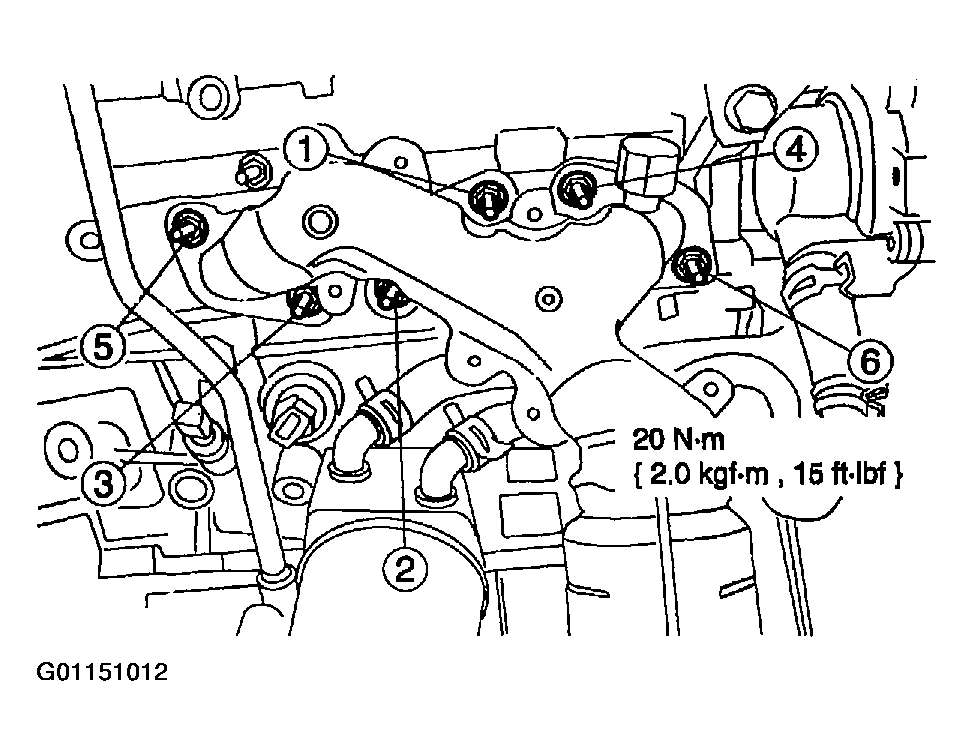

Fig 1: LH Exhaust Manifold Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Position the A/C compressor and install the bolts.

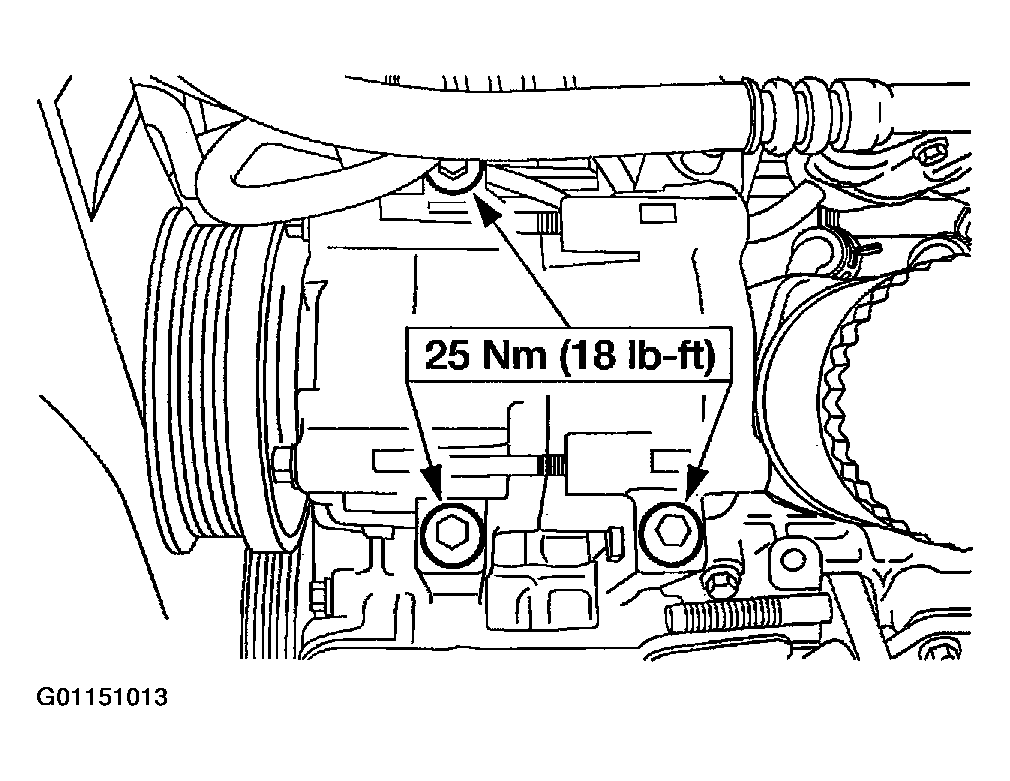

Fig 2: Installing A/C Compressor
Courtesy of MAZDA MOTORS CORP.
Install the accessory drive belt. Refer to SPECIFICATIONS & DRIVE BELT ROUTING .
Install the exhaust crossover.

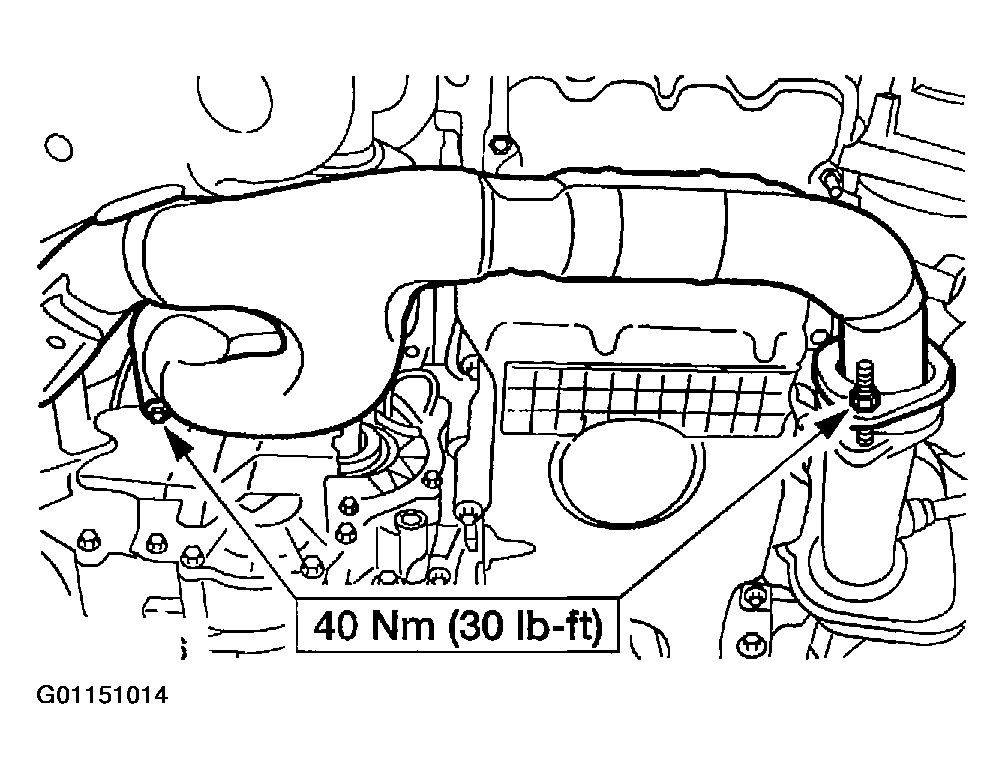

Fig 3: Installing Exhaust Crossover
Courtesy of MAZDA MOTORS CORP.
Install the splash shield.

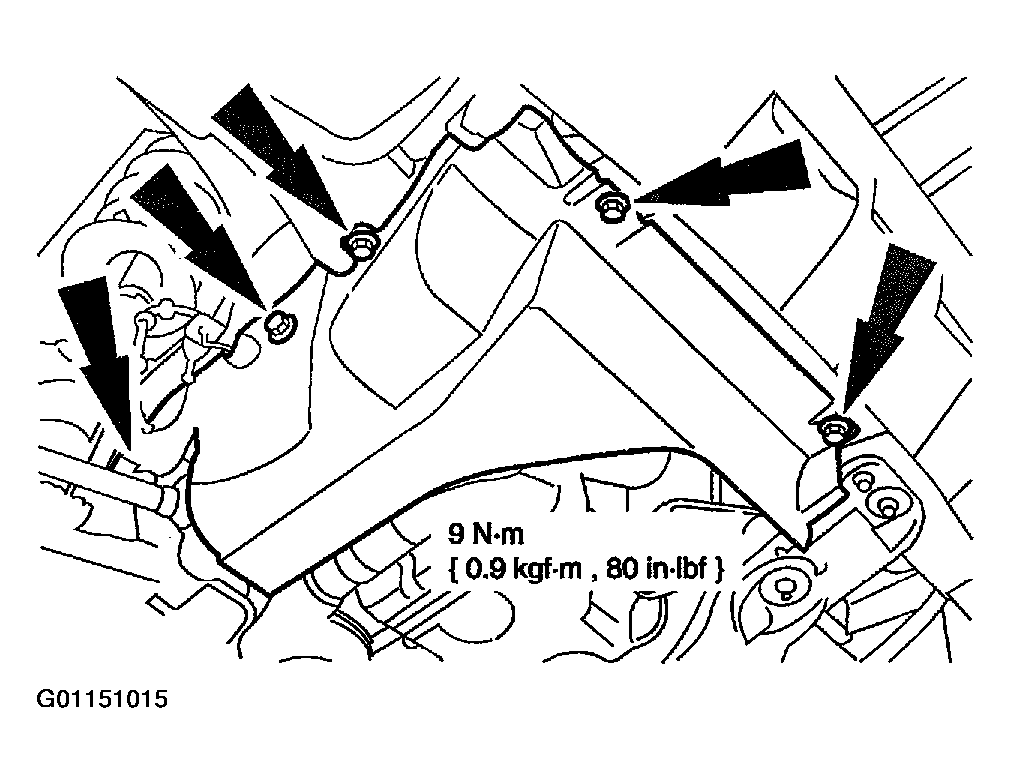

Fig 4: Installing Splash Shield
Courtesy of MAZDA MOTORS CORP.
Install the LH HO2S and the LH catalyst monitor. Refer to the following:
- For 2001 models, see HEATED OXYGEN SENSOR .
- For 2002 models, see HEATED OXYGEN SENSOR .
- For 2003 models, see HEATED OXYGEN SENSOR .
