Removal & Installation

  1. Remove the EGR valve.
    1. Disconnect the vacuum line.
    2. Disconnect the EGR tube.
    3. Remove the EGR valve and discard the gasket.

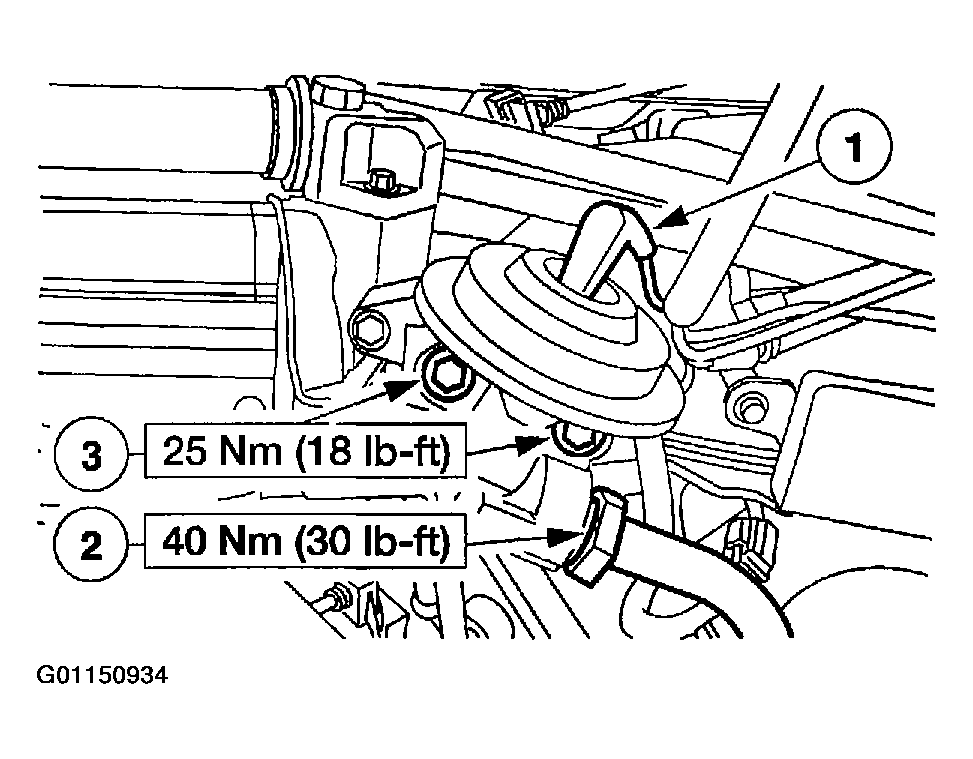

    Fig 1: Removing EGR Valve
    G01150934Courtesy of MAZDA MOTORS CORP.
    2. NOTE: The EGR valve sealing surfaces are soft metals.
  2. To install, reverse the removal procedure.
    1. Carefully clean all sealing surfaces and install a new EGR valve gasket.
