Removal & Installation

Raise and support the vehicle.
Remove the RH catalyst monitor sensor. Refer to the following:
- For 2001 models, see HEATED OXYGEN SENSOR .
- For 2002 models, see HEATED OXYGEN SENSOR .
- For 2003 models, see HEATED OXYGEN SENSOR .
Remove and discard the two nuts and separate the flexible Y-pipe from the manifold.

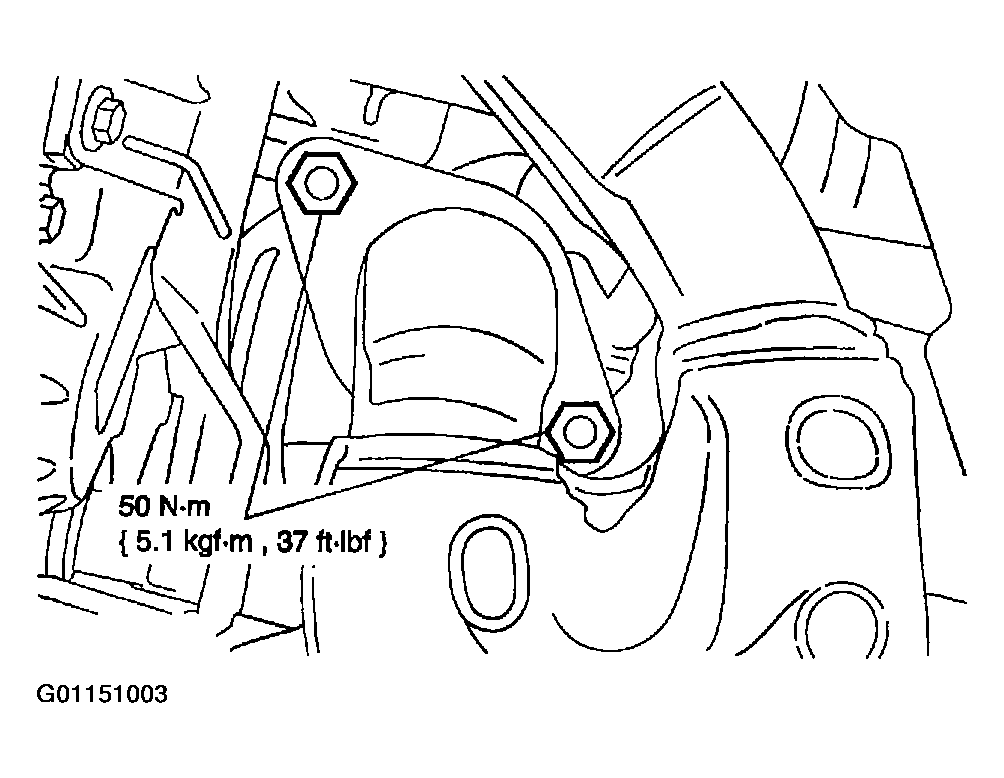

Fig 1: Removing Flexible Y-Pipe
Courtesy of MAZDA MOTORS CORP.
Remove and discard the nuts.
- Discard the gasket.

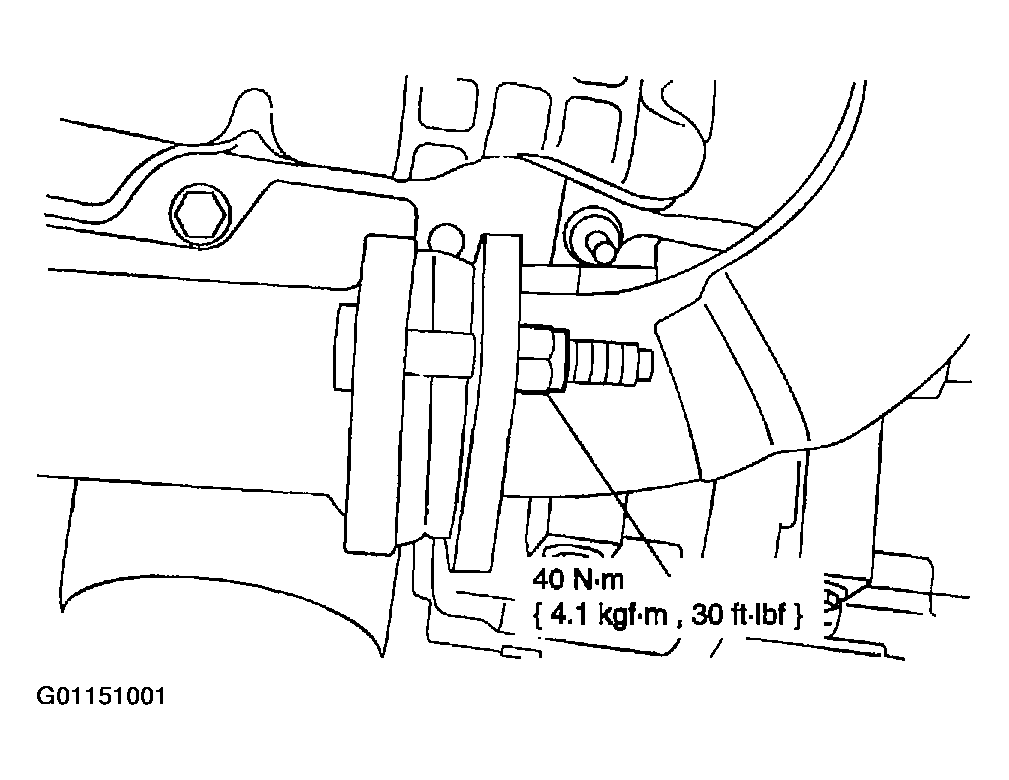

  Fig 2: Removing Nuts
  Courtesy of MAZDA MOTORS CORP.
Remove the nuts.
- Discard the gasket.

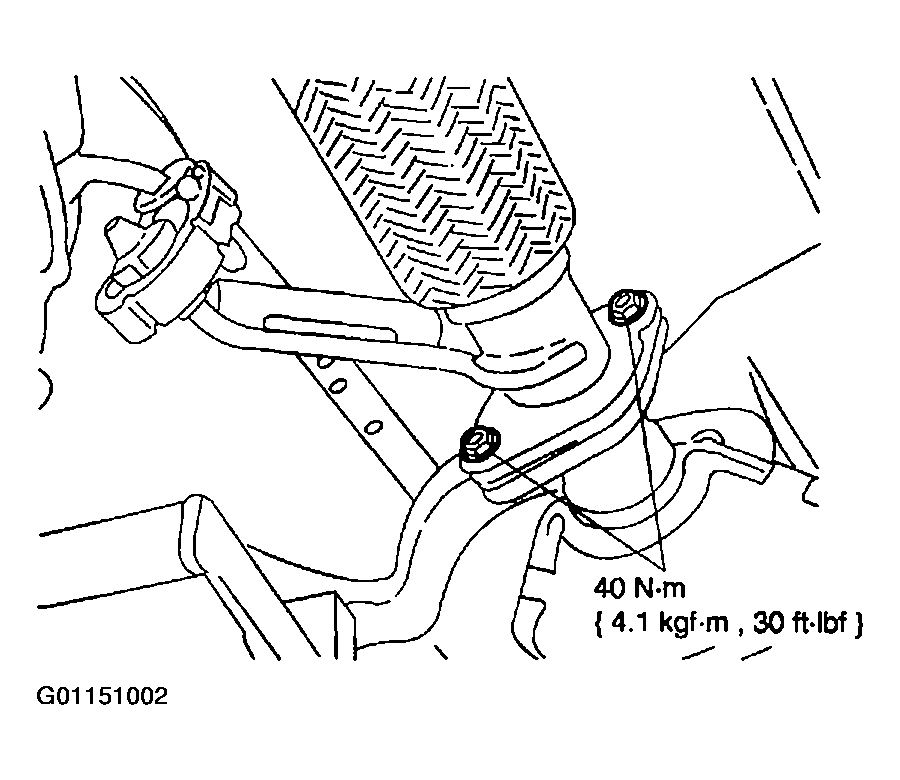

  Fig 3: Removing Flexible Y-Pipe Nuts
  Courtesy of MAZDA MOTORS CORP.
Remove the flexible pipe.
- Disconnect from the hanger.

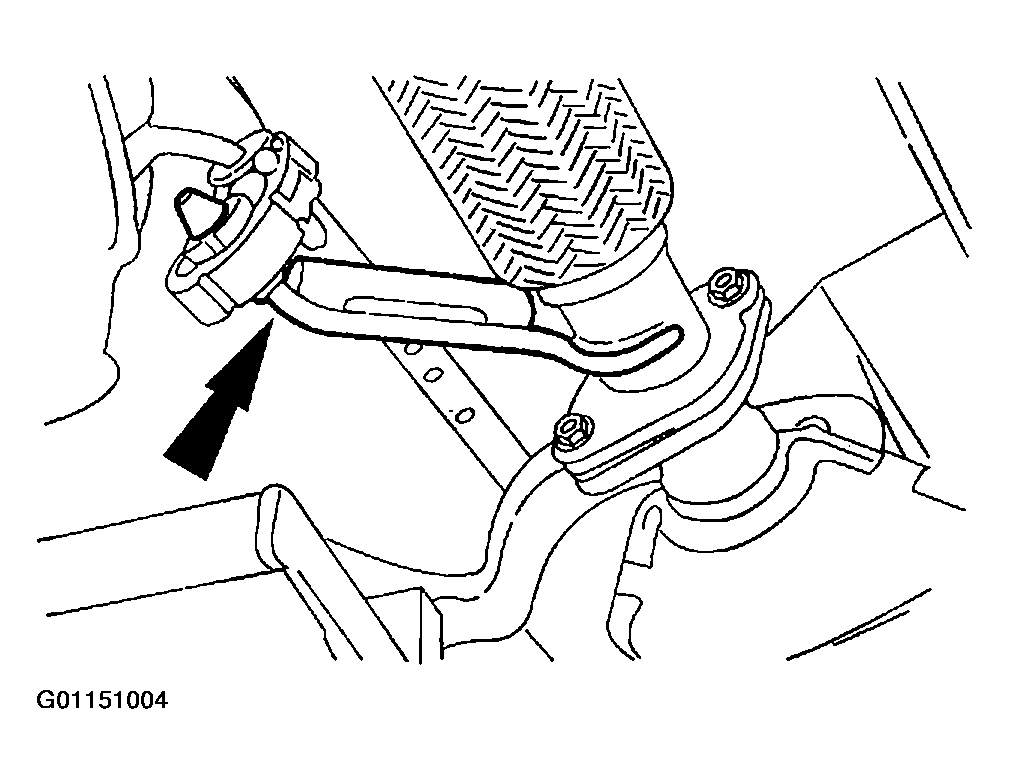

Fig 4: Removing Flexible Pipe From Hanger
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
- Install a new gasket.
- Install new nuts.
