Removal & Installation

  1. Remove the engine ground wire.

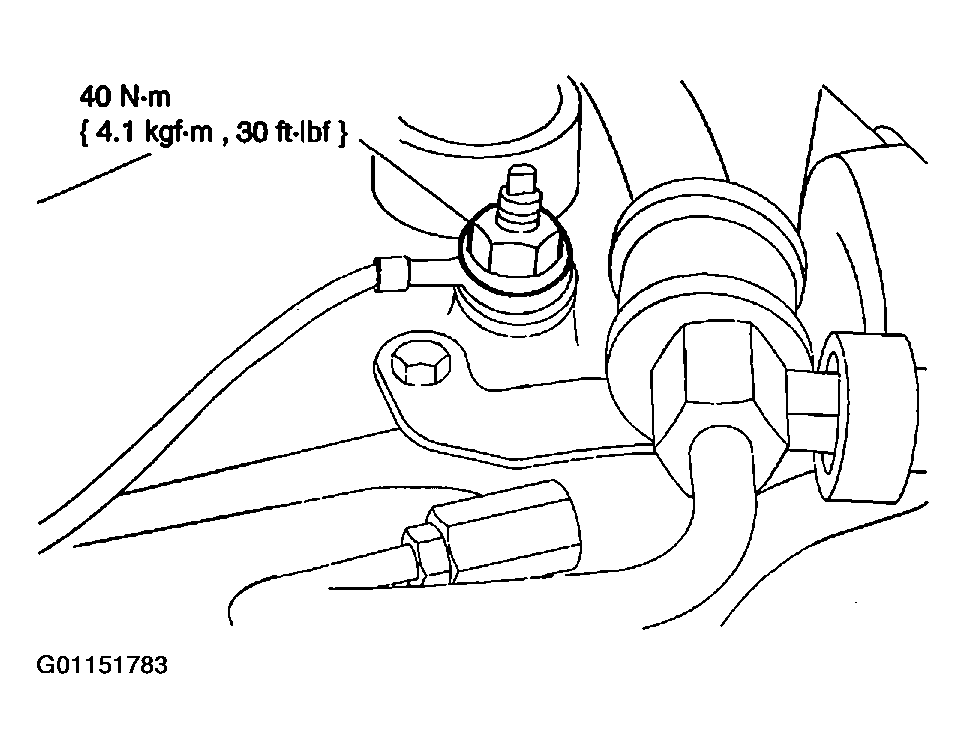

    Fig 1: Removing Engine Ground Wire
    G01151783Courtesy of MAZDA MOTORS CORP.
  2. Using the special tools, support the engine.

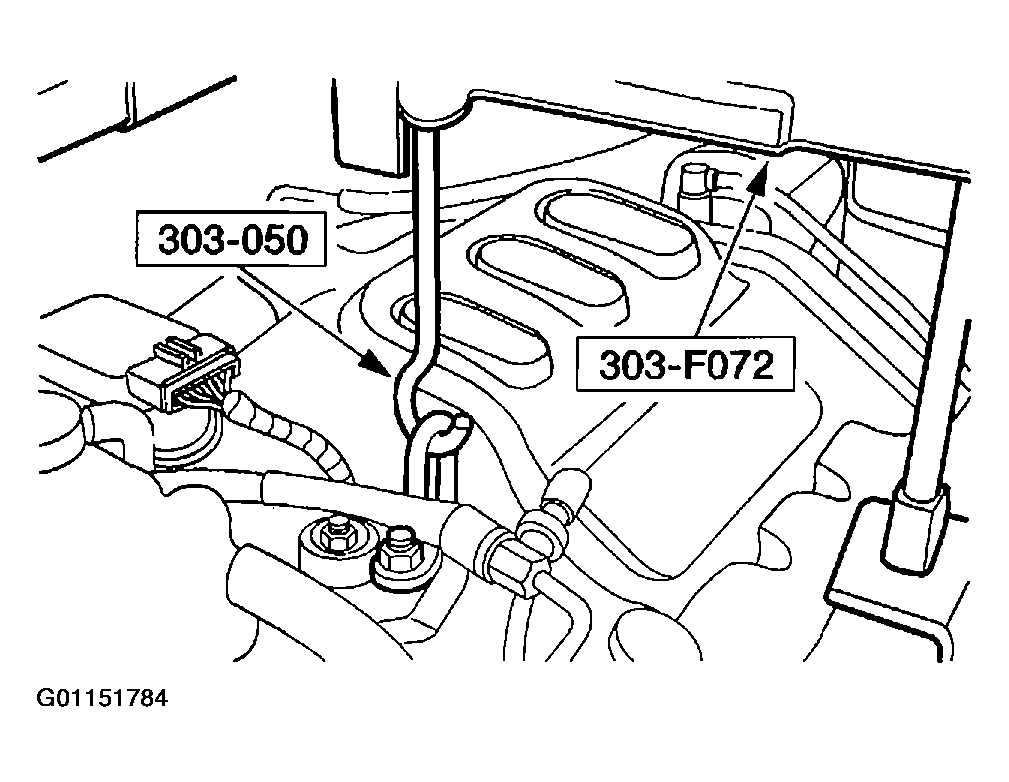

    Fig 2: Supporting Engine
    G01151784Courtesy of MAZDA MOTORS CORP.
  3. Remove the A/C line bracket bolt and position the A/C lines out of the way.

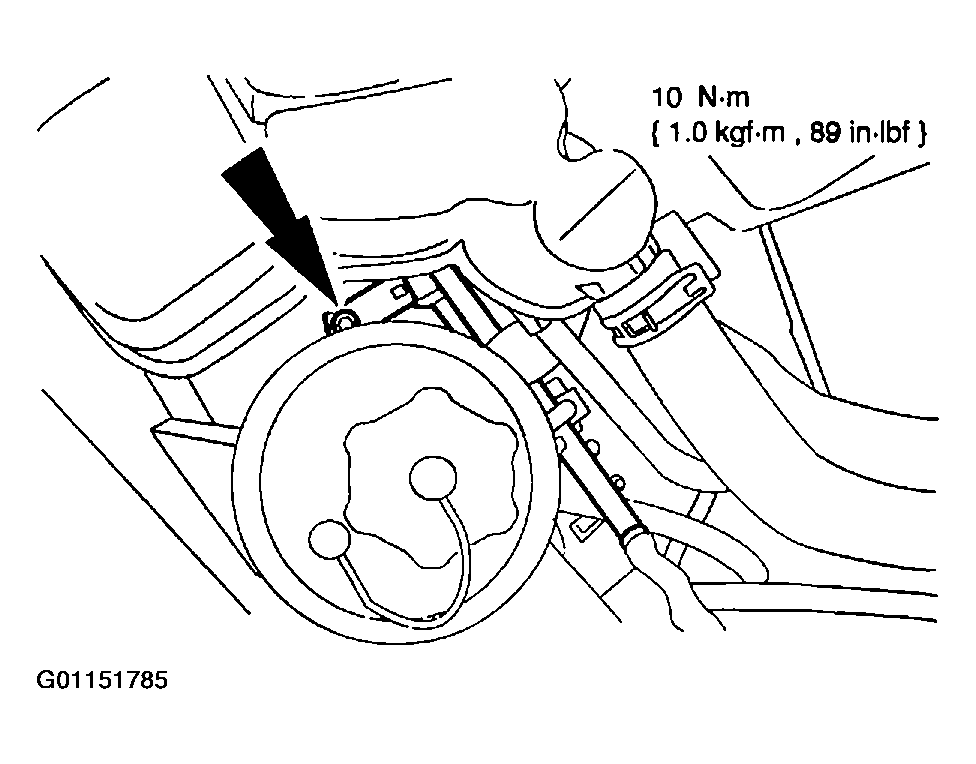

    Fig 3: Removing A/C Line Bracket
    G01151785Courtesy of MAZDA MOTORS CORP.
  4. Remove the engine support insulator bolt.

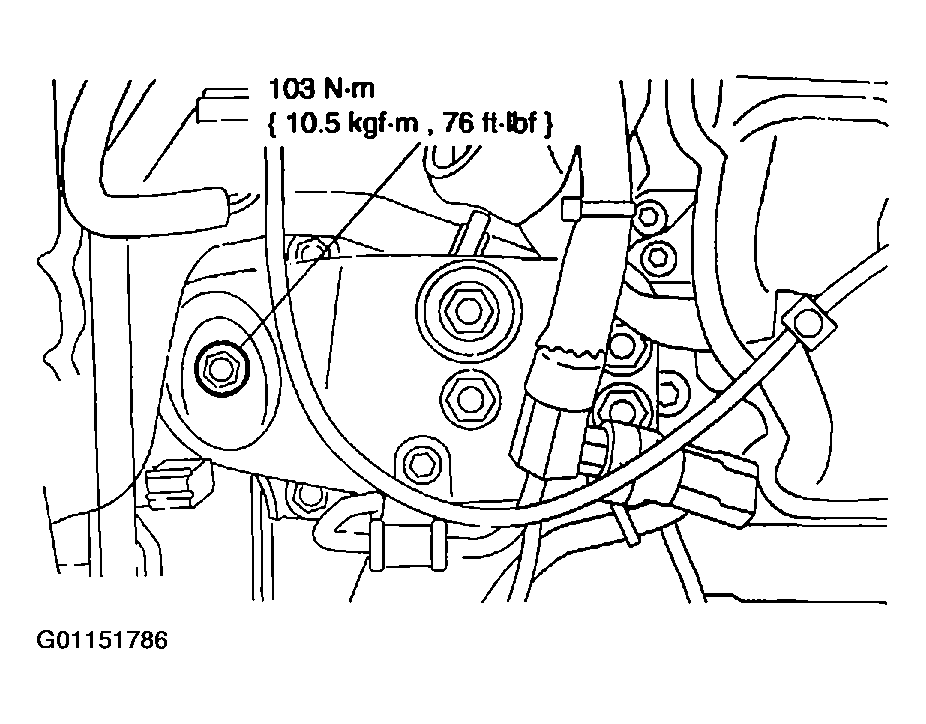

    Fig 4: Removing Engine Support Insulator Bolt
    G01151786Courtesy of MAZDA MOTORS CORP.
  5. Remove the engine support tool.
    1. Remove the nut.
    2. Remove the bolts and insulator.

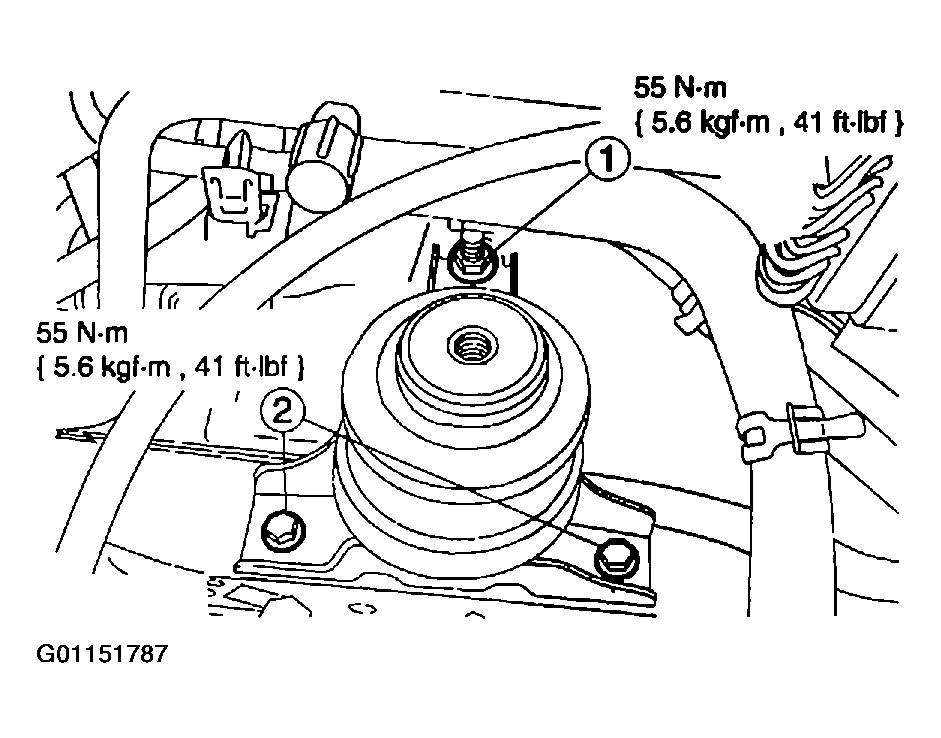

    Fig 5: Removing Engine Support
    G01151787Courtesy of MAZDA MOTORS CORP.
  6. To install, reverse the removal procedure.
