Upper Engine Components

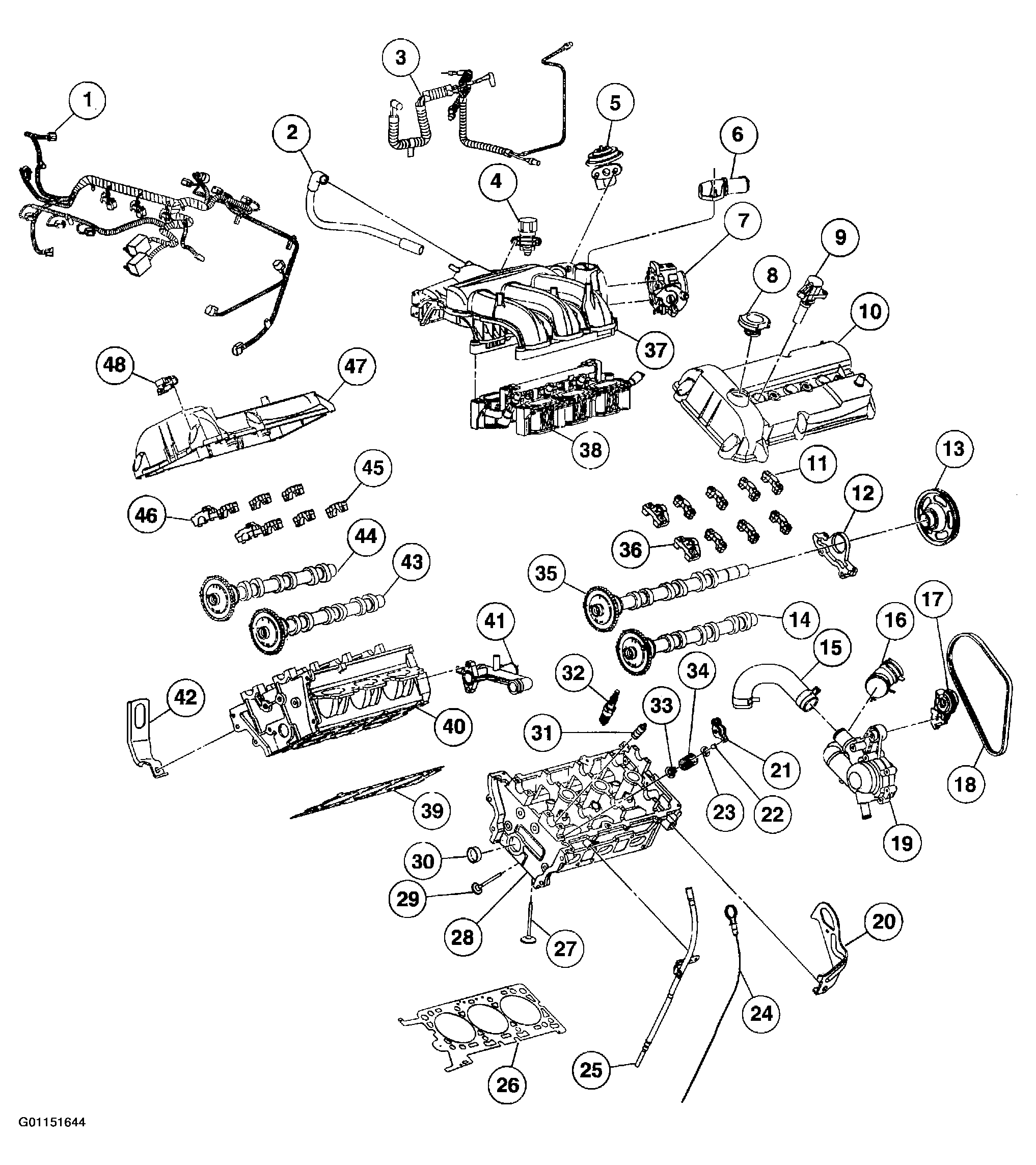

Fig 1: Identifying Upper Engine Components (1 Of 2)

G01151644

Courtesy of MAZDA MOTORS CORP.

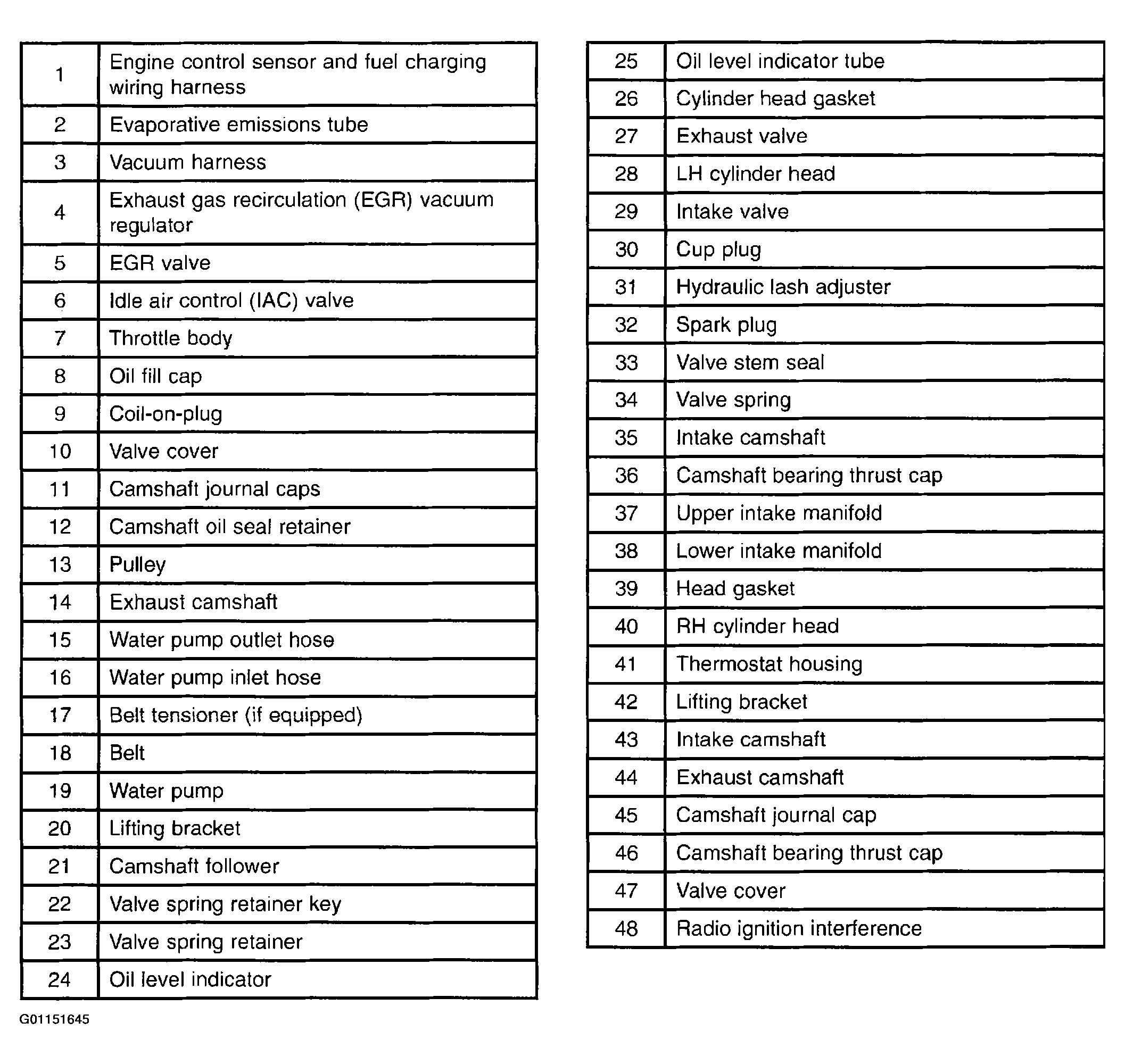

Fig 2: Identifying Upper Engine Components (2 Of 2)

G01151645

Courtesy of MAZDA MOTORS CORP.
