Lower Engine Components

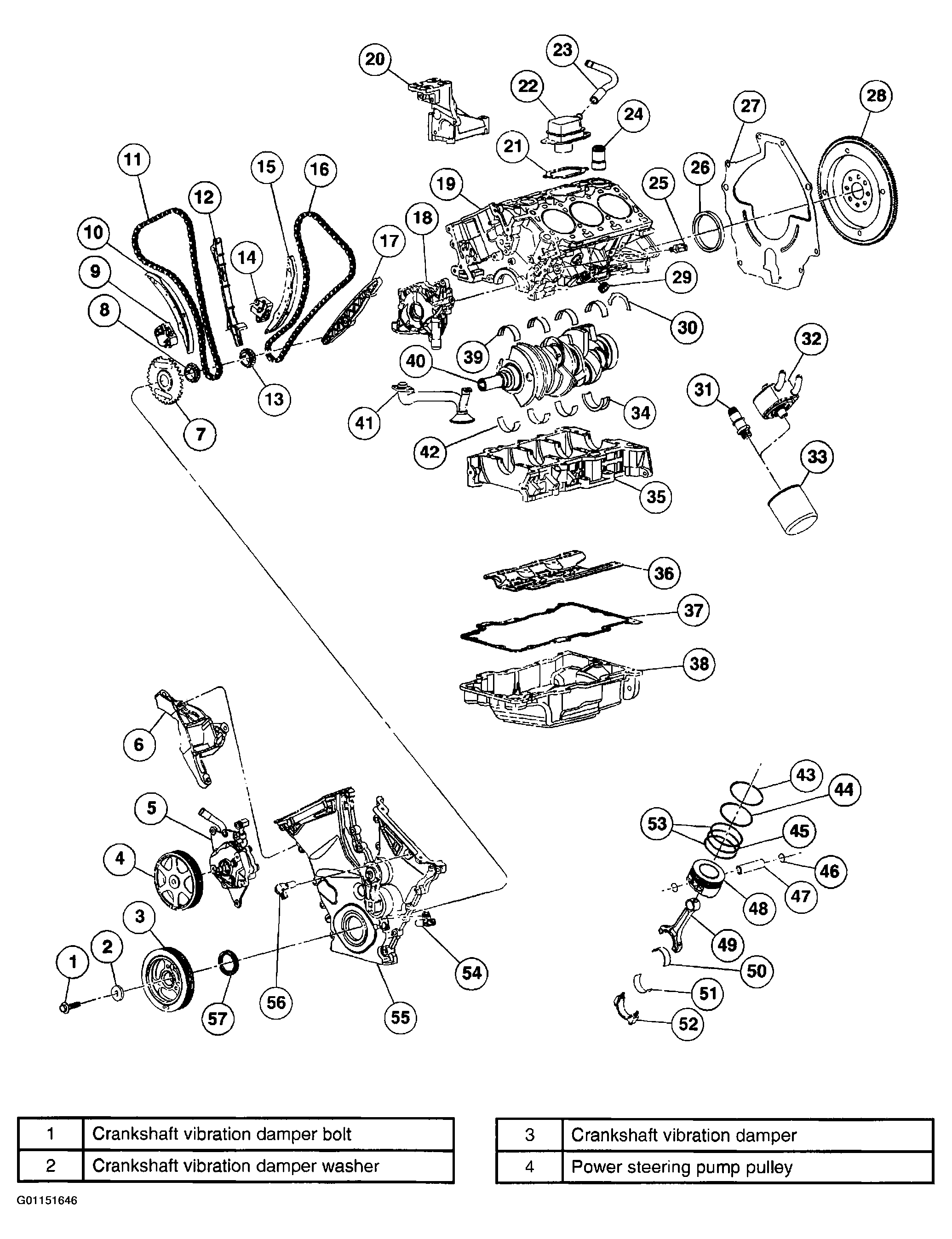

Fig 1: Identifying Lower Engine Components (1 Of 2)

G01151646

Courtesy of MAZDA MOTORS CORP.

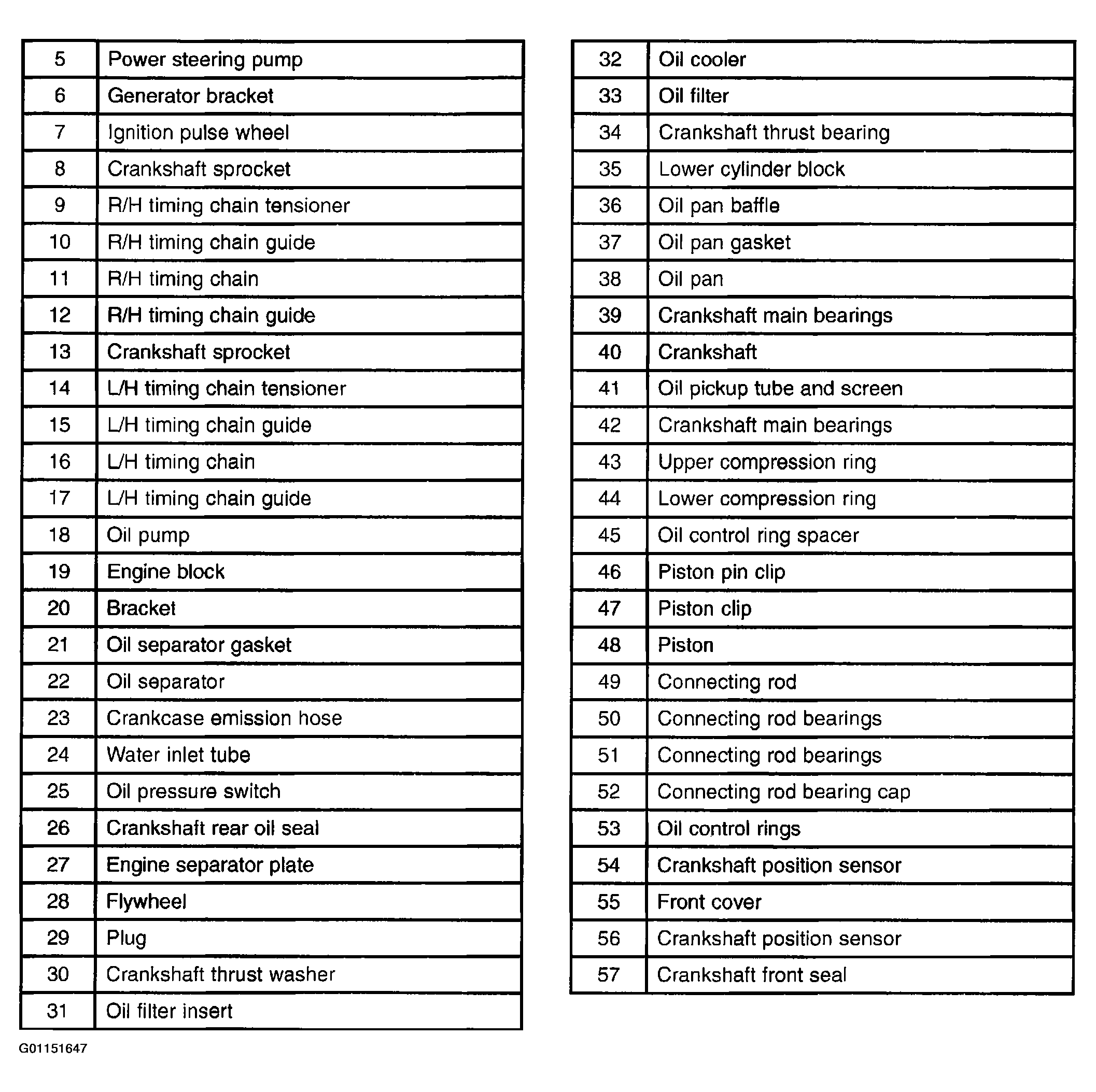

Fig 2: Identifying Lower Engine Components (2 Of 2)

G01151647

Courtesy of MAZDA MOTORS CORP.
