Cylinder Head: Disassembly

CAUTION: If the components are to be reinstalled, they must be installed in the same position. Mark the components removed for location.
  1. Using the special tool, remove the keys, retainer, and spring.

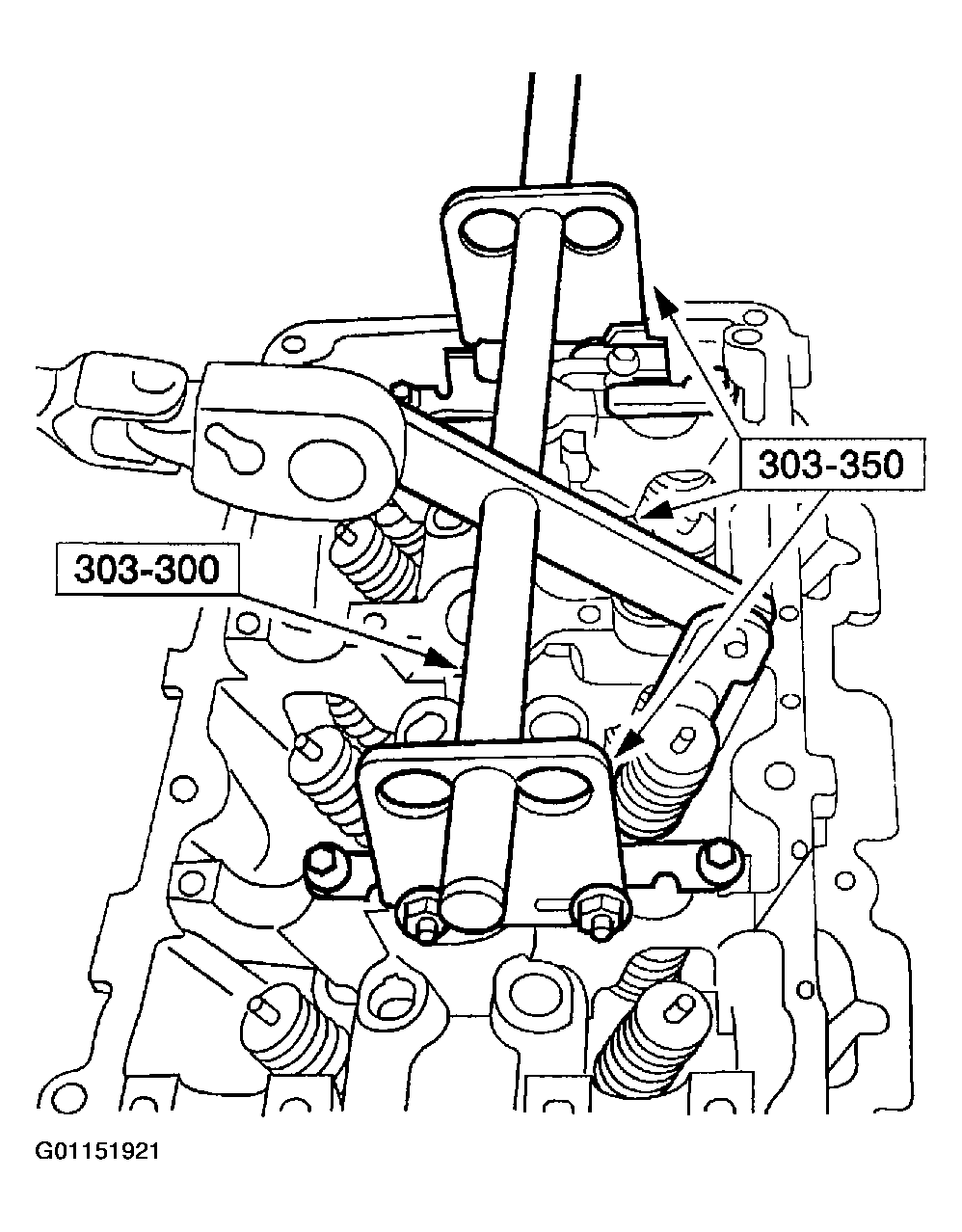

    Fig 1: Removing Keys, Retainer & Spring
    G01151921Courtesy of MAZDA MOTORS CORP.
  2. Remove the valve from the cylinder head.

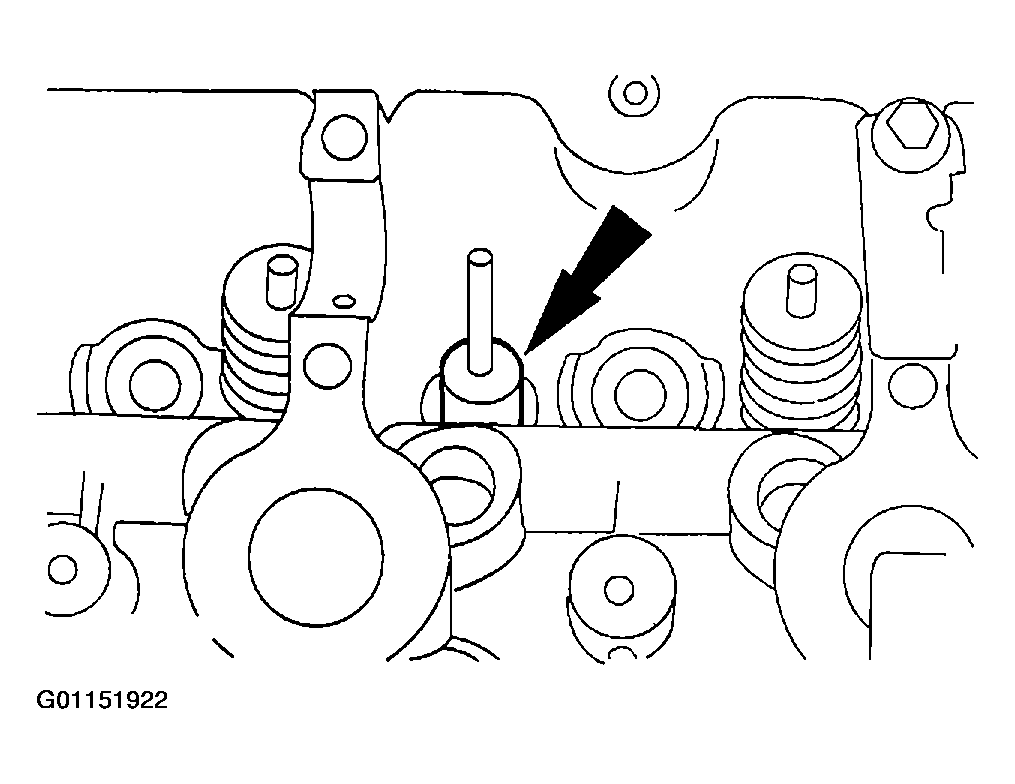

    Fig 2: Removing Valve
    G01151922Courtesy of MAZDA MOTORS CORP.
  3. Remove the valve stem seal.

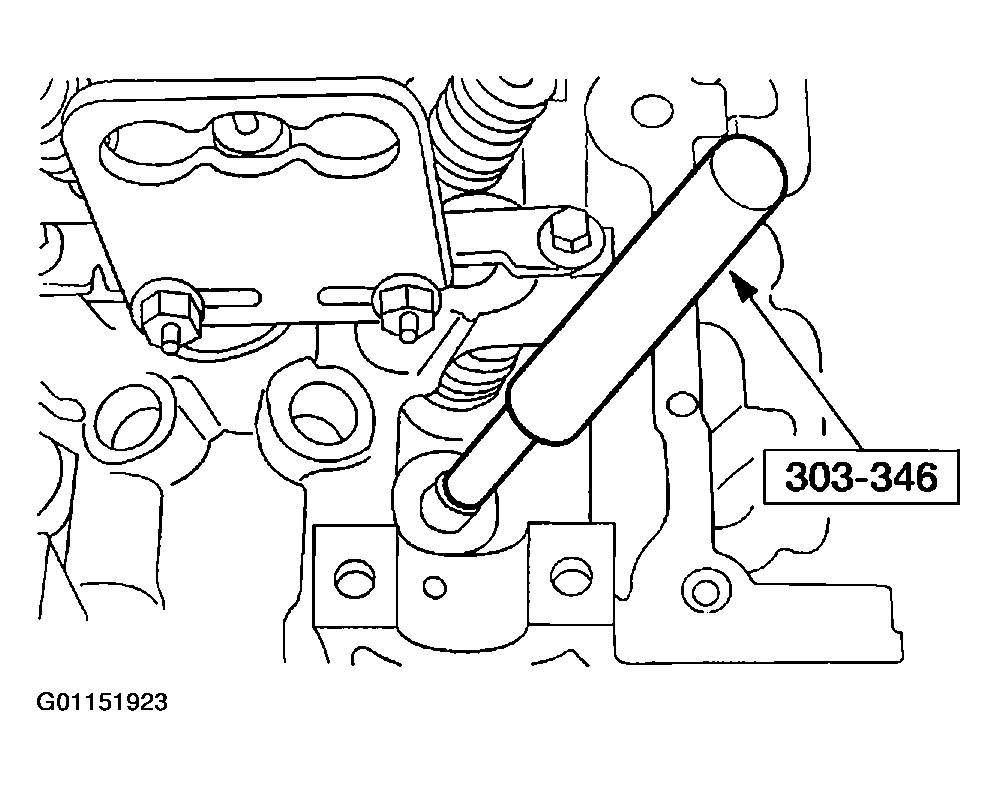

    Fig 3: Removing Valve Stem Seal
    G01151923Courtesy of MAZDA MOTORS CORP.
  4. Using the special tool, remove the valve guide from the cylinder head.
