Cylinder Head: Assembly

  1. Using the special tool, install the valve guide.

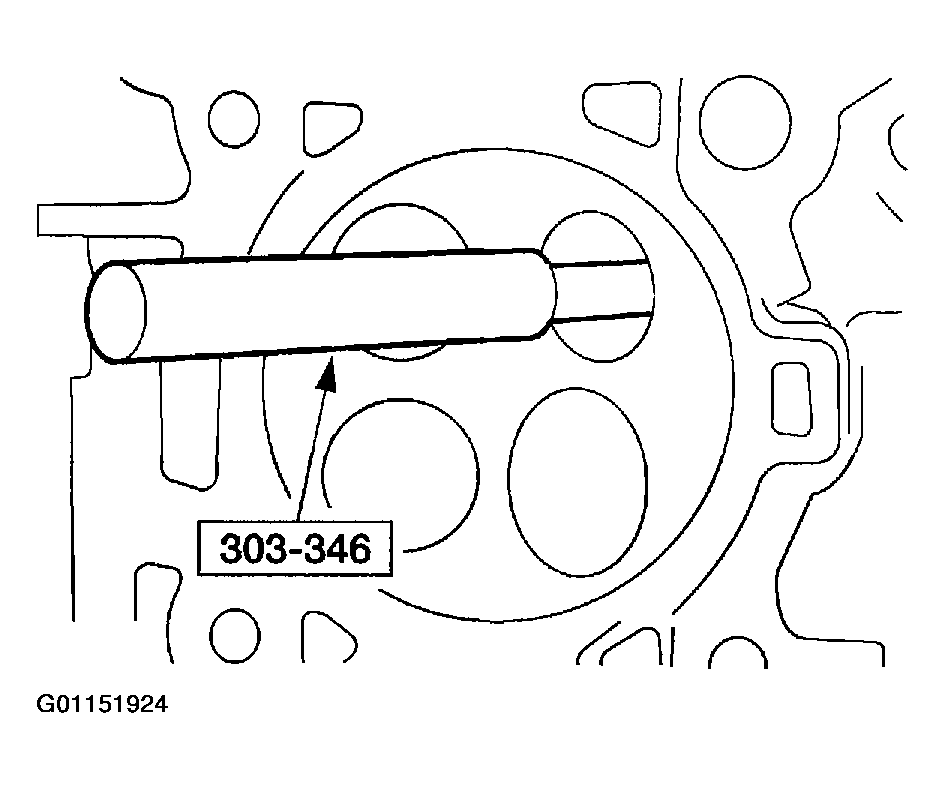

    Fig 1: Installing Valve Guide
    G01151924Courtesy of MAZDA MOTORS CORP.
  2. Using the special tool, install the valve stem seal.

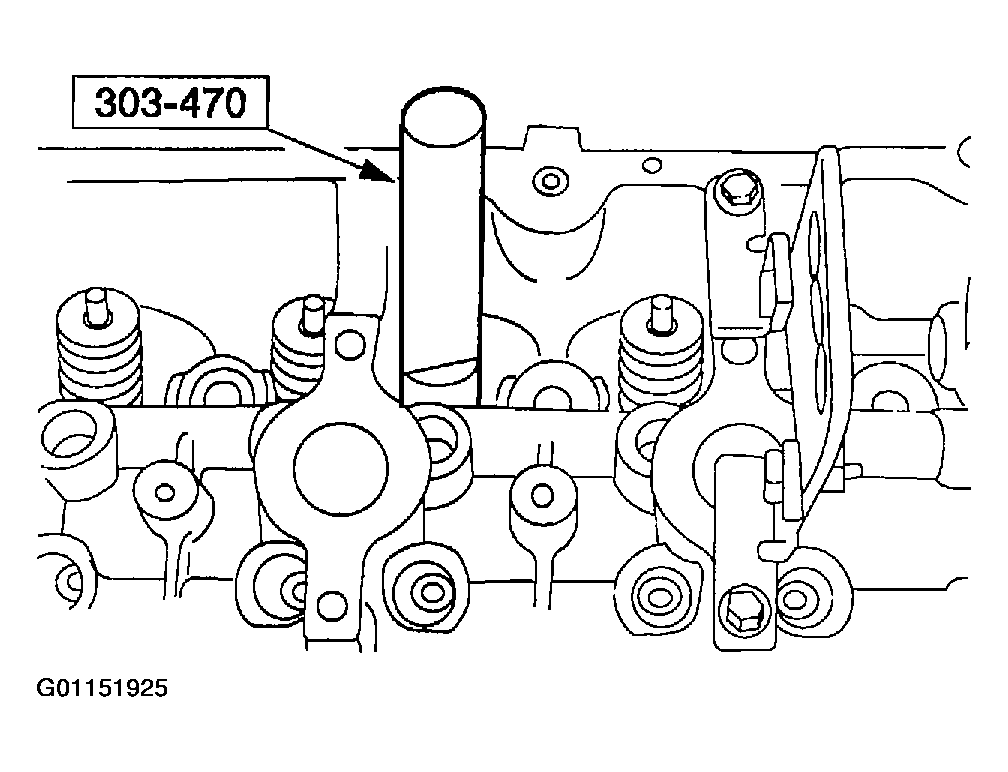

    Fig 2: Installing Valve Stem Seal
    G01151925Courtesy of MAZDA MOTORS CORP.
  3. Install the valve.

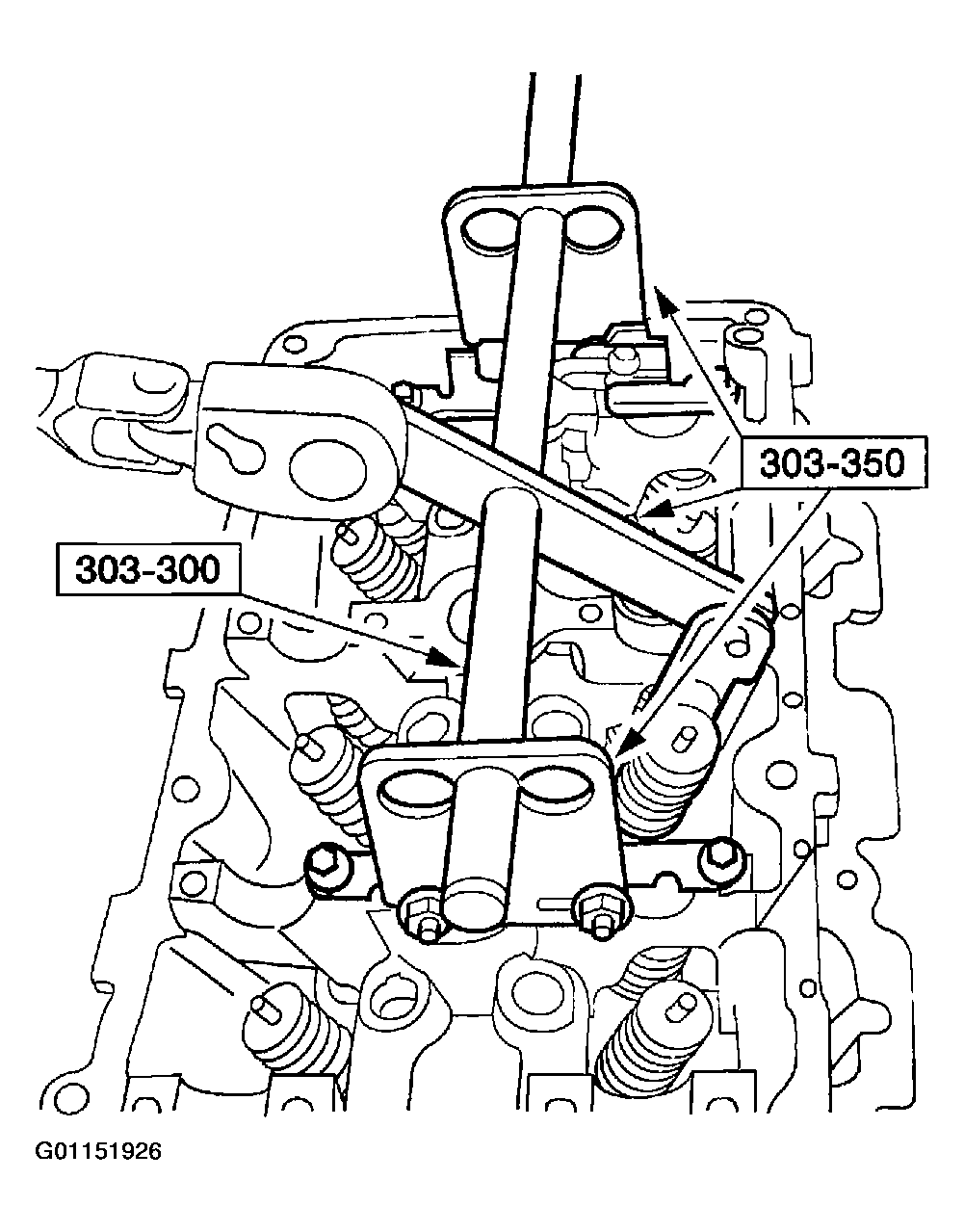

    Fig 3: Installing Valve
    G01151926Courtesy of MAZDA MOTORS CORP.
  4. Using the special tool, install the valve spring, retainer and key.
