Cylinder Head - RH: Installation

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of the head gasket. Clean all sealing surfaces with Metal Surface Cleaner.

NOTE: The cylinder head bolts must be replaced with new bolts. They are torque-to-yield designed and cannot be reused.

Position the RH cylinder head, gasket and install the bolts in the sequence shown.
- Tighten the bolts in six stages.
- Stage 1: Tighten to 40 N.m (4.1 kgf.m, 30 ft.lbf).
- Stage 2: Tighten bolts 90 degrees.
- Stage 3: Loosen one full turn.
- Stage 4: Tighten to 40 N.m (4.1 kgf.m , 30 ft.lbf).
- Stage 5: Tighten 90 degrees.
- Stage 6: Tighten 90 degrees.

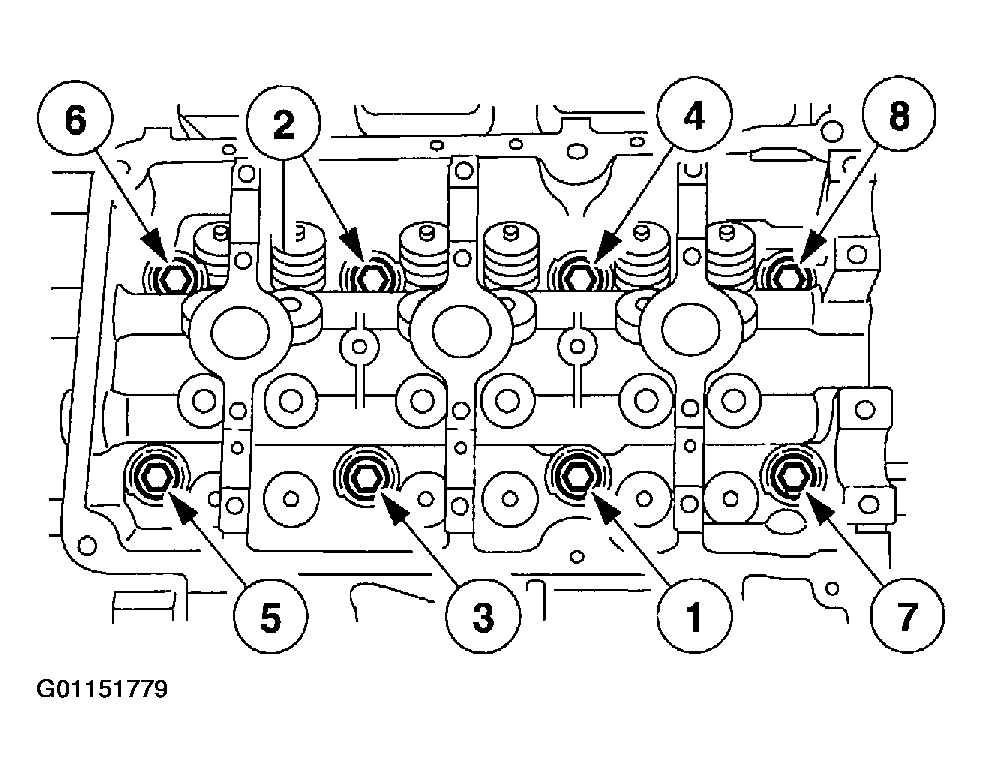

Fig 1: RH Cylinder Head Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Raise the vehicle.
Install RH exhaust manifold nuts in the sequence shown.

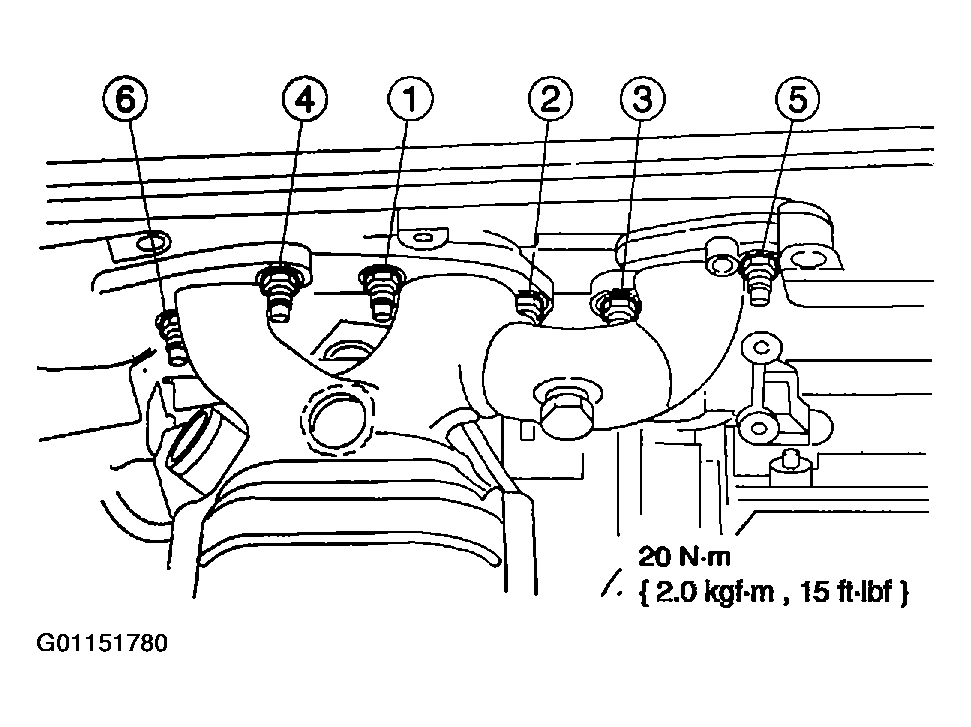

Fig 2: RH Exhaust Manifold Nut Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle.
Install the hydraulic lash adjusters.
- Lubricate the hydraulic lash adjusters with SAE 5W-20 motor oil.

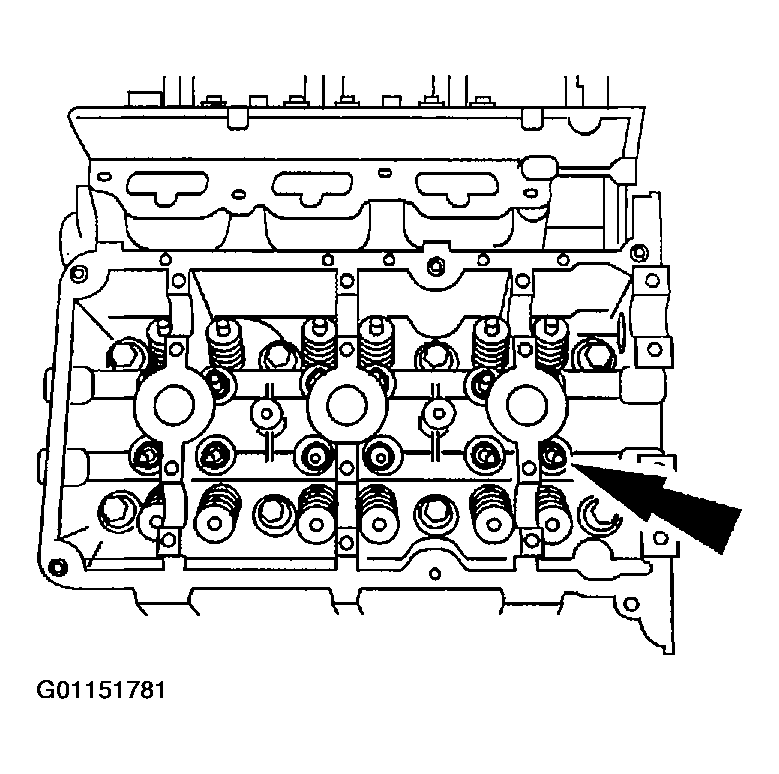

  Fig 3: Installing Hydraulic Lash Adjusters
  Courtesy of MAZDA MOTORS CORP.
Install the camshaft followers.
- Lubricate the camshaft followers with SAE 5W-20 motor oil.

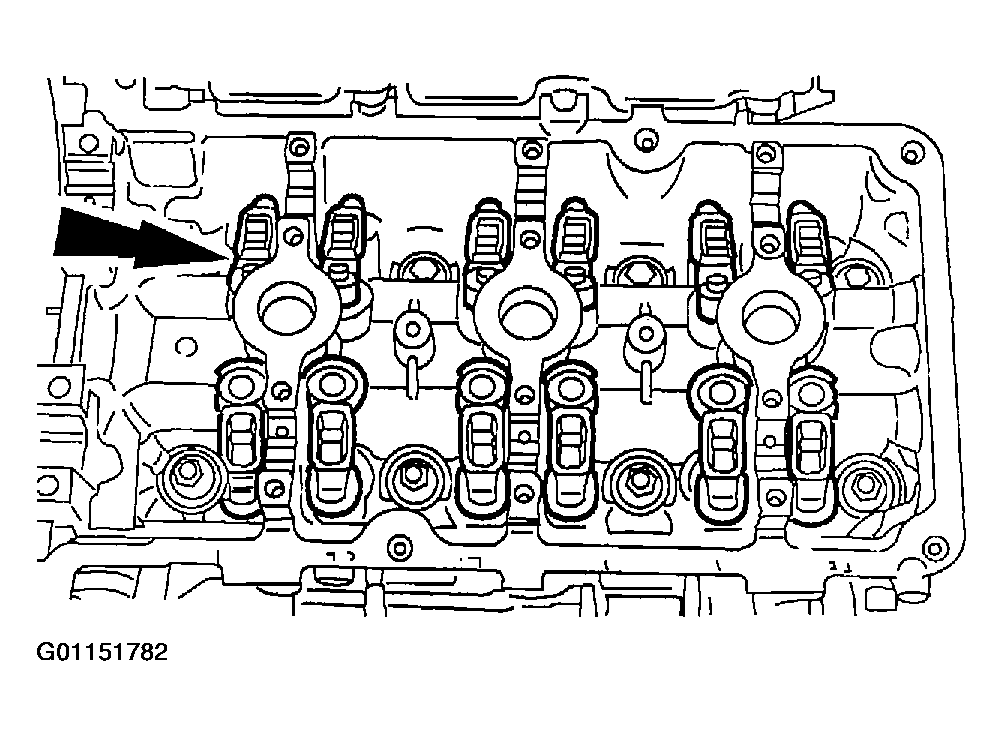

Fig 4: Installing Camshaft Followers
Courtesy of MAZDA MOTORS CORP.
Install the RH camshafts. Refer to CAMSHAFTS - RH .
Install the coolant bypass tube. Refer to BYPASS TUBE .
Install the Exhaust Gas Recirculation (EGR) tube. Refer to EXHAUST MANIFOLD TO EXHAUST GAS RECIRCULATION (EGR) VALVE TUBE .
Install the lower intake manifold. Refer to LOWER INTAKE MANIFOLD .
