Cylinder Head - LH: Installation

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of the head gasket. Clean all sealing surfaces with Metal Surface Cleaner.

NOTE: The cylinder head bolts must be replaced with new bolts. They are torque-to-yield designed and cannot be reused.

Position the LH cylinder head, gasket and install the bolts in the sequence shown.
1. Tighten the bolts in six stages.
2. Stage 1: Tighten to 40 Nm (30 lb-ft).
3. Stage 2: Tighten bolts 90 degrees.
4. Stage 3: Loosen one full turn.
5. Stage 4: Tighten to 40 Nm (30 lb-ft).
6. Stage 5: Tighten 90 degrees.
7. Stage 6: Tighten 90 degrees.

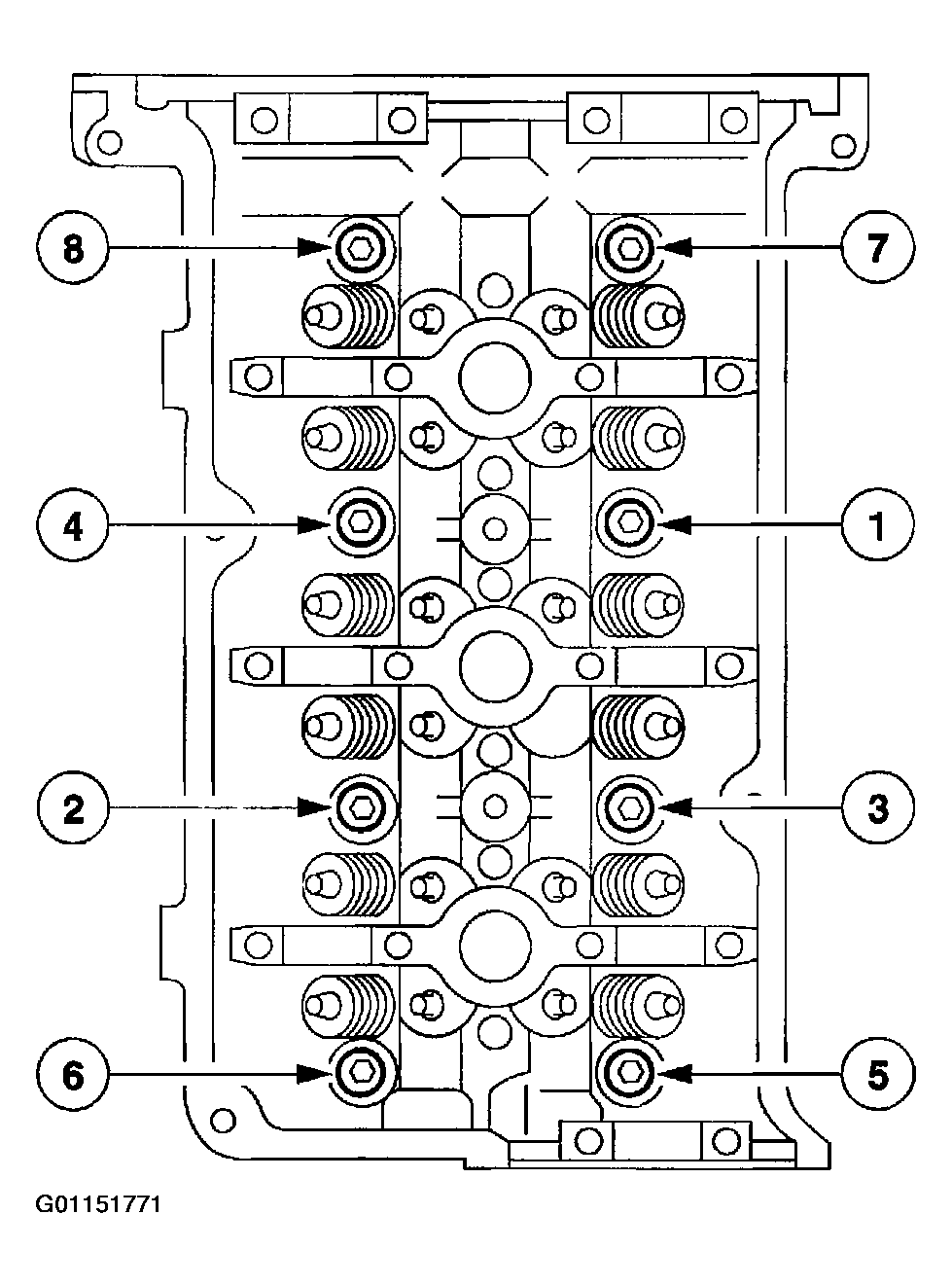

Fig 1: LH Cylinder Head Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Install the water pump. Refer to WATER PUMP .
Raise the vehicle.
Install the LH exhaust manifold. Refer to EXHAUST MANIFOLD - LH .
Install the oil level indicator tube nut.

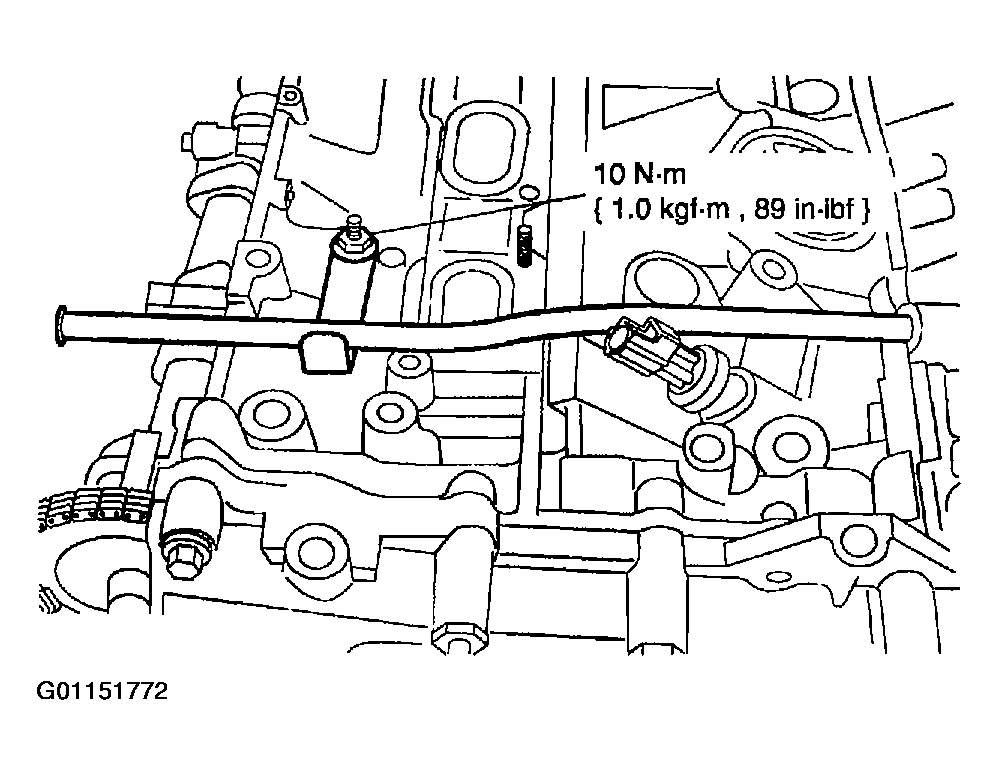

Fig 2: Installing Oil Level Indicator Tube Nut
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle.
Install the hydraulic lash adjusters.
1. Lubricate the hydraulic lash adjusters with SAE 5W-20 motor oil.

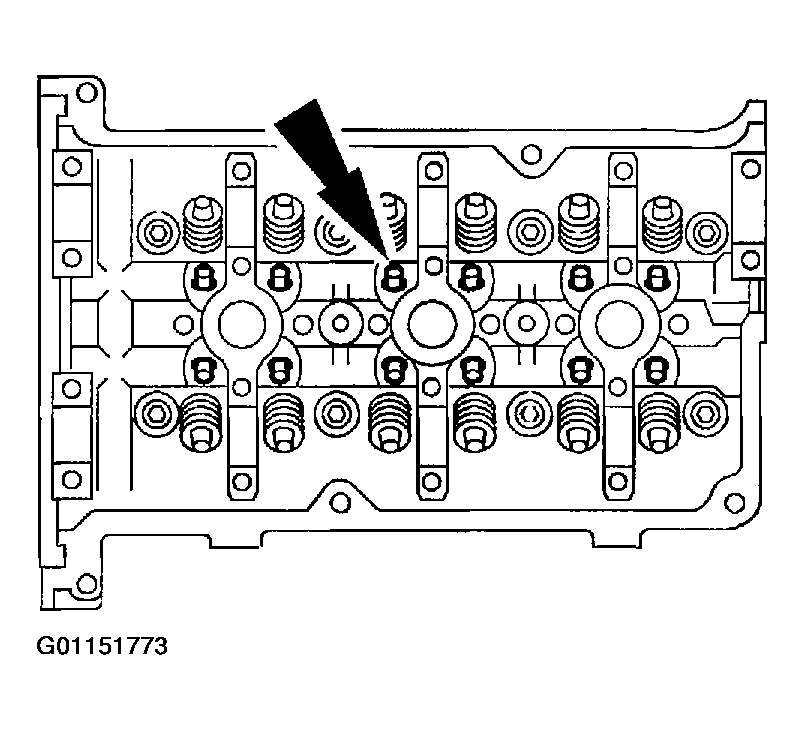

  Fig 3: Installing Hydraulic Lash Adjusters
  Courtesy of MAZDA MOTORS CORP.
Install the camshaft followers.
1. Lubricate the camshaft followers with SAE 5W-20 motor oil.

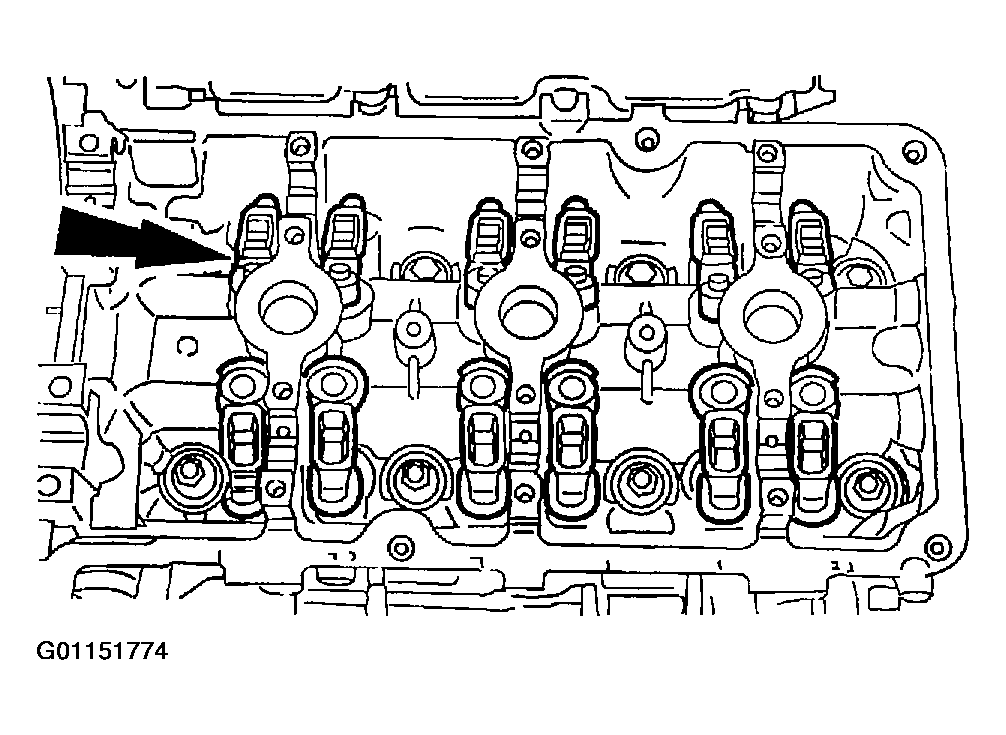

Fig 4: Installing Camshaft Followers
Courtesy of MAZDA MOTORS CORP.
Install the LH camshafts. Refer to CAMSHAFTS - LH .
Install the coolant bypass tube. Refer to BYPASS TUBE .
Install the lower intake manifold. Refer to LOWER INTAKE MANIFOLD .
