Crankshaft Pulley: Removal

  1. Remove the accessory drive belt. Refer to ACCESSORY DRIVE BELT .
  2. Remove the RH front splash shield.

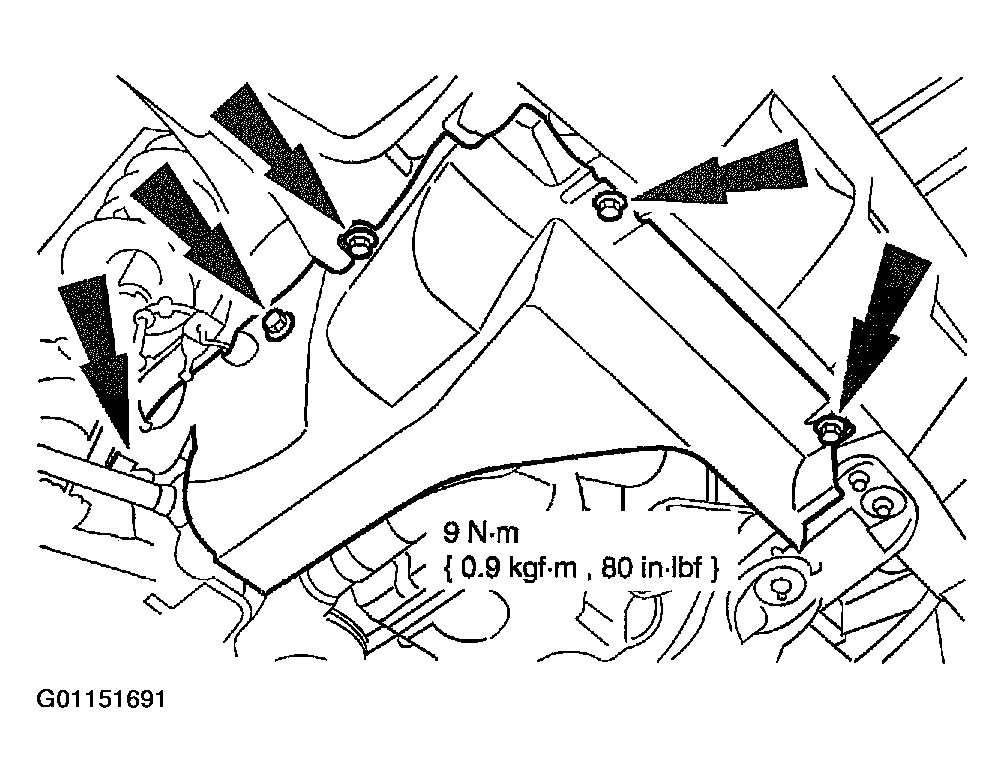

    Fig 1: Removing RH Front Splash Shield
    G01151691Courtesy of MAZDA MOTORS CORP.
  3. Using the special tool, remove the crankshaft pulley bolt and washer.

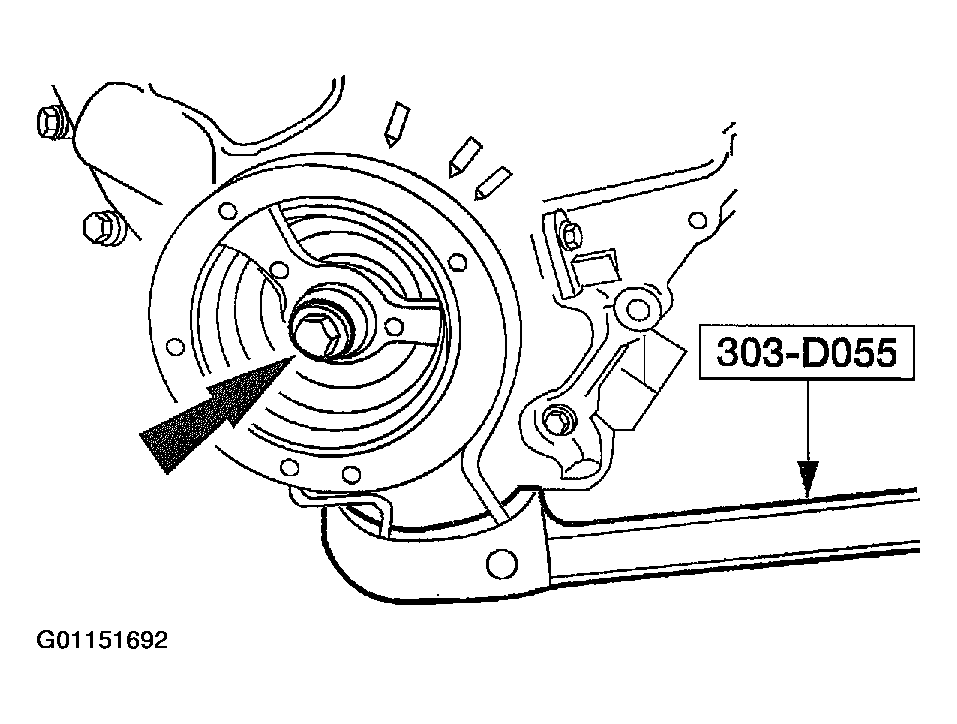

    Fig 2: Removing Crankshaft Pulley Bolt & Washer
    G01151692Courtesy of MAZDA MOTORS CORP.
  4. Using the damper tool, remove the crankshaft pulley.

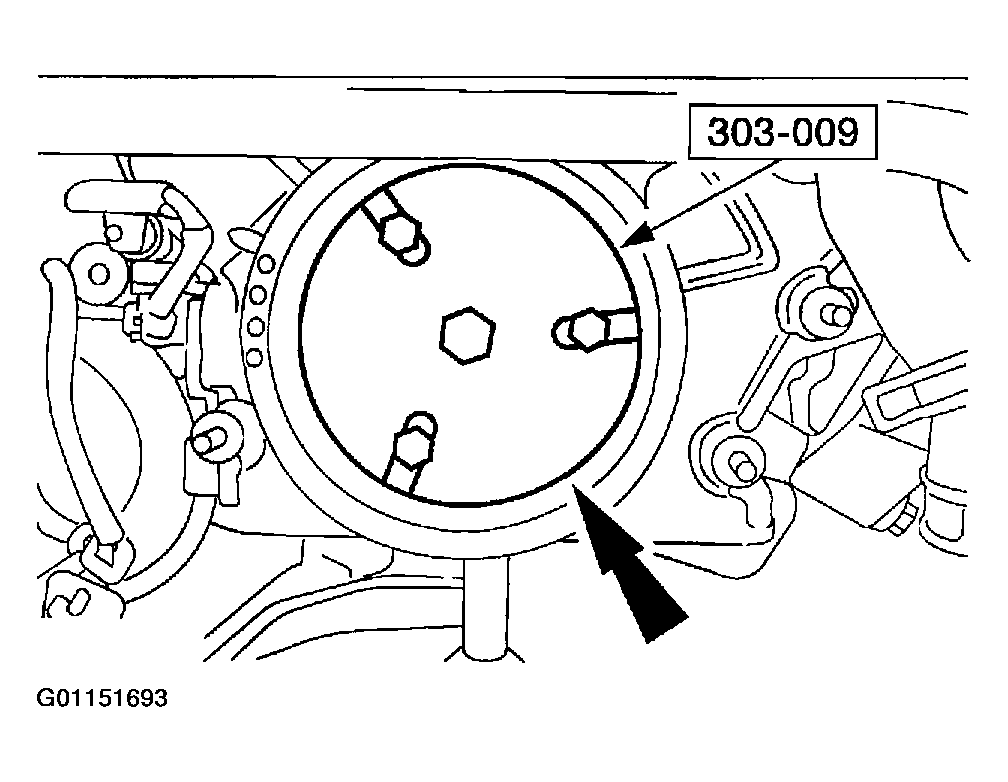

    Fig 3: Removing Crankshaft Pulley
    G01151693Courtesy of MAZDA MOTORS CORP.
