Crankshaft Pulley: Installation

NOTE: Seal surfaces must be free of dirt and oil.

Apply silicone gasket and sealant to the end of the keyway slot.

Fig 1: Applying Silicone Gasket & Sealant To Keyway Slot
Courtesy of MAZDA MOTORS CORP.

NOTE: Lubricate the outside diameter sealing surface of the crankshaft pulley with SAE 5W-20 Motor Oil.

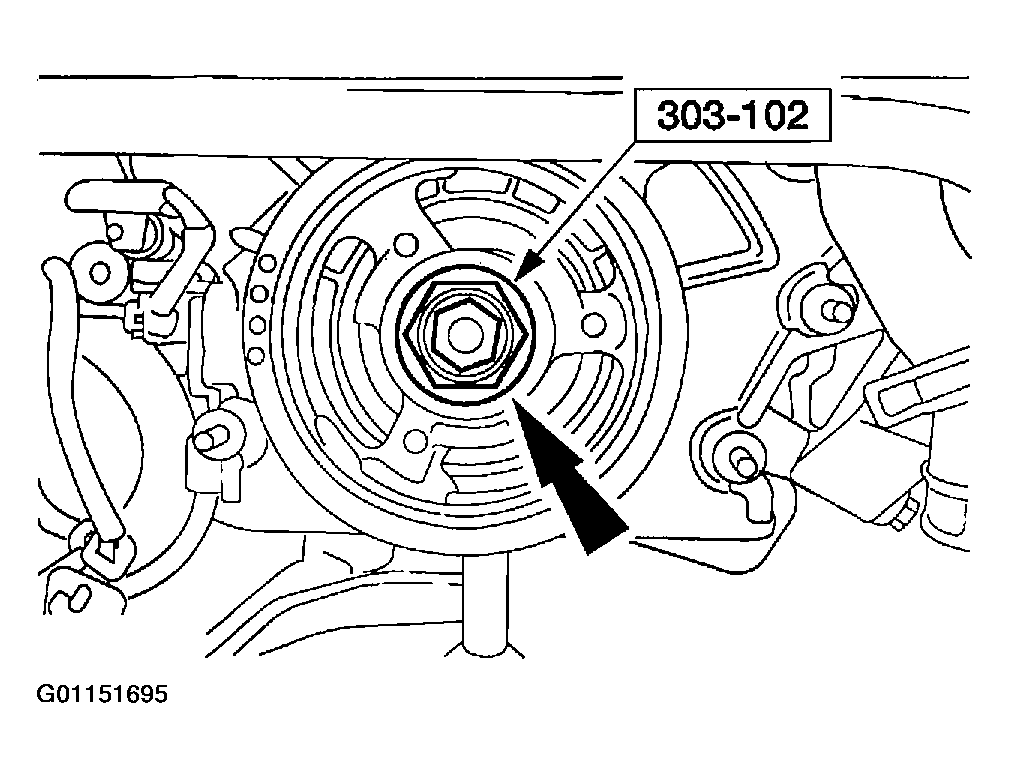

Fig 2: Installing Crankshaft Pulley

Courtesy of MAZDA MOTORS CORP.

Using the special tool, install the crankshaft pulley.
Install the bolt and the washer and tighten in four stages.
- Stage 1: Tighten to 120 N.m (12.2 kgf.m , 86 ft.lbf).
- Stage 2: Loosen 360 degrees.
- Stage 3: Tighten to 50 N.m (5.1 kgf.m, 37 ft.lbf).
- Stage 4: Tighten an additional 90 degrees.

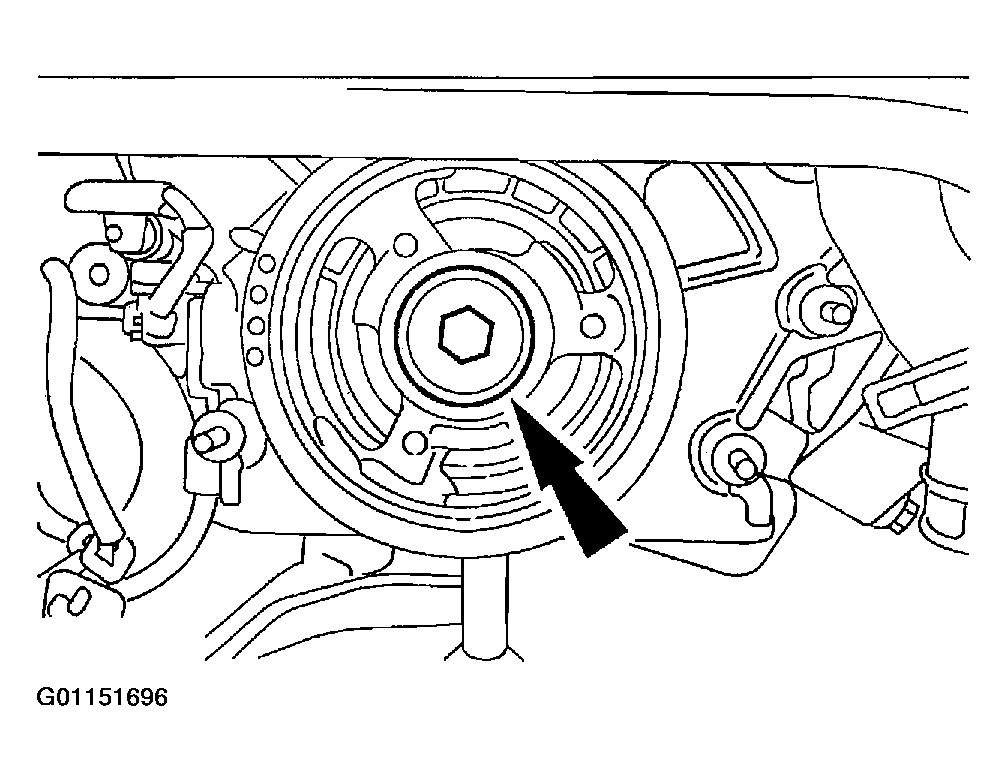

  Fig 3: Installing Crankshaft Pulley
  Courtesy of MAZDA MOTORS CORP.
Install the splash shield.

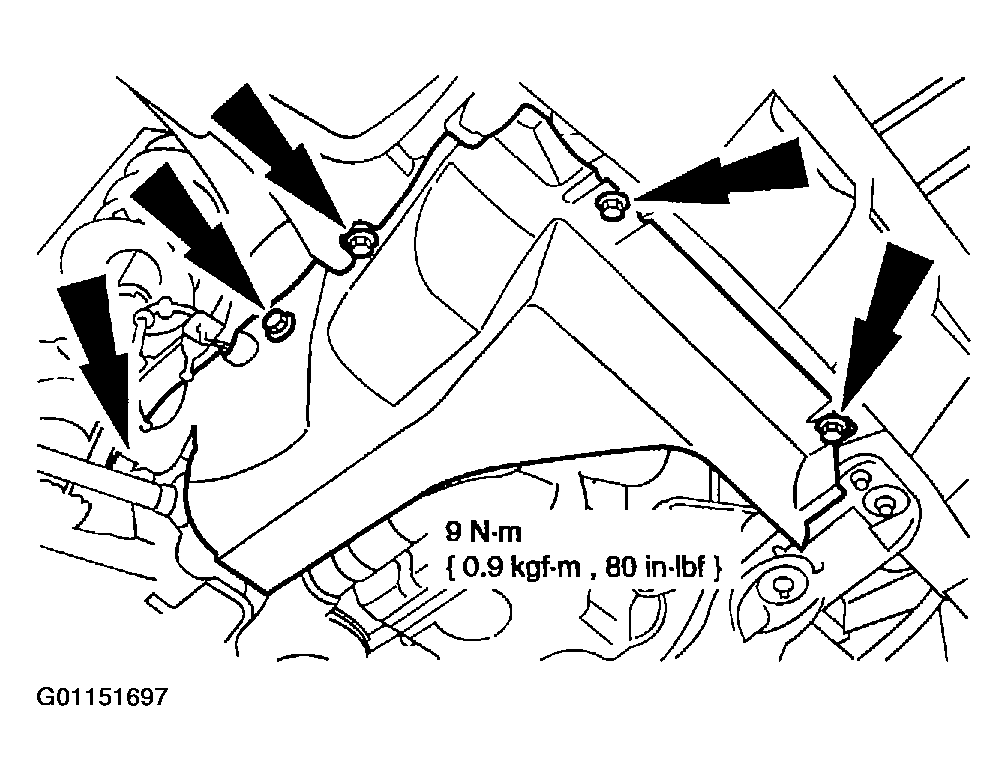

Fig 4: Installing Splash Shield
Courtesy of MAZDA MOTORS CORP.
Install the accessory drive belt. Refer to ACCESSORY DRIVE BELT .
