Crankshaft Front Oil Seal: Installation

  1. Using the special tool, install the crankshaft front oil seal.

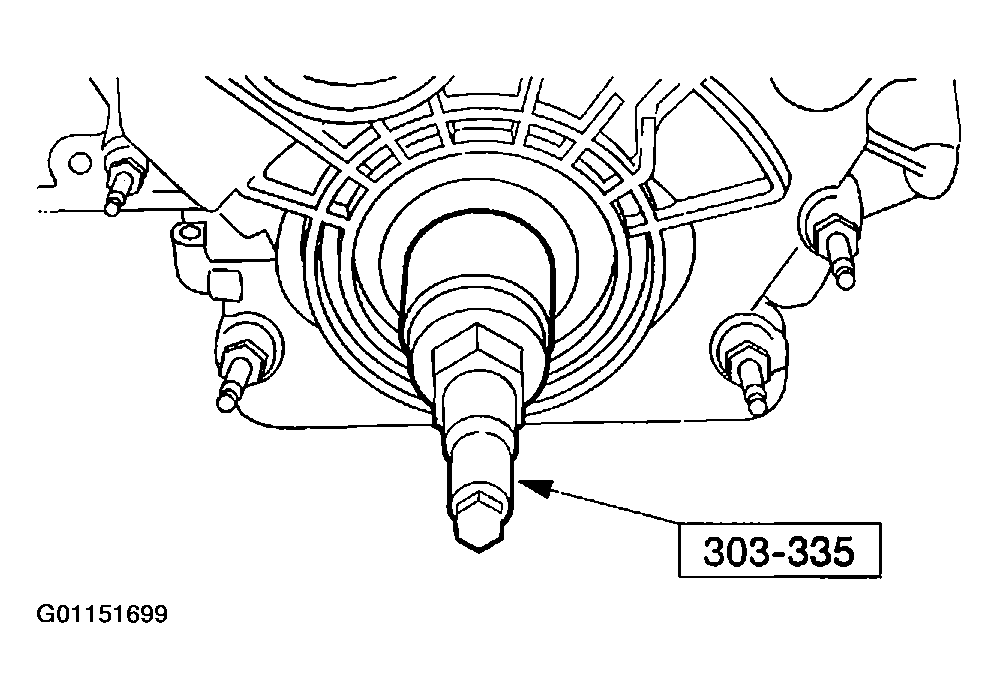

    Fig 1: Installing Crankshaft Front Oil Seal
    G01151699Courtesy of MAZDA MOTORS CORP.
  2. Install the crankshaft pulley. Refer to CRANKSHAFT PULLEY .
