Camshafts - RH: Removal

  1. Remove the timing drive components. Refer to TIMING DRIVE COMPONENTS .
    2. CAUTION: Cylinder head camshaft journal caps and cylinder heads are numbered to verify that they are assembled in their original positions.

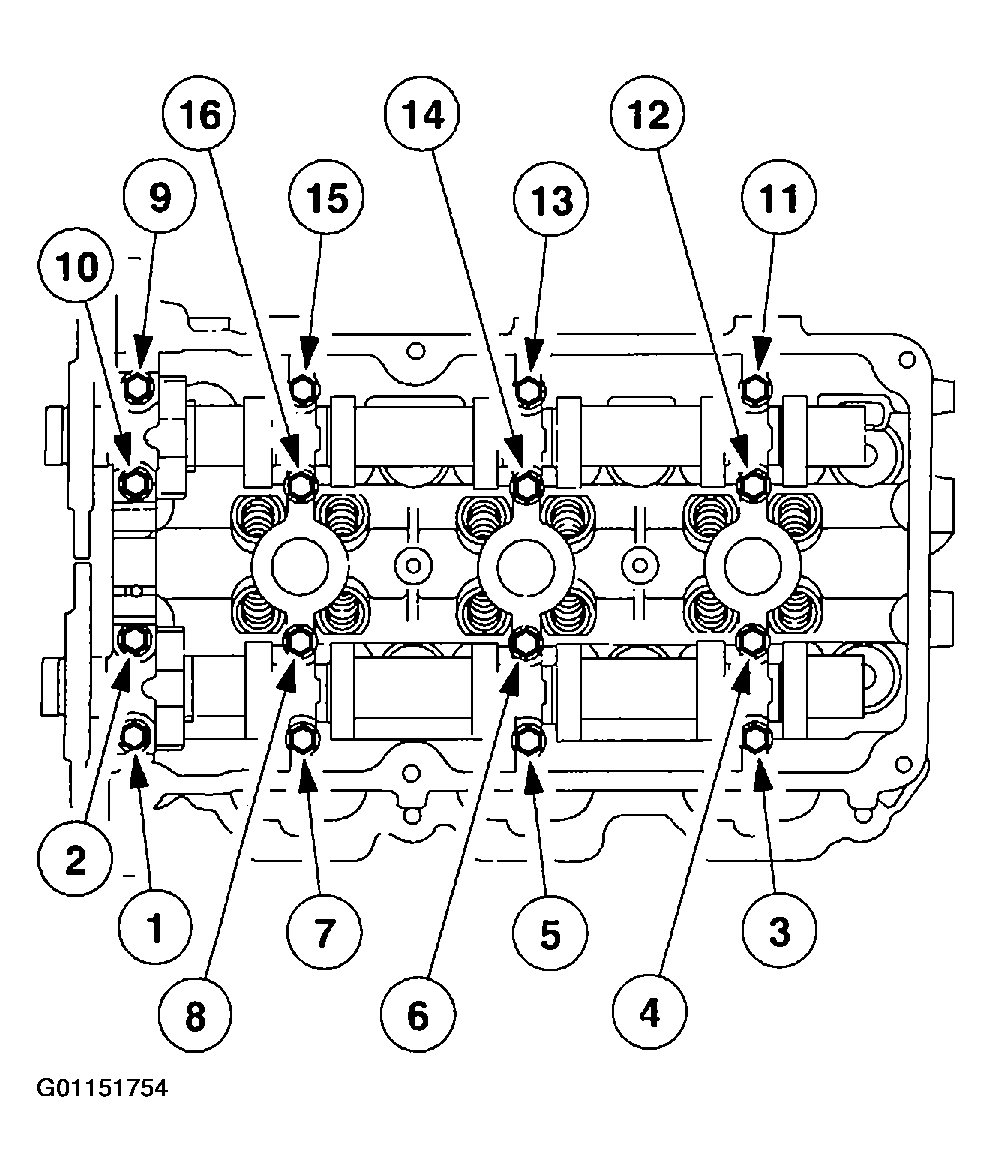

    Fig 1: RH Camshaft Cap Bolt Loosening Sequence
    G01151754Courtesy of MAZDA MOTORS CORP.
  2. Loosen the RH camshaft cap bolts in sequence to allow the camshafts to rise from the cylinder head and remove the caps.
  3. Remove the camshafts.

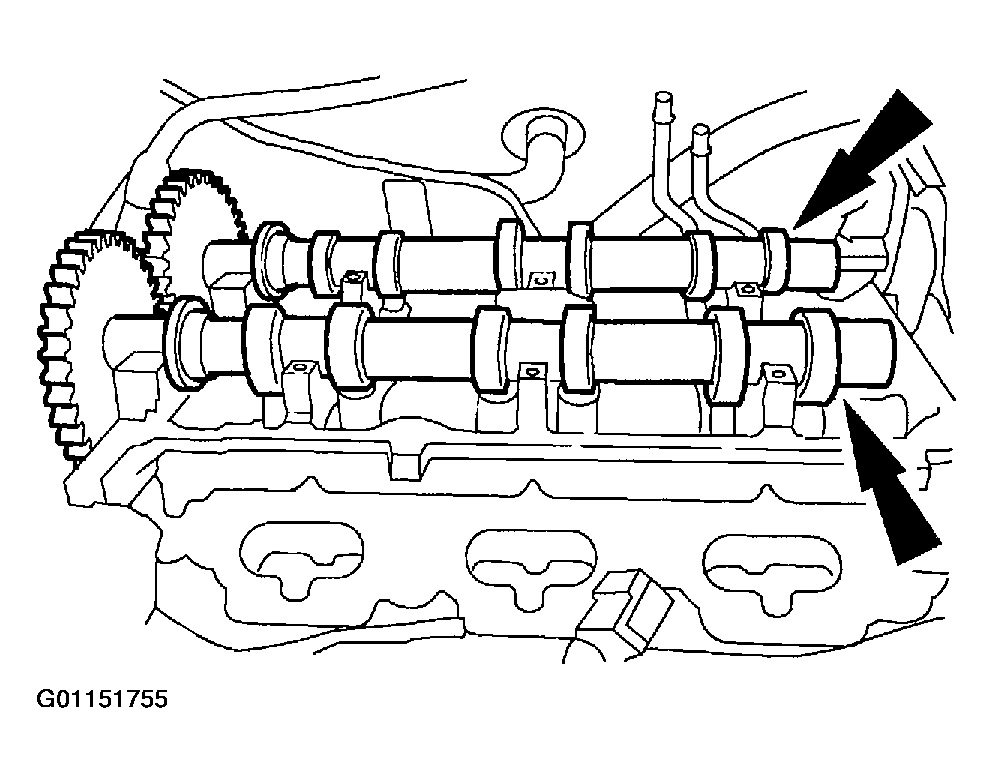

    Fig 2: Removing Camshafts
    G01151755Courtesy of MAZDA MOTORS CORP.
