Removal & Installation

  1. Drain the cooling system.
  2. Raise the vehicle.
  3. Disconnect the block heater power cable from the block heater.

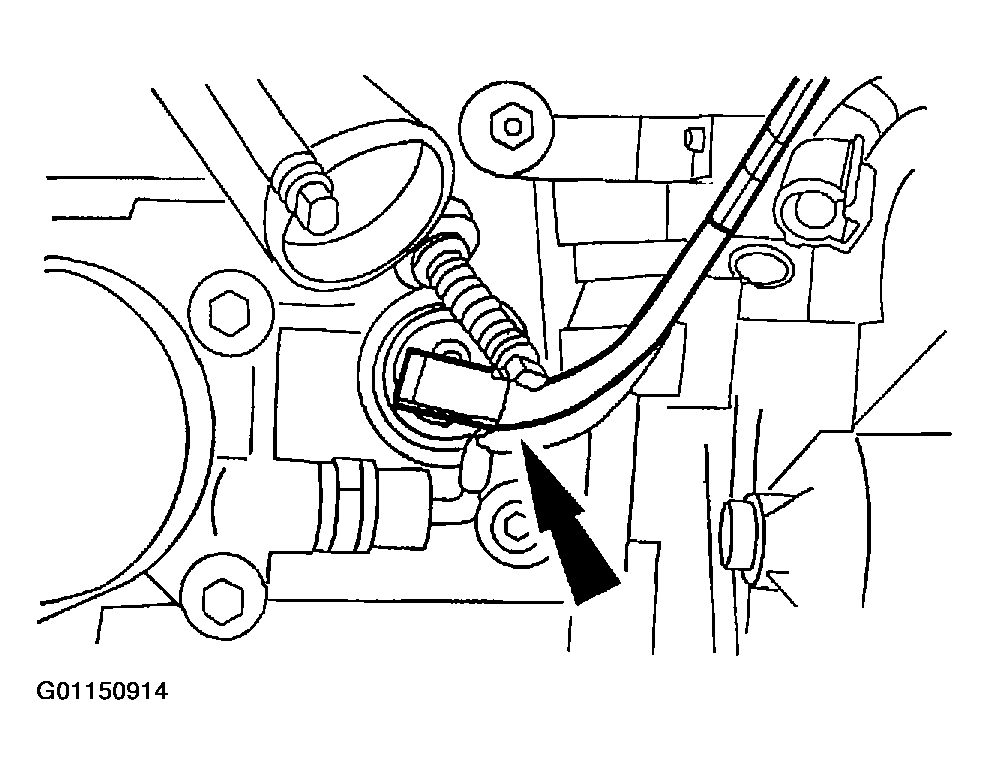

    Fig 1: Disconnecting Block Heater Power Cable
    G01150914Courtesy of MAZDA MOTORS CORP.
    4. CAUTION: Do not loosen the block heater retaining screw more than necessary for removal.

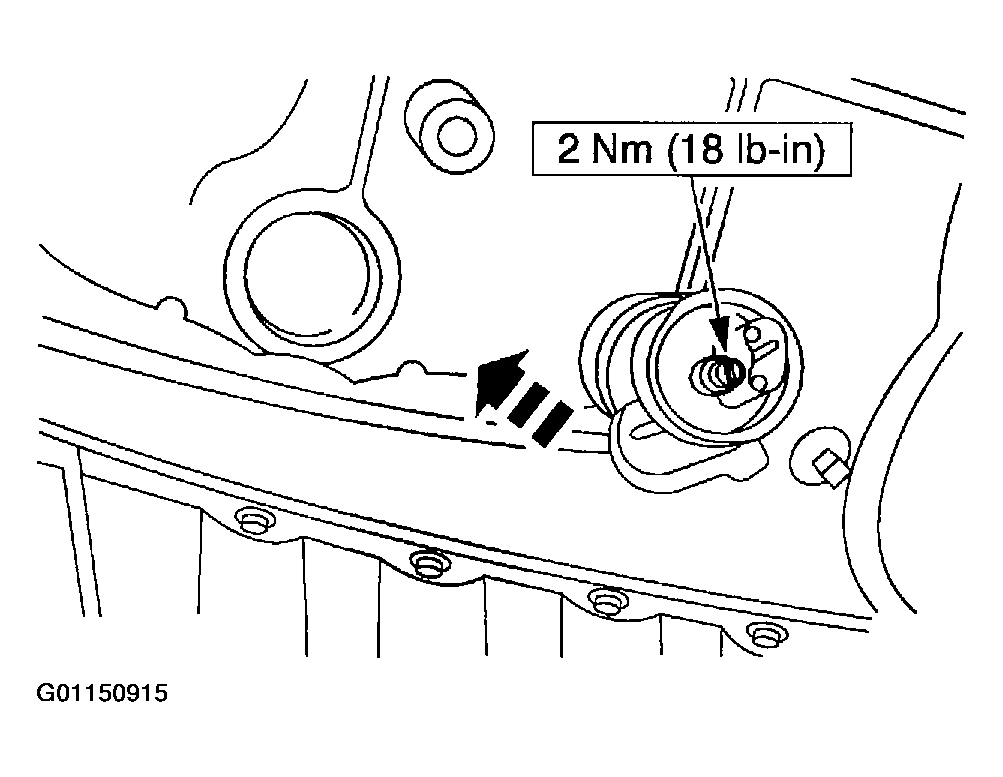

    Fig 2: Removing Block Heater
    G01150915Courtesy of MAZDA MOTORS CORP.
  4. Remove the block heater.
    5. CAUTION: Make sure the power cable is routed and secured away from rotating or hot components or damage to the cable may occur.
  5. To install, reverse the removal procedure.
