Removal & Installation

NOTE: If equipped with belt tensioner.
  1. Remove the water pump belt. Refer to WATER PUMP BELT - 3.0L DURATEC (4V) WITH TENSIONER .
  2. Remove the bolt and the belt tensioner.

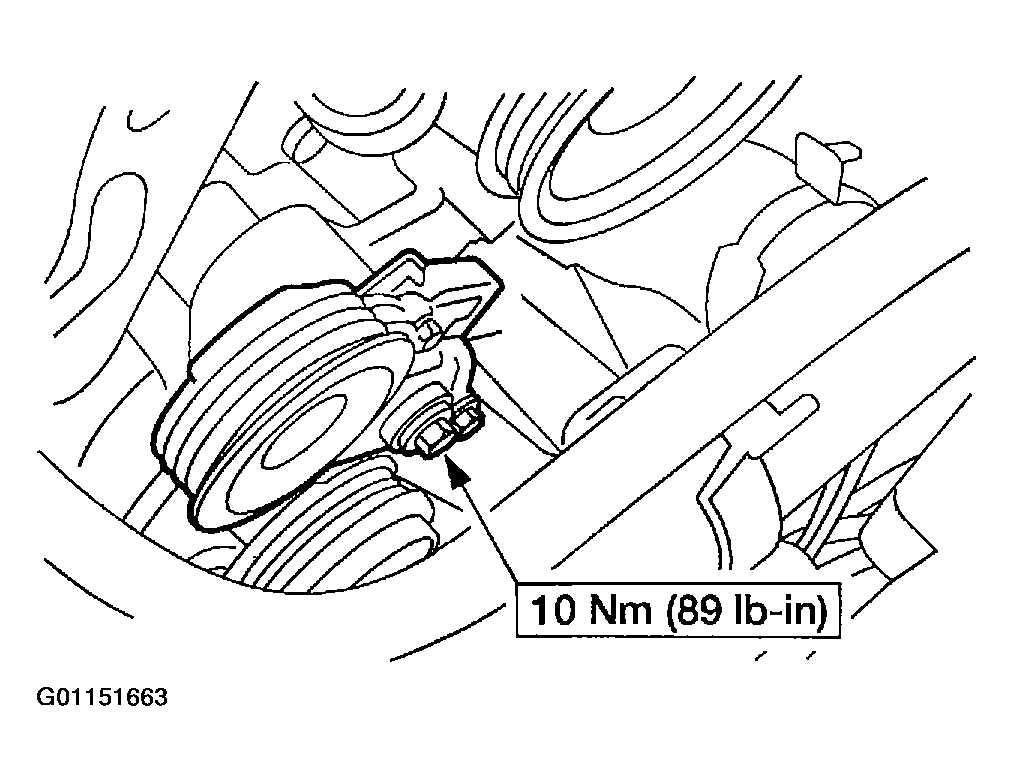

    Fig 1: Removing Belt Tensioner
    G01151663Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
