3.0 (4V) With A/C

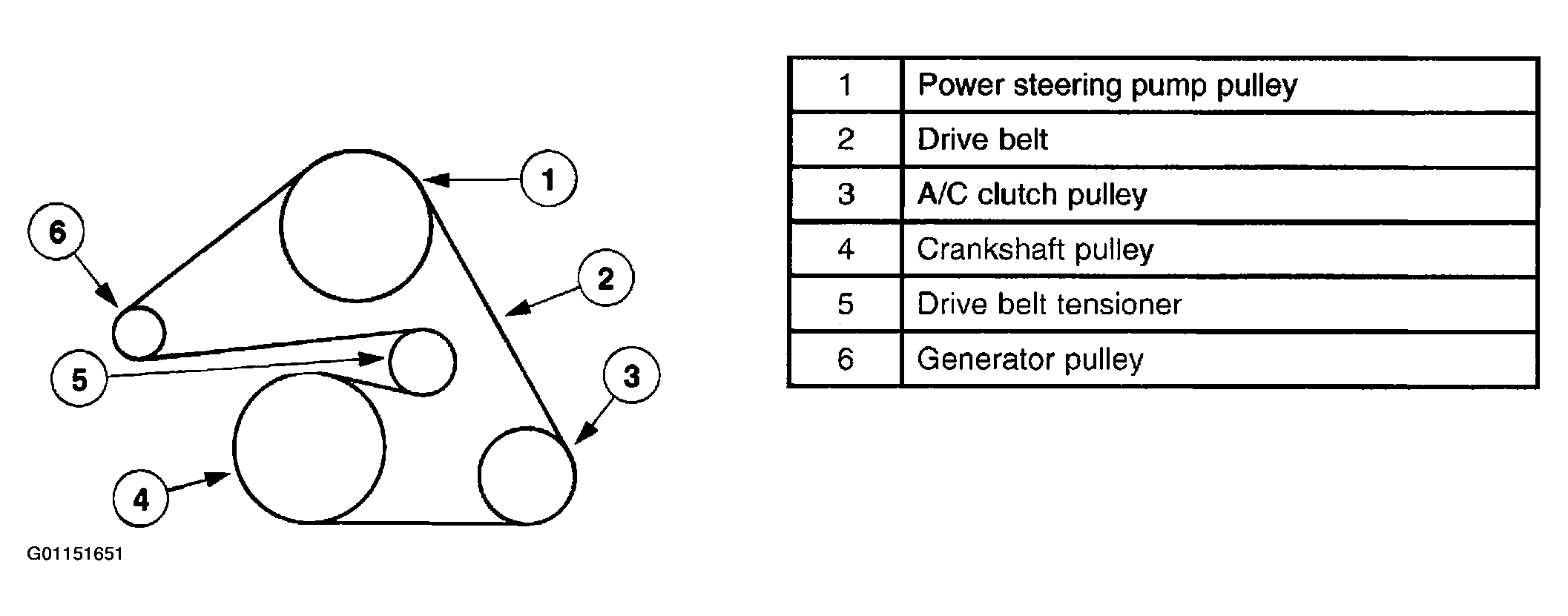

Fig 1: Accessory Drive Routing - 3.0 (4V) With A/C

G01151651

Courtesy of MAZDA MOTORS CORP.
