Removal & Installation

  1. Remove the right front wheel and tire.
  2. Remove the bolts and the right front lower splash shield.

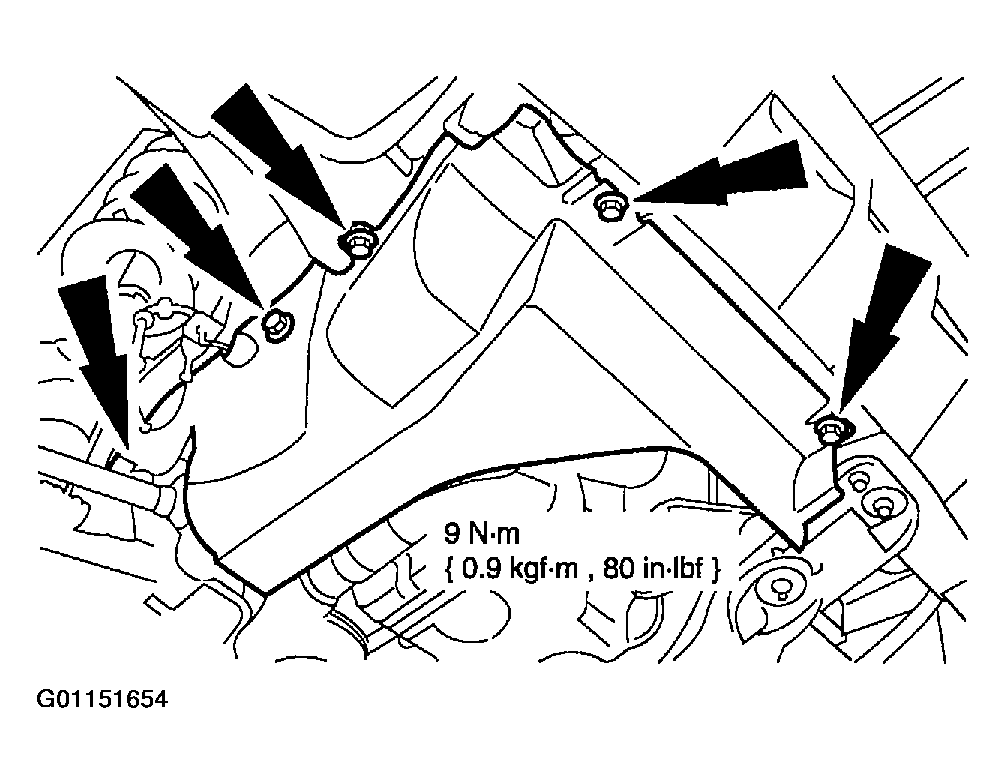

    Fig 1: Removing Right Front Lower Splash Shield
    G01151654Courtesy of MAZDA MOTORS CORP.
  3. Rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt.

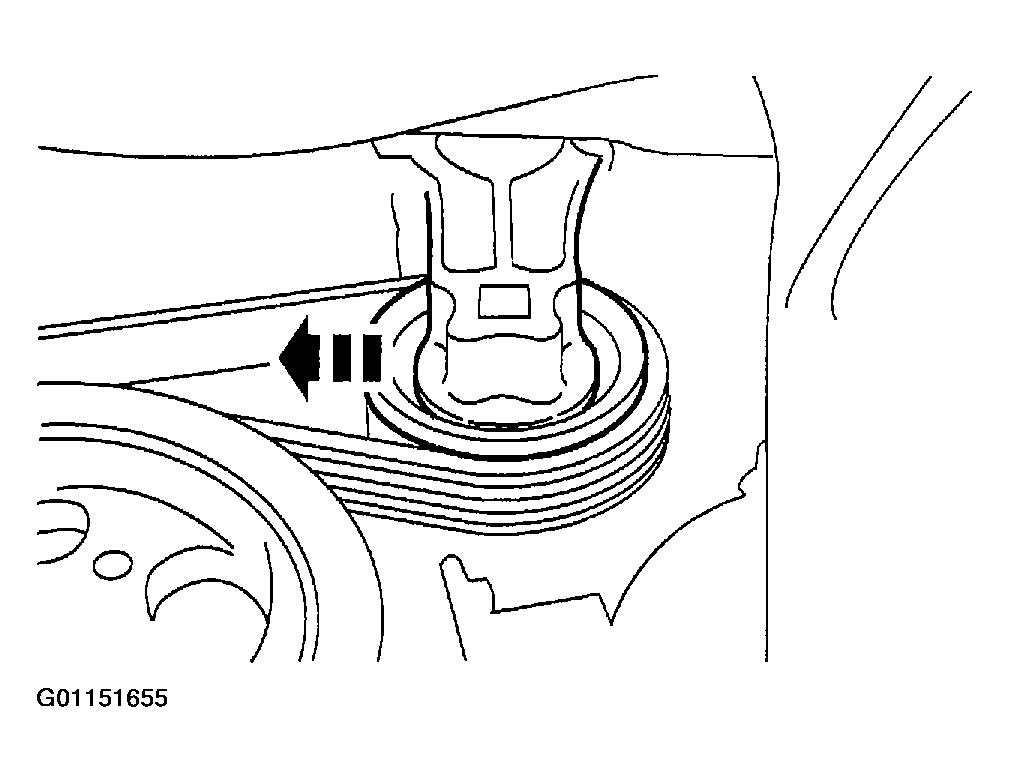

    Fig 2: Rotating Accessory Drive Belt Tensioner Clockwise
    G01151655Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
