Component Location

For cooling fan and related component locations, see Fig 1 and Fig 2 .

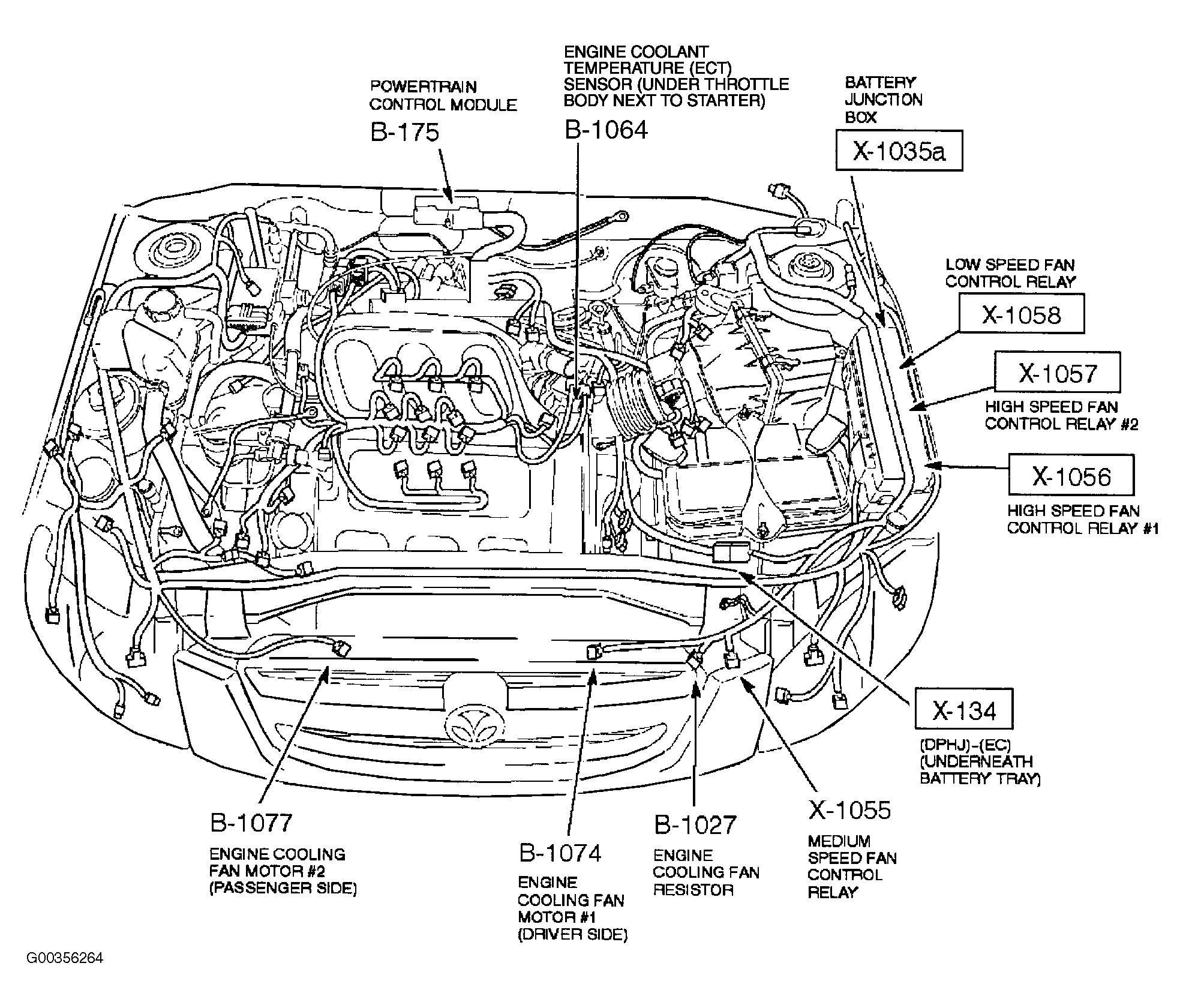

Fig 1: Locating Cooling Fan Components/Connectors (2.0L)
G00356263Courtesy of MAZDA MOTORS CORP.

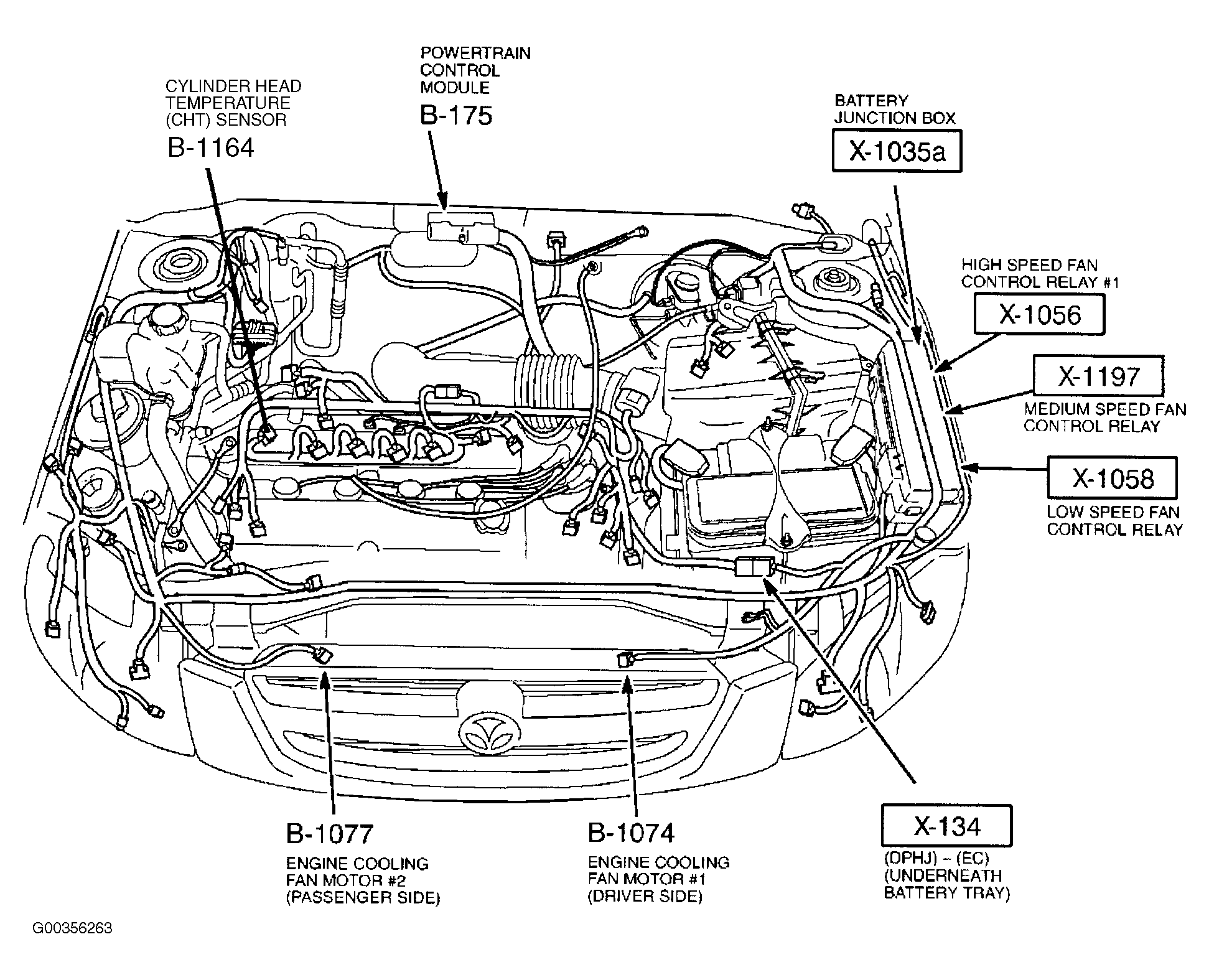

Fig 2: Locating Cooling Fan Components/Connectors (3.0L)
G00356264Courtesy of MAZDA MOTORS CORP.
