Pinpoint Test 9: The Speed Control Indicator Is Never On

CAUTION:

• Use the correct probe adapter (s) when making measurements. Failure to use the correct probe adapter (s) may damage the connector.

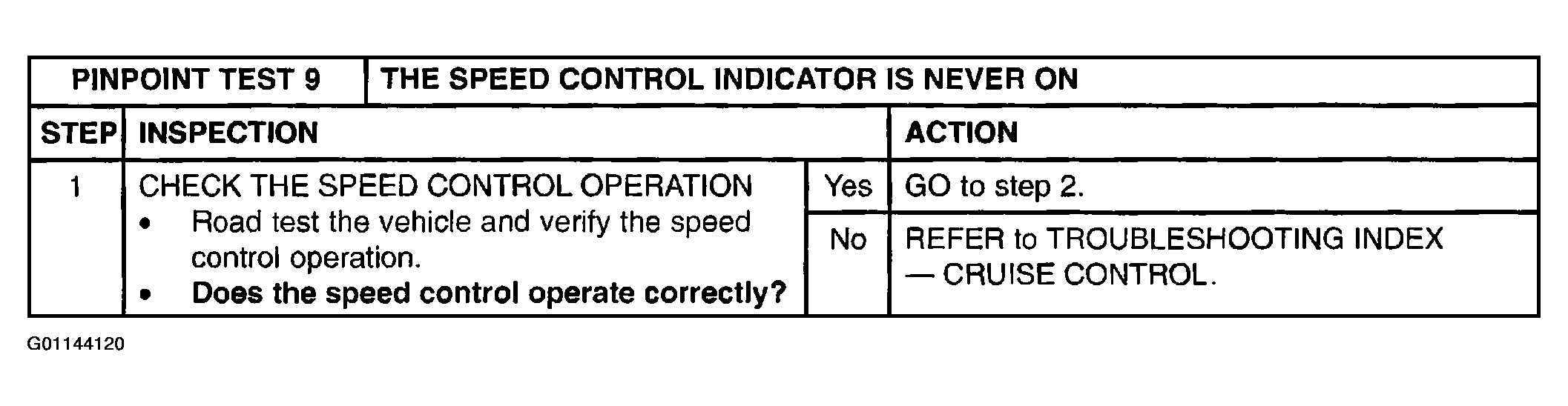

Fig 1: Pinpoint Test 9: The Speed Control Indicator Is Never On (Step 1)

Courtesy of MAZDA MOTORS CORP.

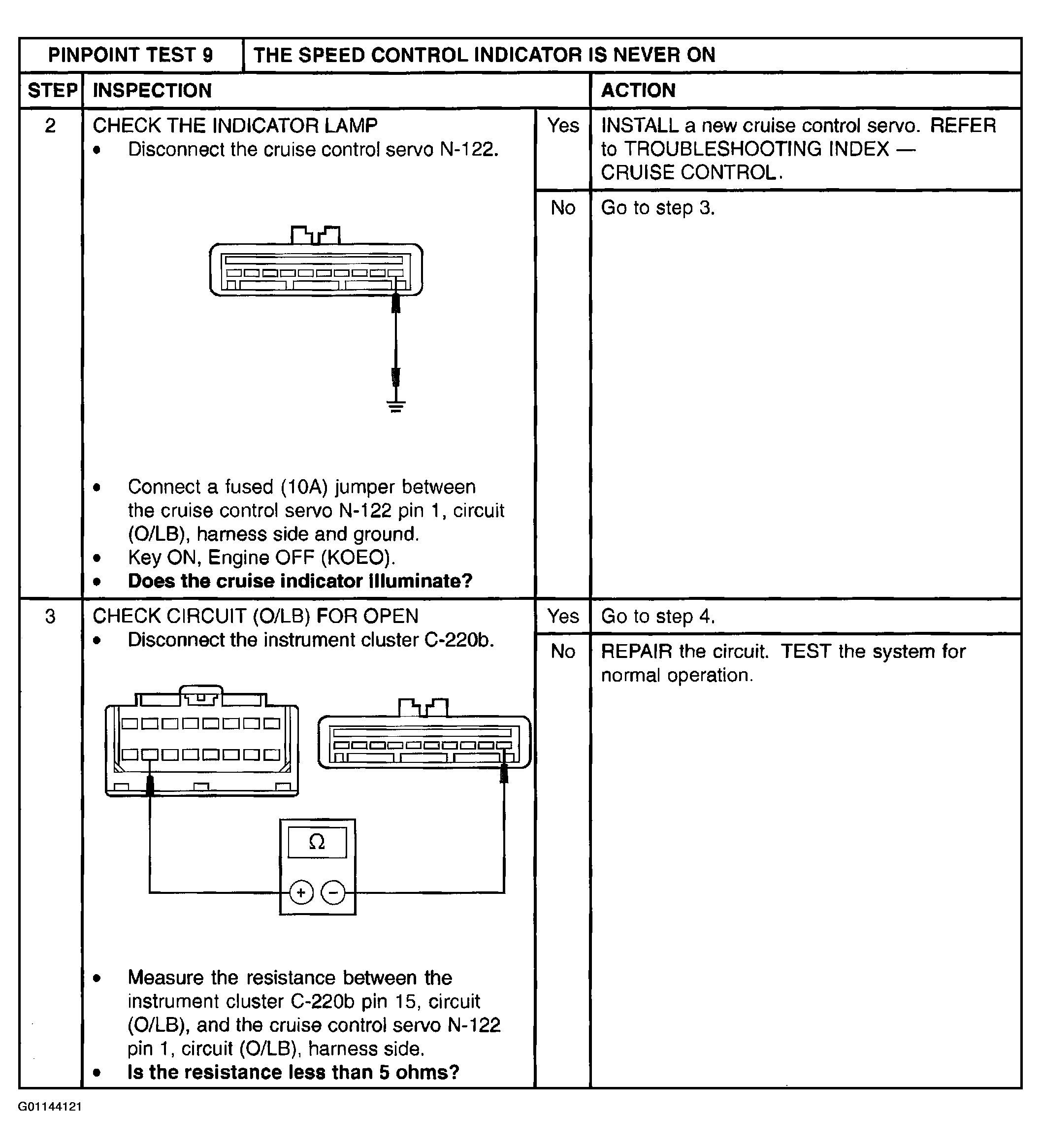

Fig 2: Pinpoint Test 9: The Speed Control Indicator Is Never On (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

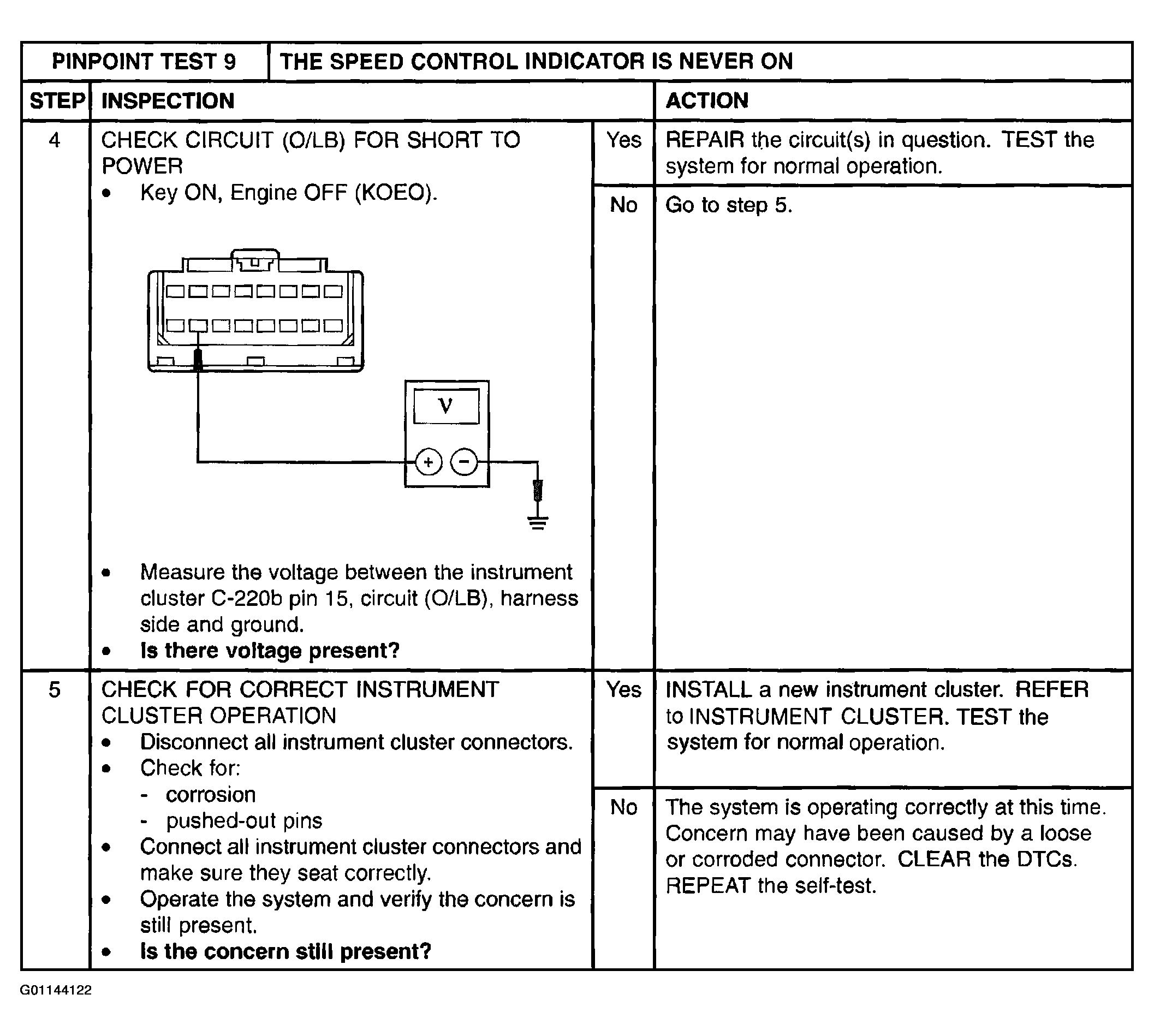

Fig 3: Pinpoint Test 9: The Speed Control Indicator Is Never On (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.
