Pinpoint Test 8: The Low Fuel Warning Indicator Is Never/Always On

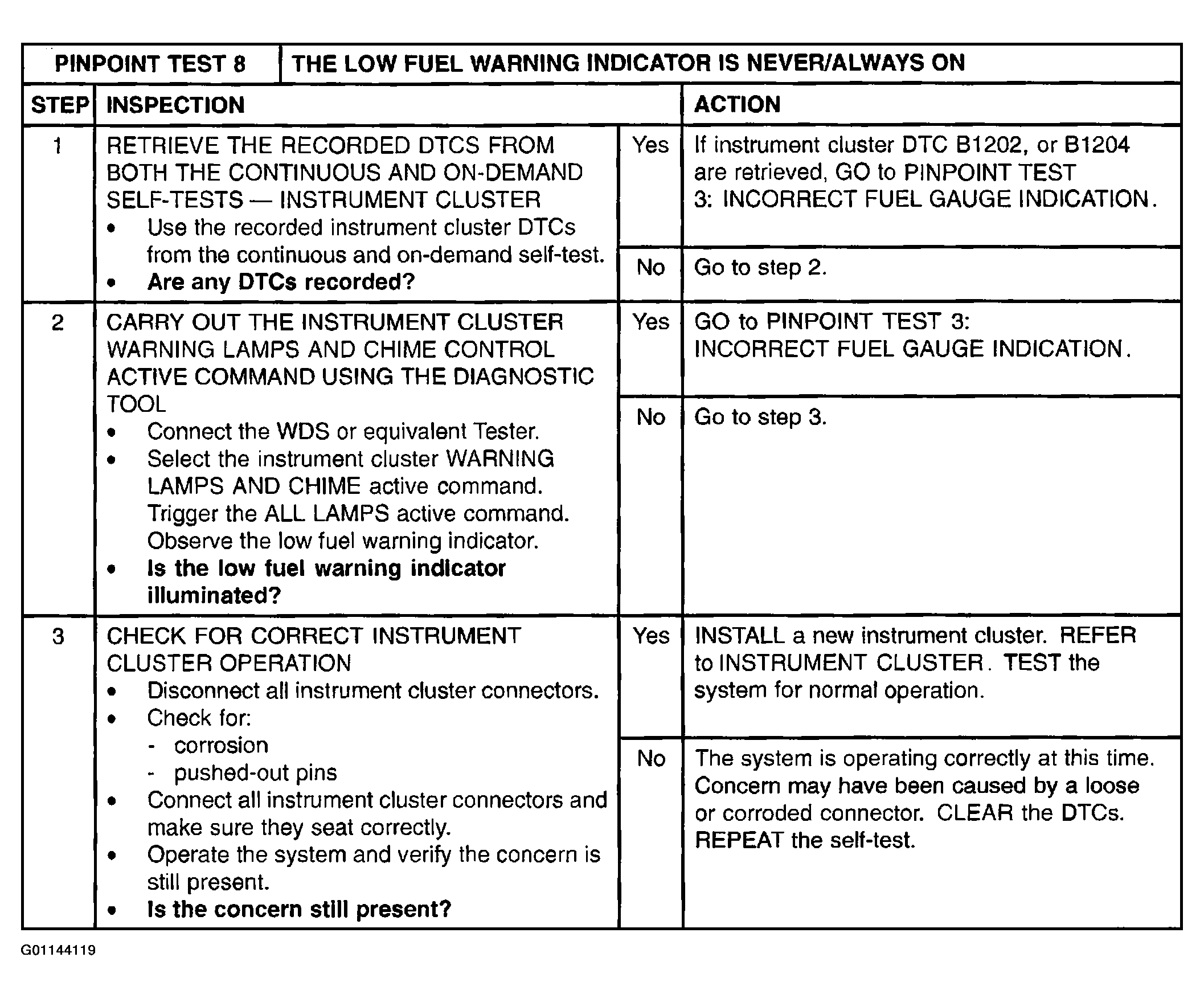

Fig 1: Pinpoint Test 8: The Low Fuel Warning Indicator Is Never/Always On

G01144119

Courtesy of MAZDA MOTORS CORP.
