Pinpoint Test 7: The Brake Warning Indicator Is Never/Always On

CAUTION:

• Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

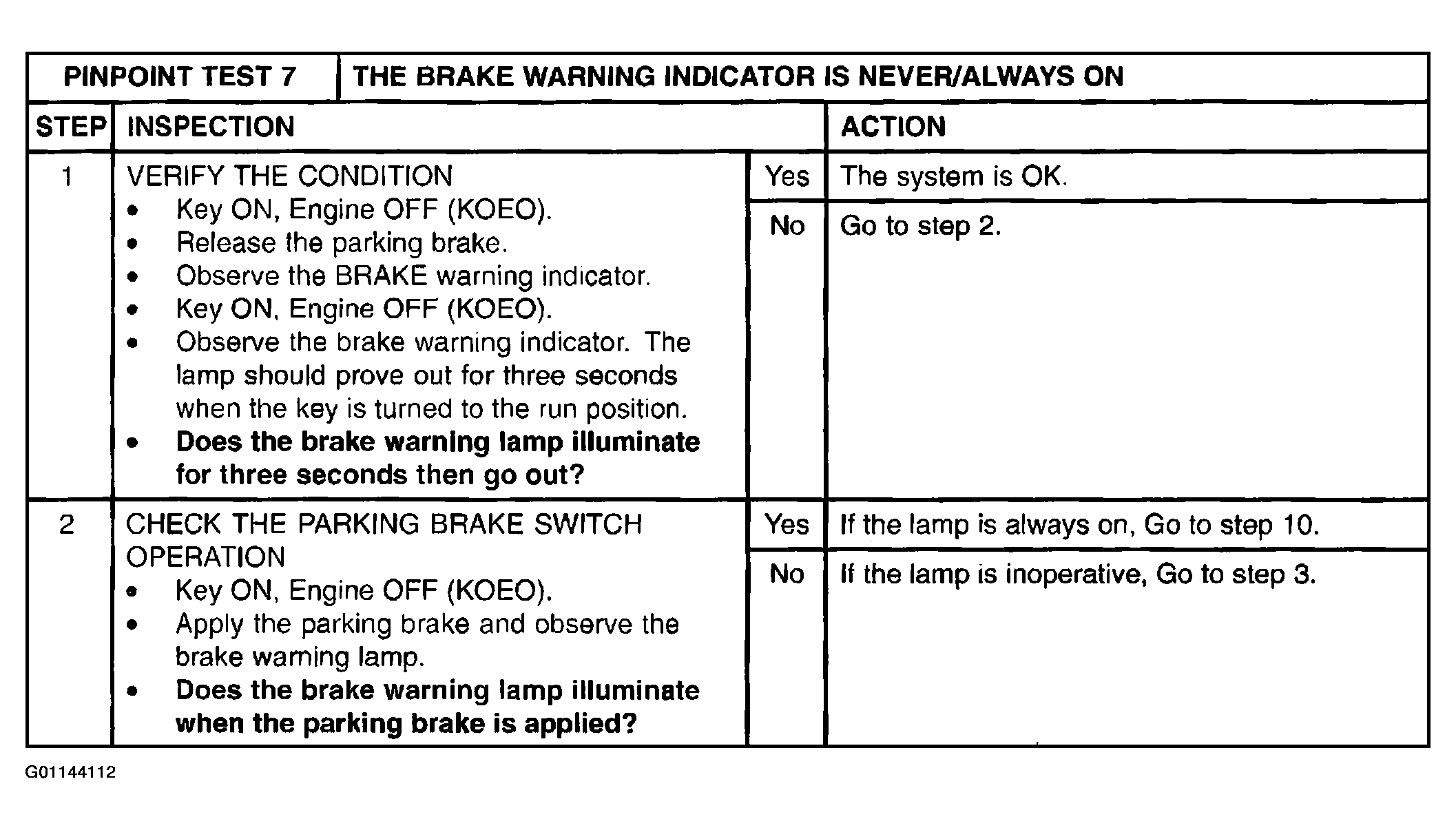

Fig 1: Pinpoint Test 7: The Brake Warning Indicator Is Never/Always On (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

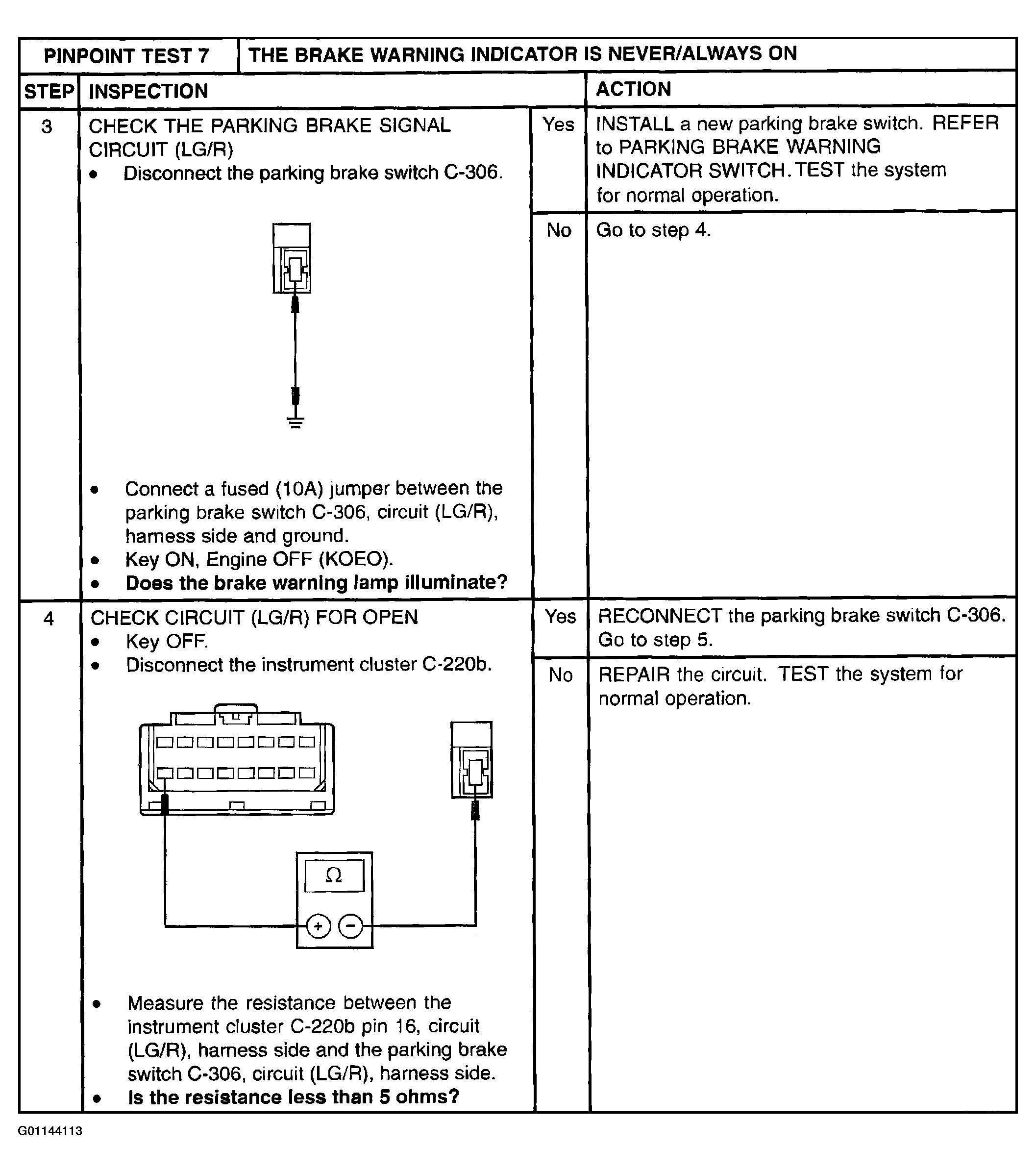

Fig 2: Pinpoint Test 7: The Brake Warning Indicator Is Never/Always On (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

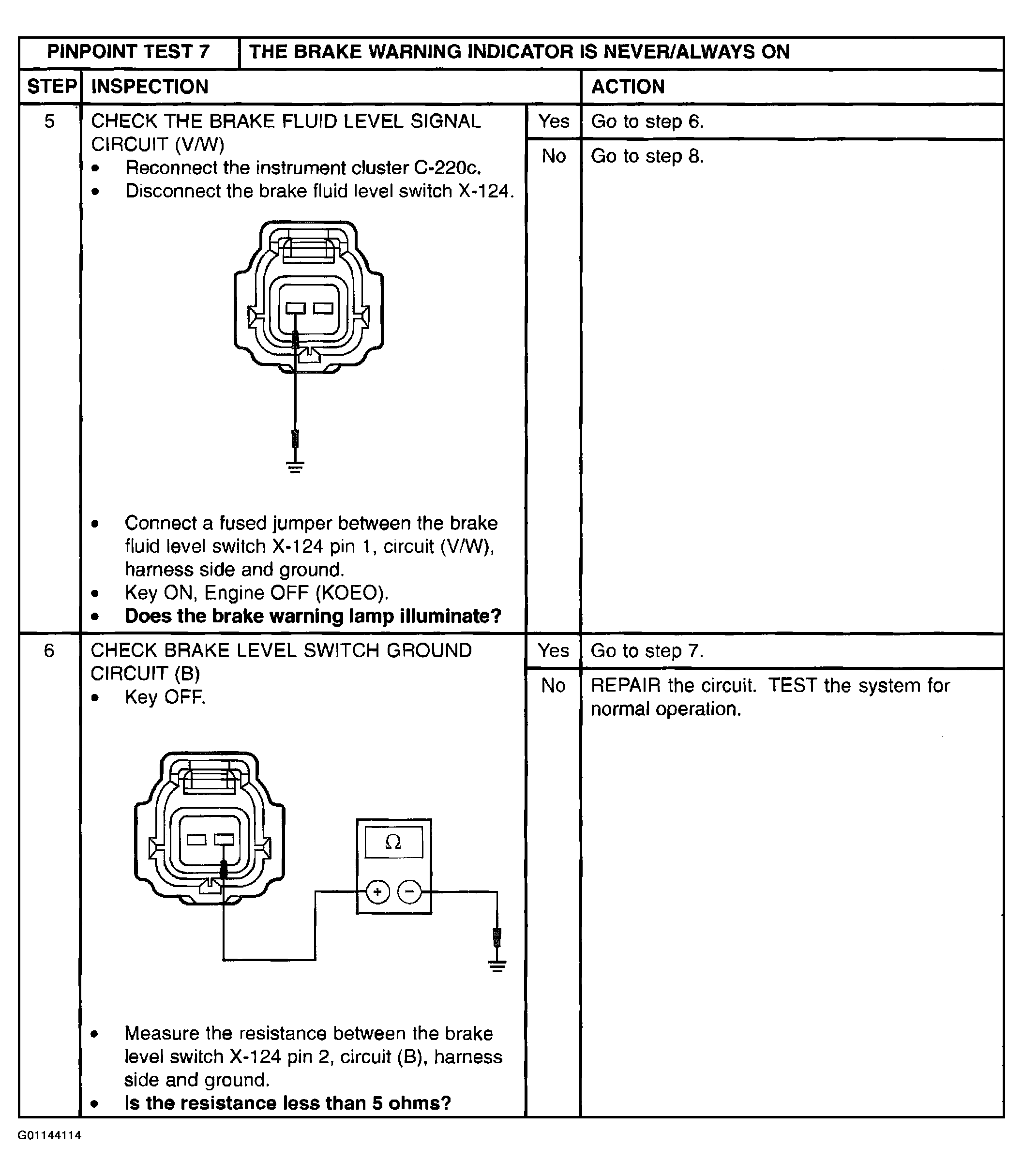

Fig 3: Pinpoint Test 7: The Brake Warning Indicator Is Never/Always On (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.

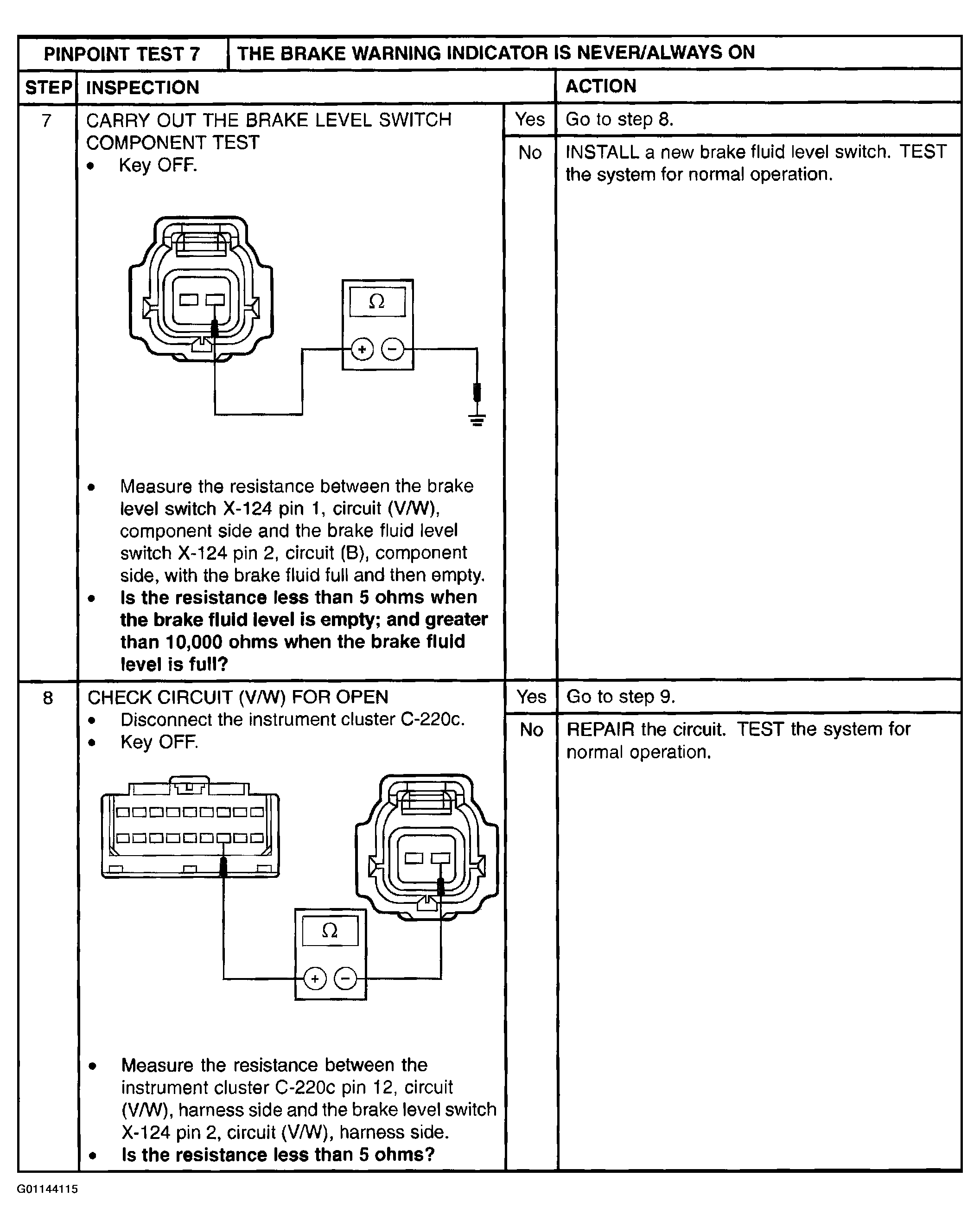

Fig 4: Pinpoint Test 7: The Brake Warning Indicator Is Never/Always On (Steps 7-8)

Courtesy of MAZDA MOTORS CORP.

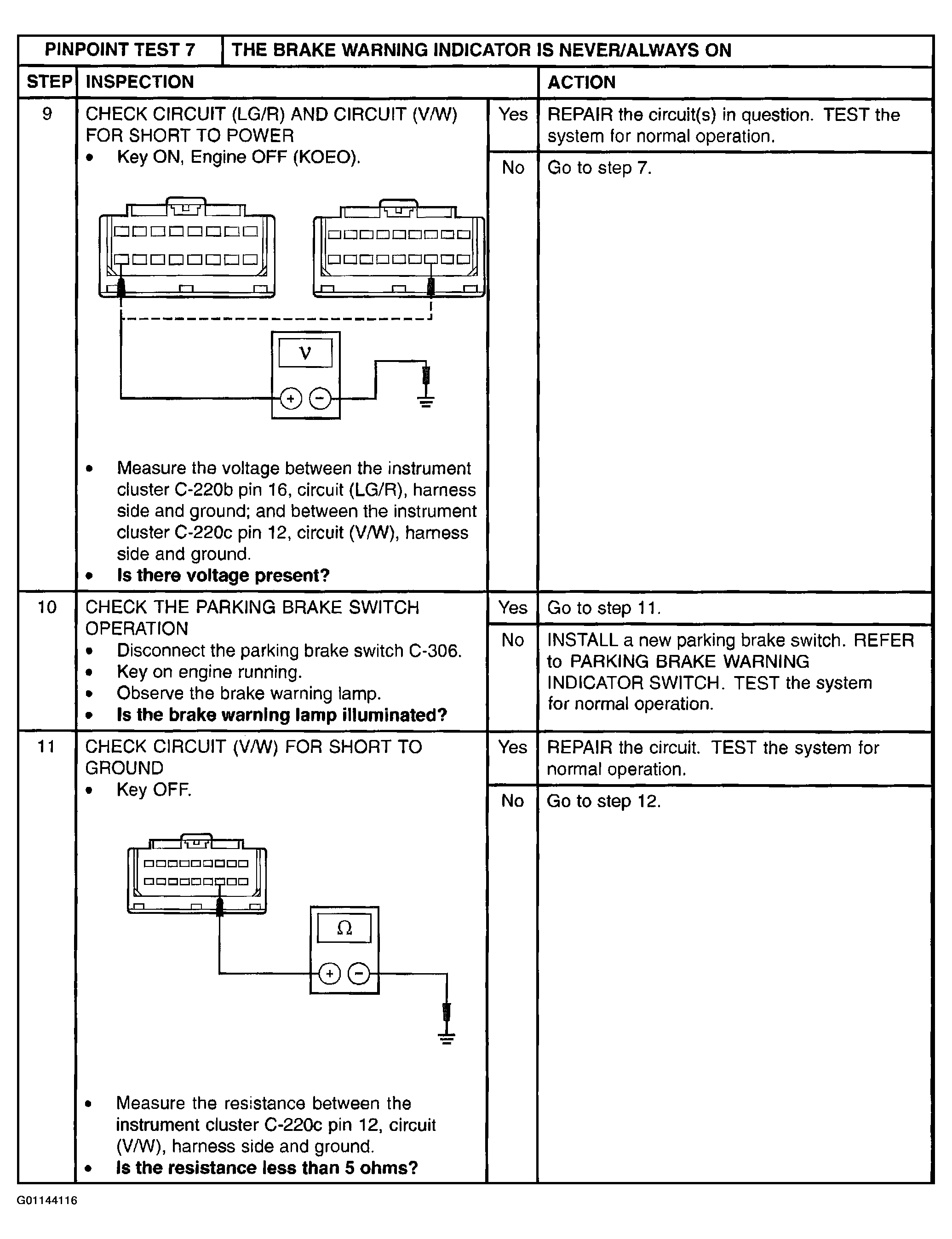

Fig 5: Pinpoint Test 7: The Brake Warning Indicator Is Never/Always On (Steps 9-11)

Courtesy of MAZDA MOTORS CORP.

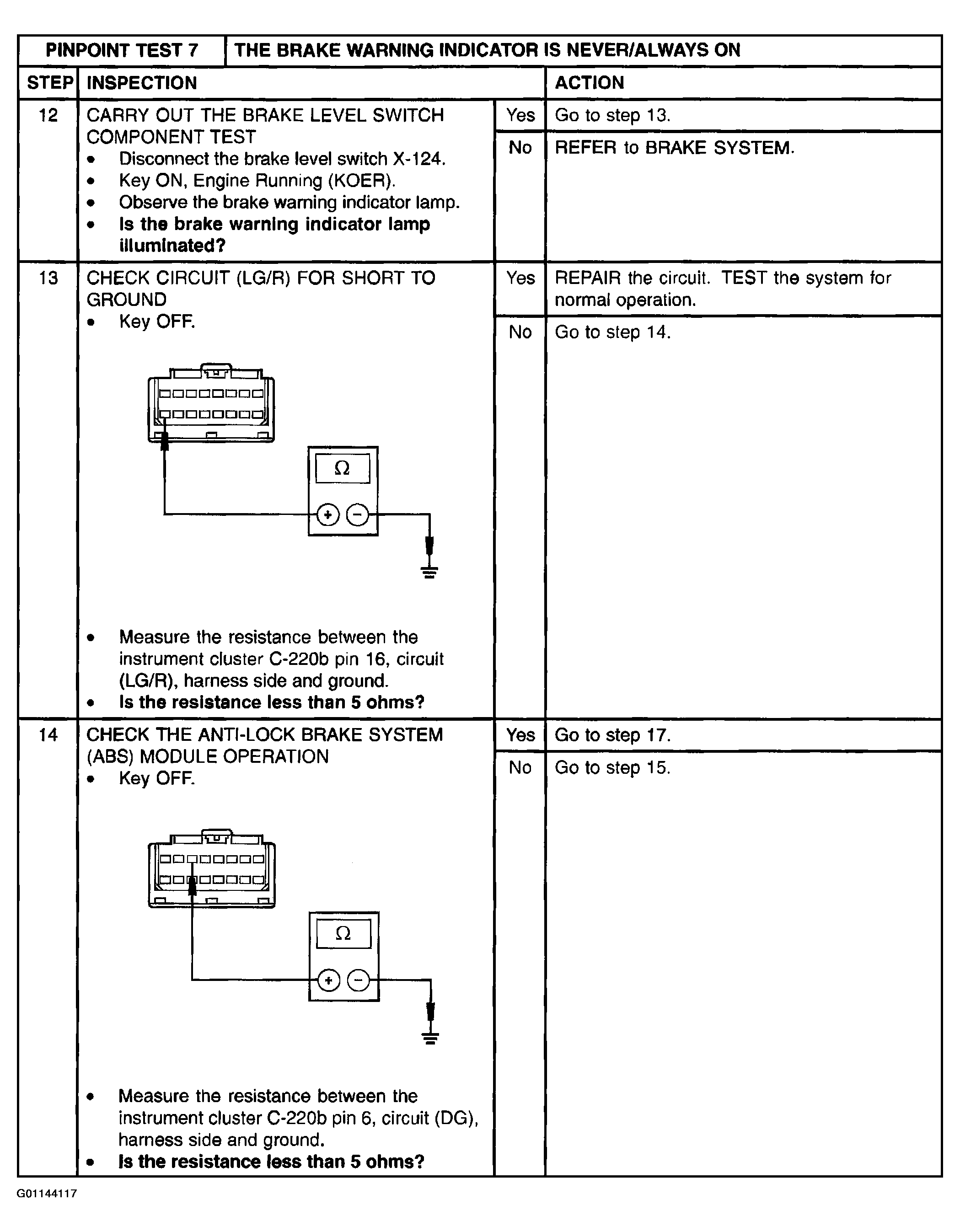

Fig 6: Pinpoint Test 7: The Brake Warning Indicator Is Never/Always On (Steps 12-14)

Courtesy of MAZDA MOTORS CORP.

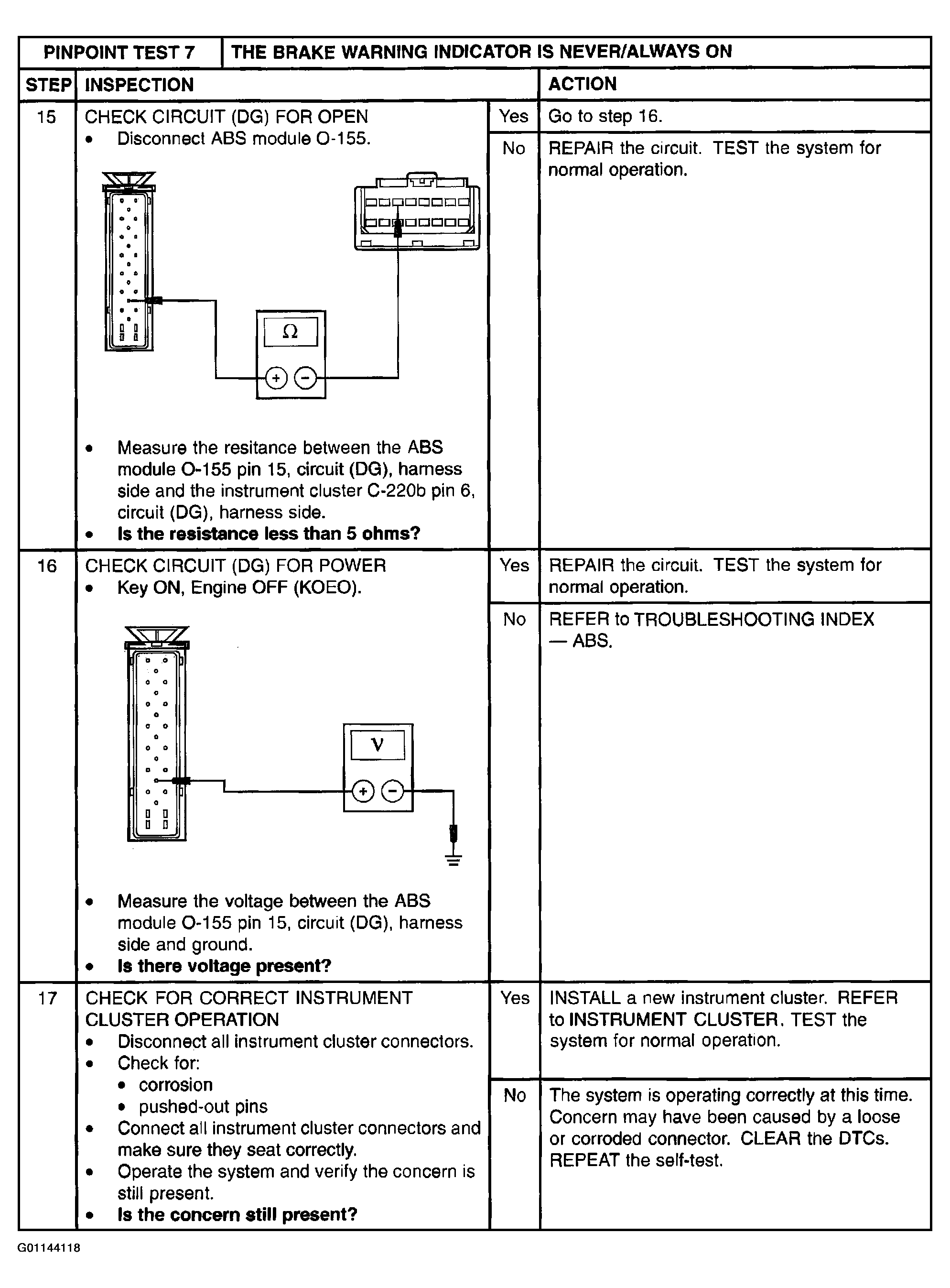

Fig 7: Pinpoint Test 7: The Brake Warning Indicator Is Never/Always On (Steps 15-17)

Courtesy of MAZDA MOTORS CORP.
