Pinpoint Test 6: Incorrect Temperature Gauge Indication

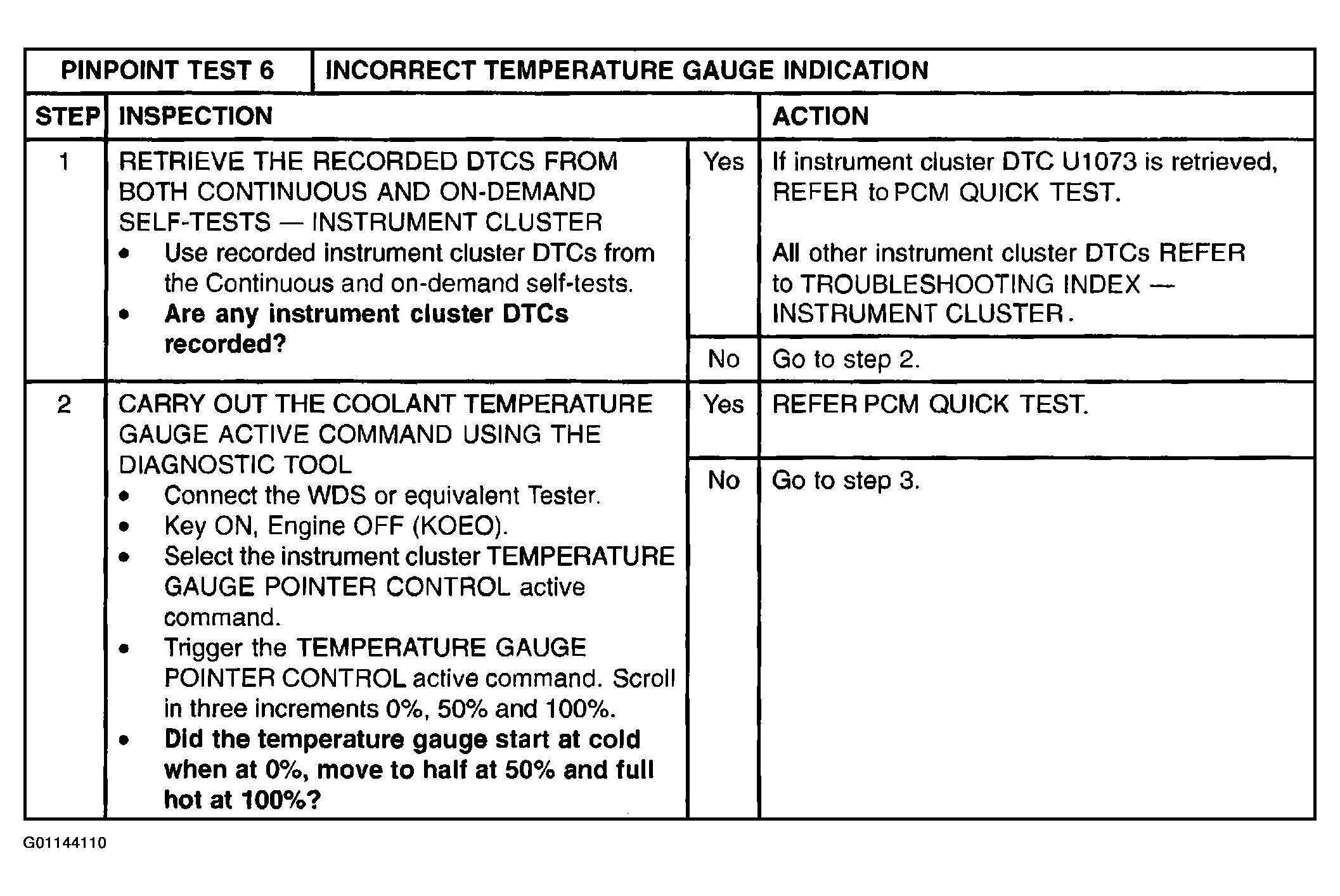

Fig 1: Pinpoint Test 6: Incorrect Temperature Gauge Indication (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

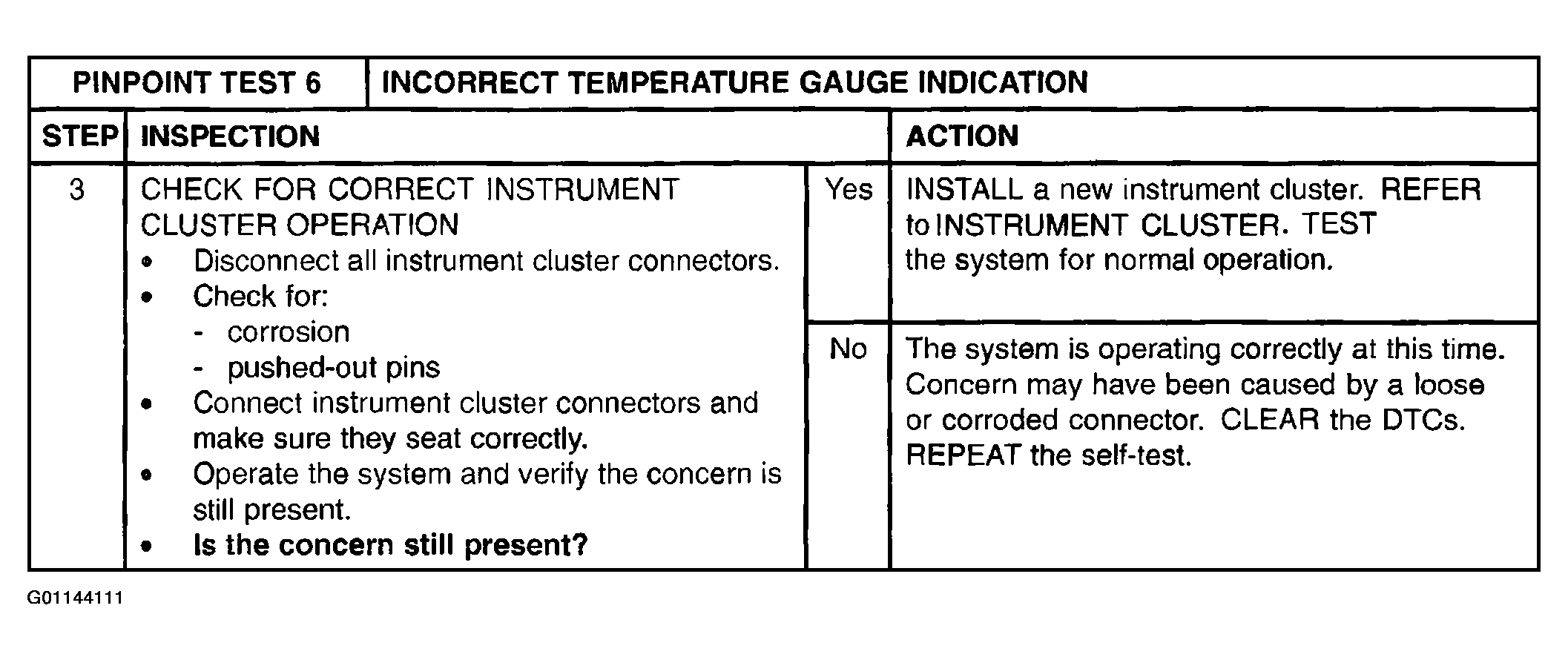

Fig 2: Pinpoint Test 6: Incorrect Temperature Gauge Indication (Step 3)

Courtesy of MAZDA MOTORS CORP.
