Pinpoint Test 5: The Tachometer Is Inoperative

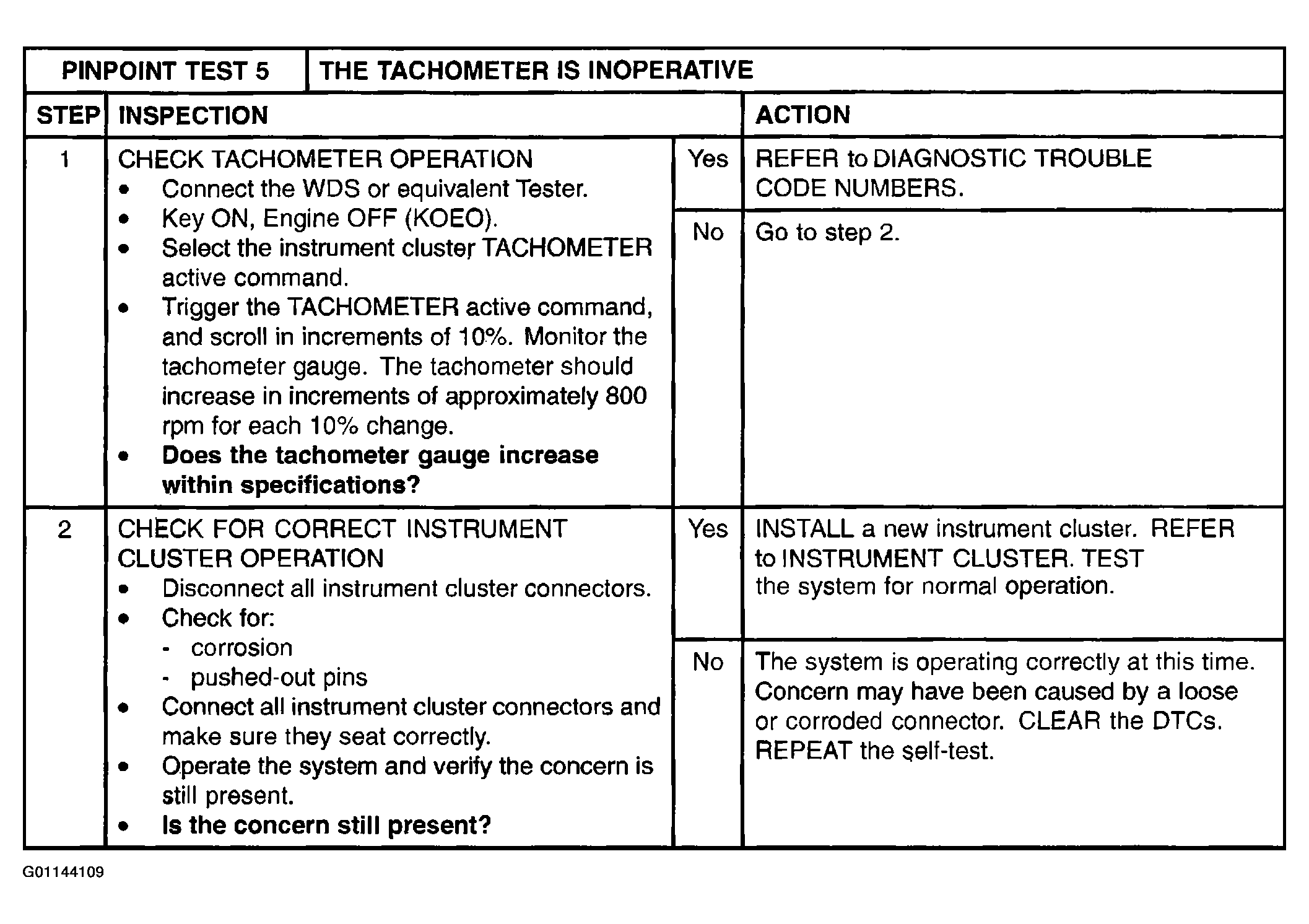

Fig 1: Pinpoint Test 5: The Tachometer Is Inoperative

G01144109

Courtesy of MAZDA MOTORS CORP.
