Pinpoint Test 4: The Speedometer/Odometer Is Inoperative

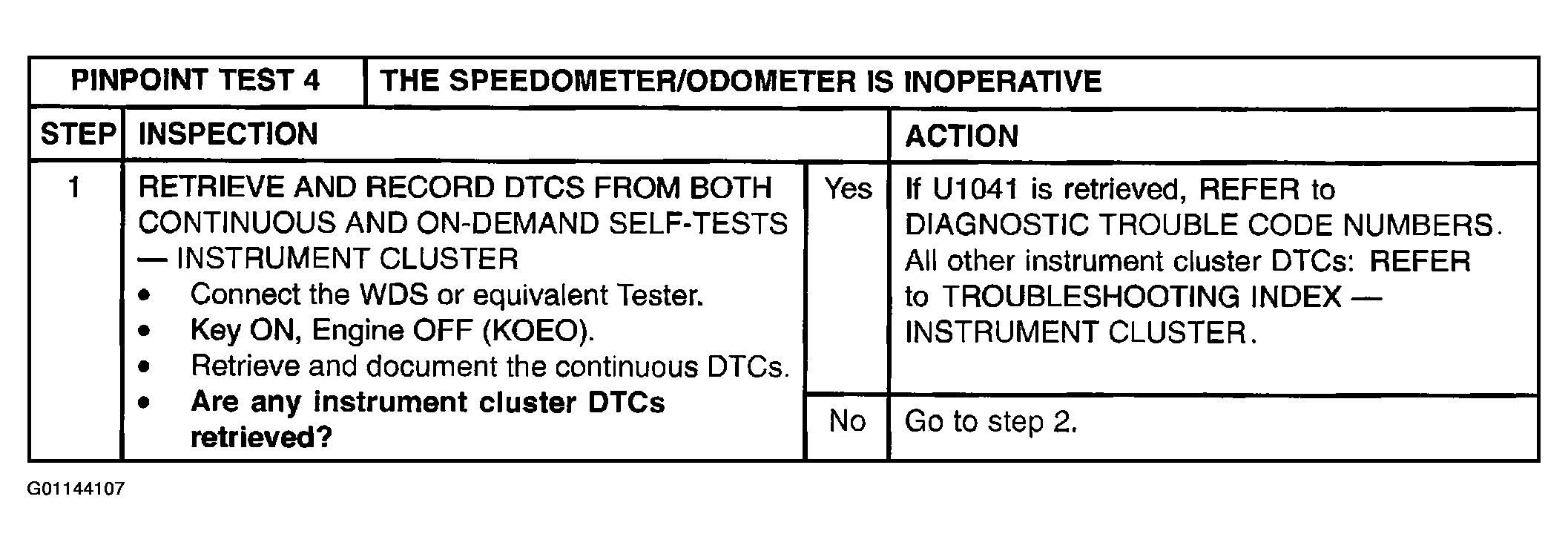

Fig 1: Pinpoint Test 4: The Speedometer/Odometer Is Inoperative (Step 1)

Courtesy of MAZDA MOTORS CORP.

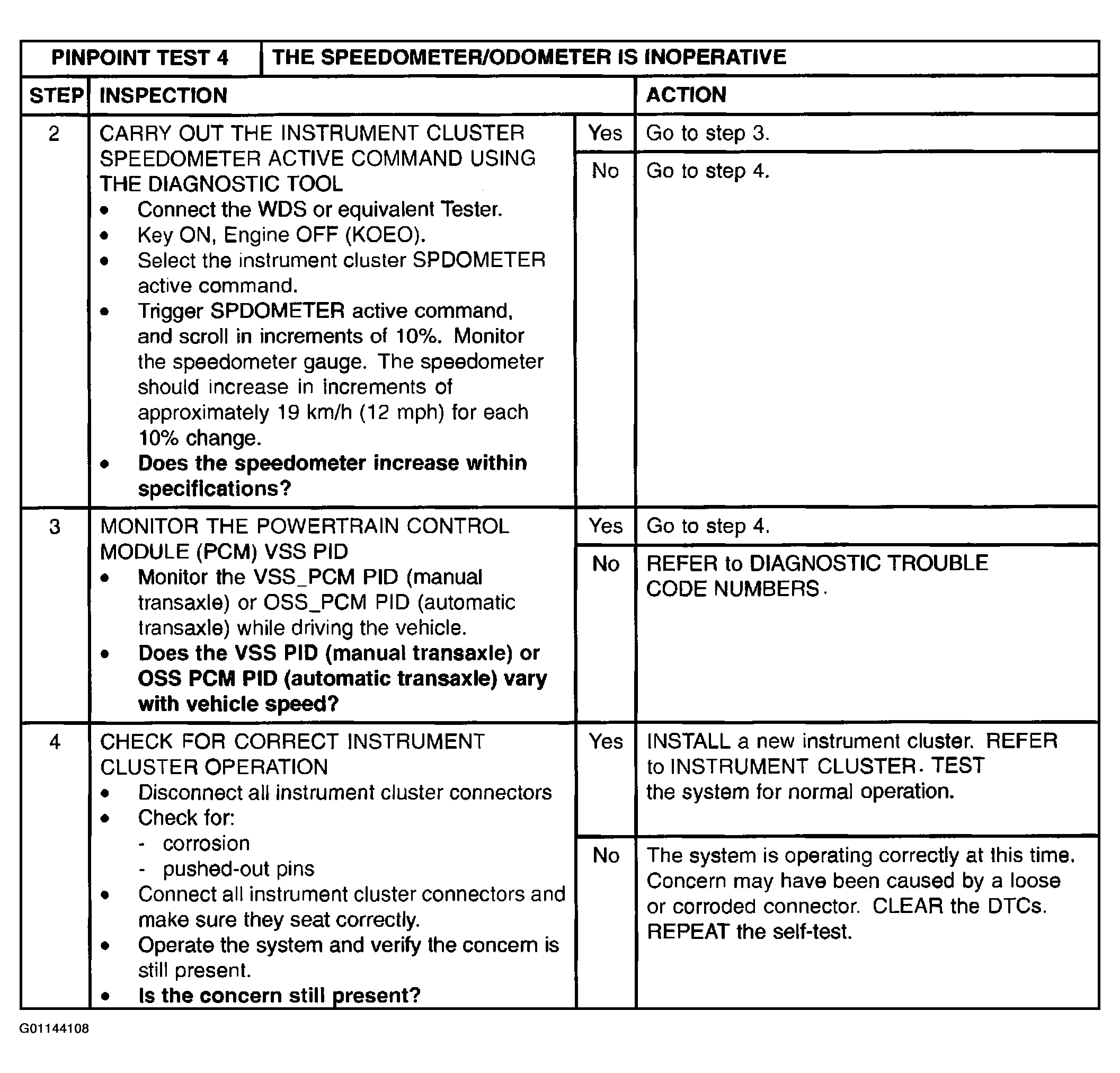

Fig 2: Pinpoint Test 4: The Speedometer/Odometer Is Inoperative (Steps 2-4)

Courtesy of MAZDA MOTORS CORP.
