Pinpoint Test 25: The Check Fuel Cap Indicator Is Inoperative/Always On - If Equipped

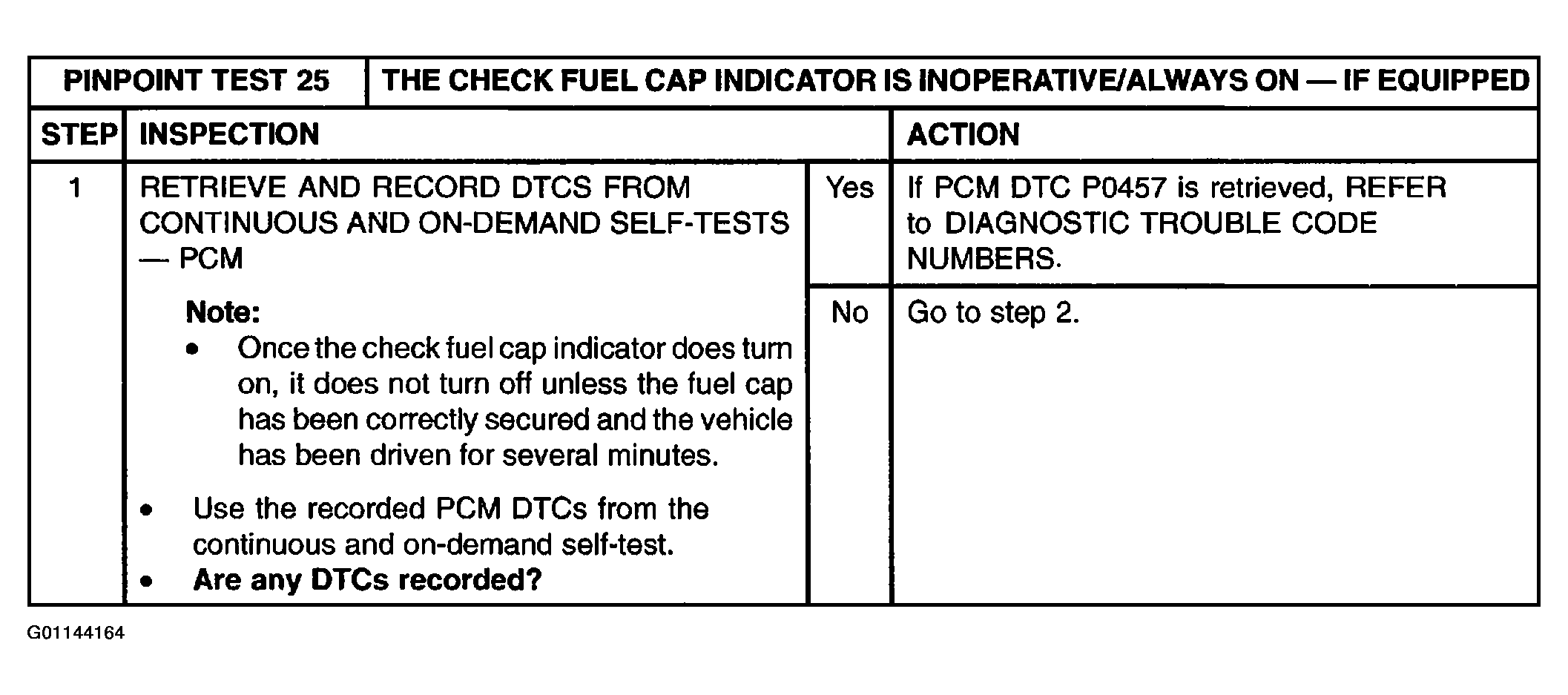

Fig 1: Pinpoint Test 25: The Check Fuel Cap Indicator Is Inoperative/Always On - If Equipped (Step 1)
G01144164Courtesy of MAZDA MOTORS CORP.

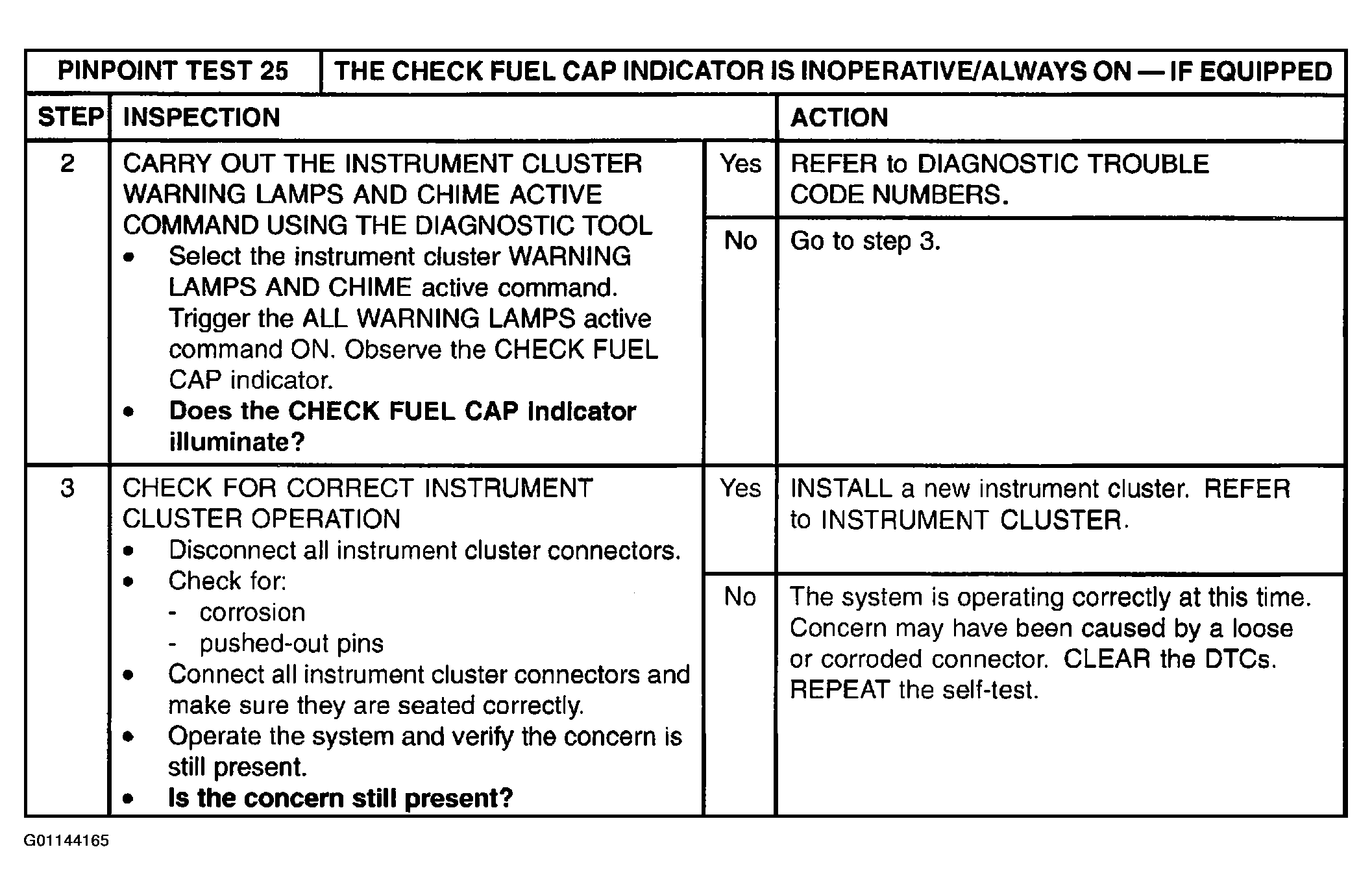

Fig 2: Pinpoint Test 25: The Check Fuel Cap Indicator Is Inoperative/Always On - If Equipped (Steps 2-3)
G01144165Courtesy of MAZDA MOTORS CORP.
