Pinpoint Test 24: The Transaxle Range Indicator Is Inoperative

CAUTION:

• Use correct probe adapter(s) when making measurements. Failure to use correct probe adapter(s) may damage the connector.

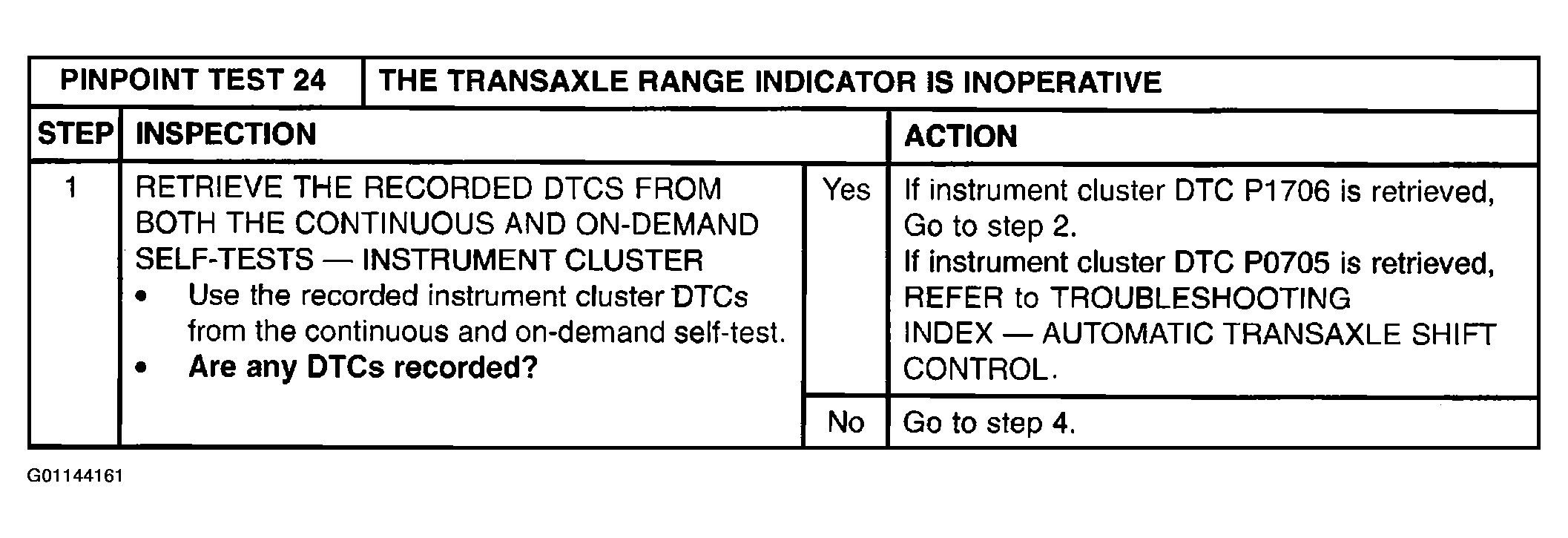

Fig 1: Pinpoint Test 24: The Transaxle Range Indicator Is Inoperative (Step 1)

Courtesy of MAZDA MOTORS CORP.

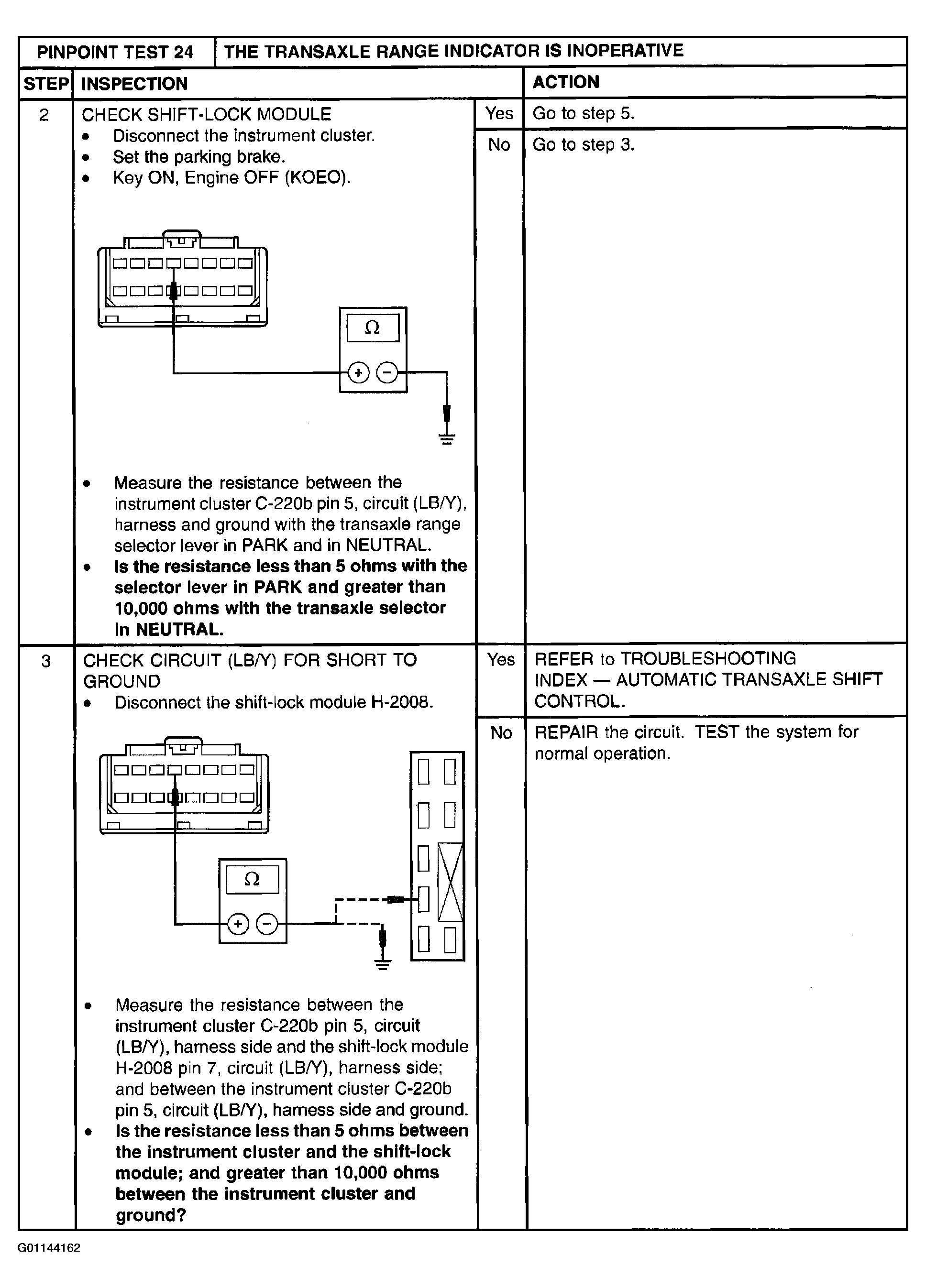

Fig 2: Pinpoint Test 24: The Transaxle Range Indicator Is Inoperative (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

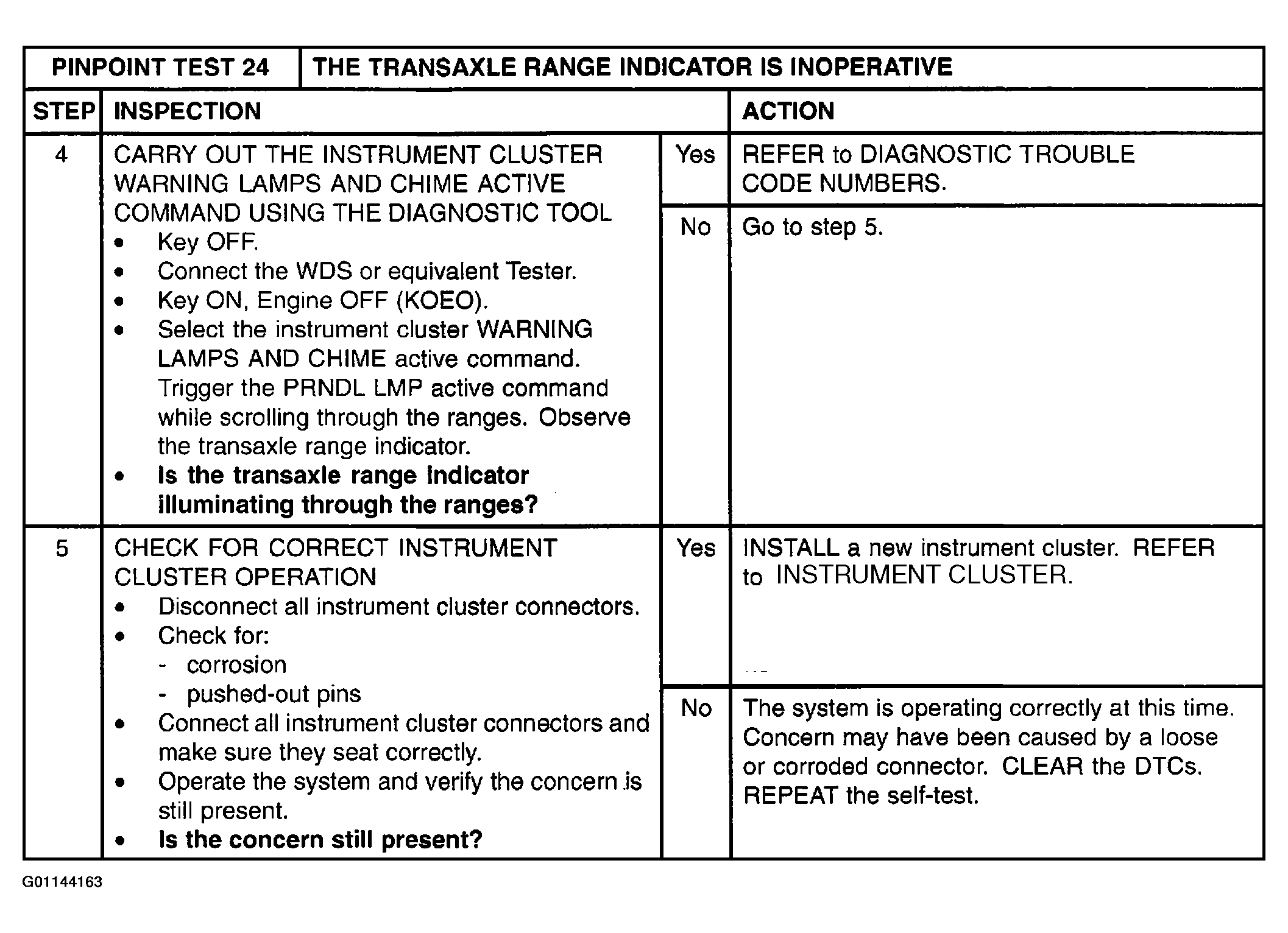

Fig 3: Pinpoint Test 24: The Transaxle Range Indicator Is Inoperative (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.
