Pinpoint Test 22: The O/D Off Indicator Is Inoperative

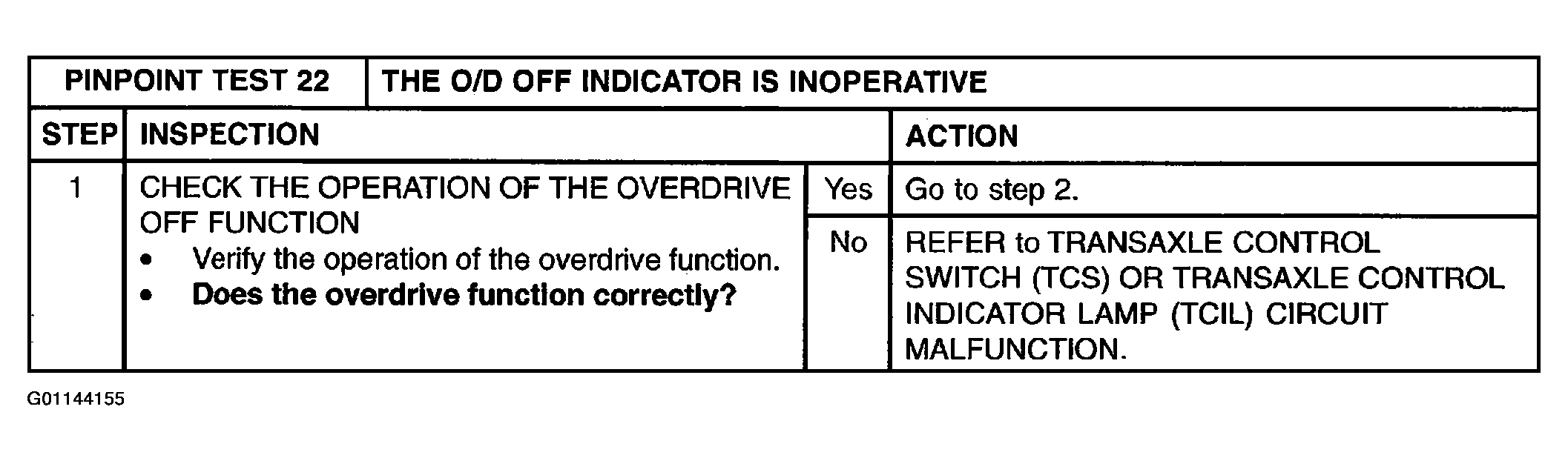

Fig 1: Pinpoint Test 22: The O/D Off Indicator Is Inoperative (Step 1)
G01144155Courtesy of MAZDA MOTORS CORP.

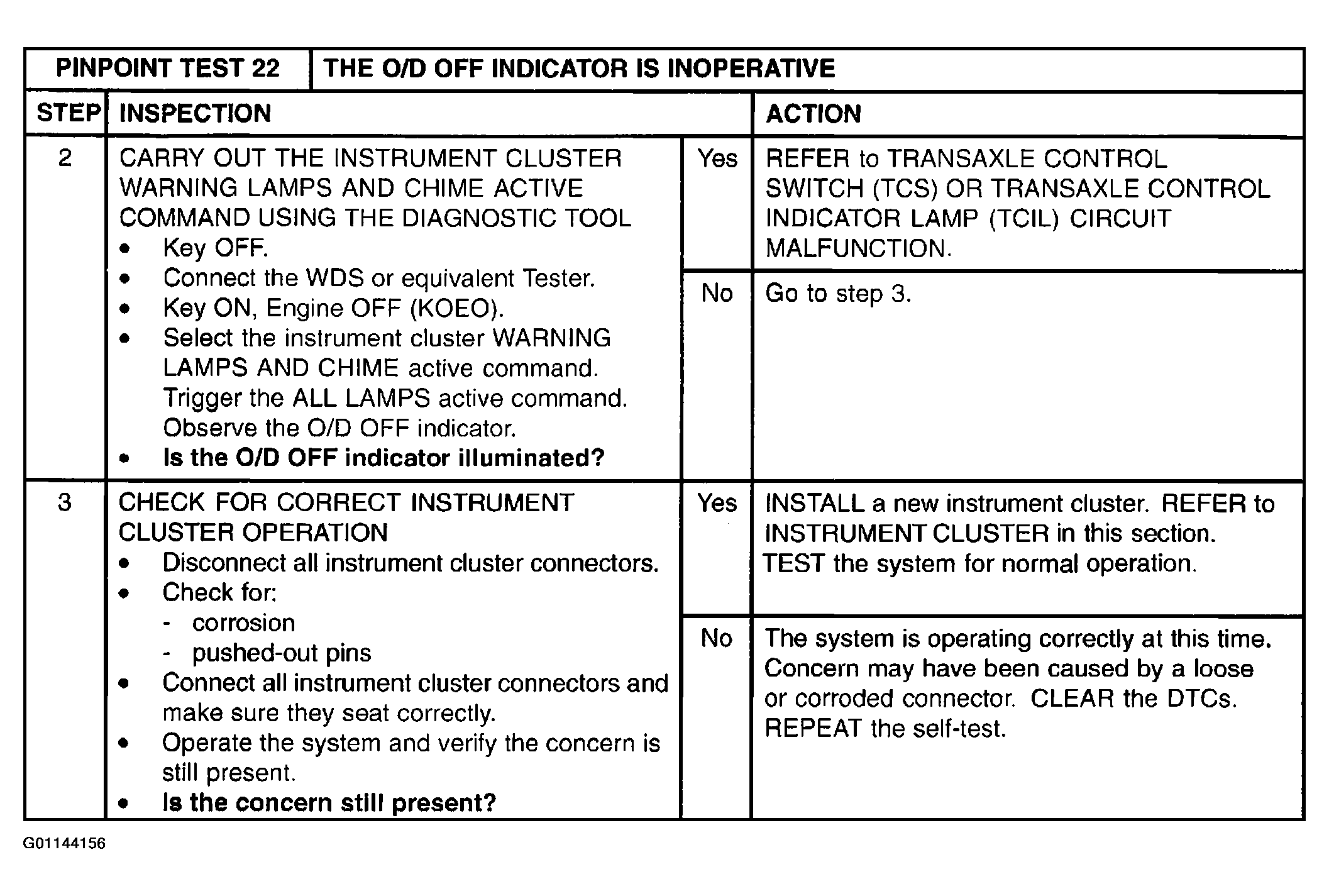

Fig 2: Pinpoint Test 22: The O/D Off Indicator Is Inoperative (Steps 2-3)
G01144156Courtesy of MAZDA MOTORS CORP.
