Pinpoint Test 21: The Door Ajar Indicator Is Inoperative (Chime Is Operative)

CAUTION:

• Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

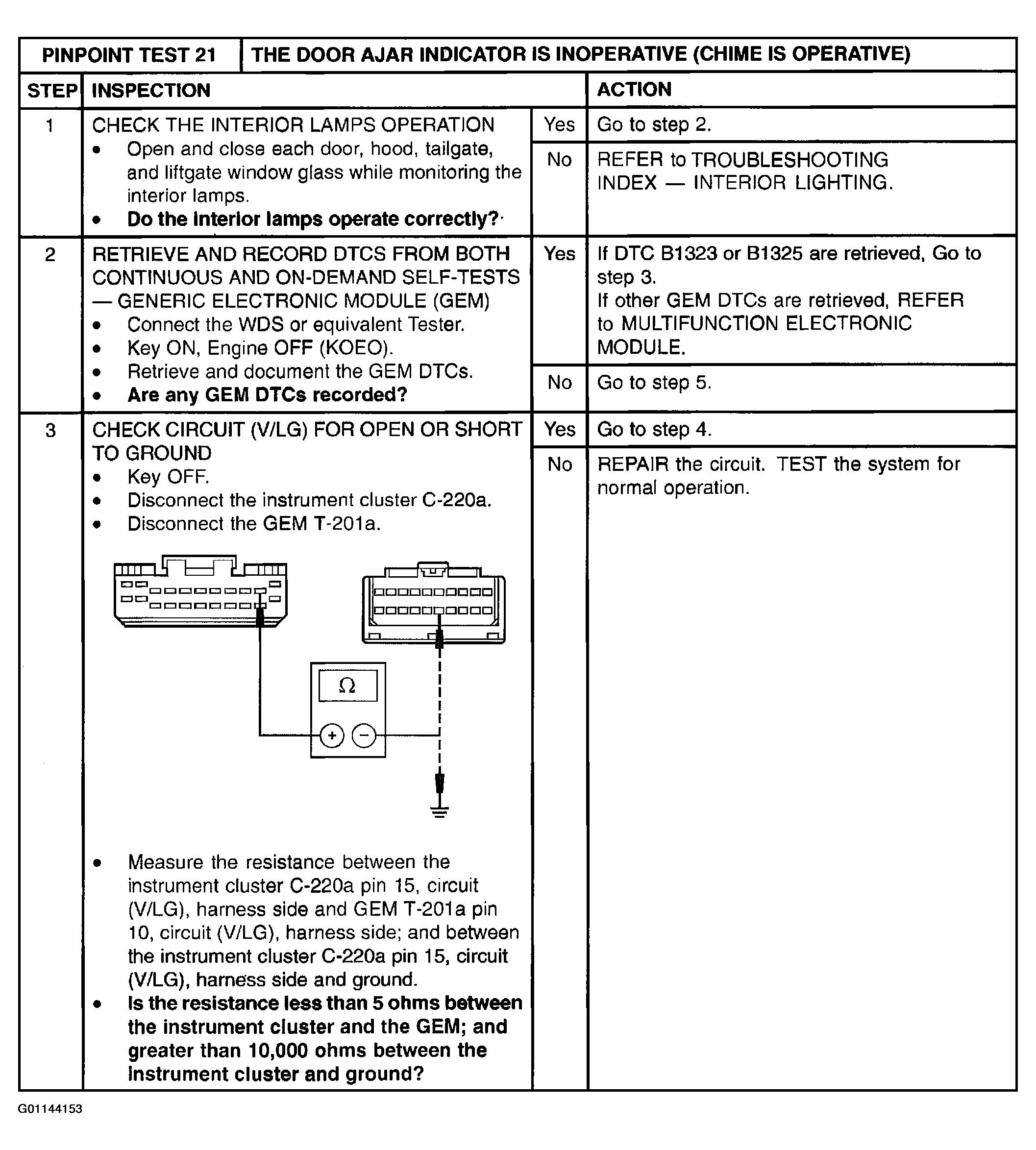

Fig 1: Pinpoint Test 21: The Door Ajar Indicator Is Inoperative (Chime Is Operative) (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

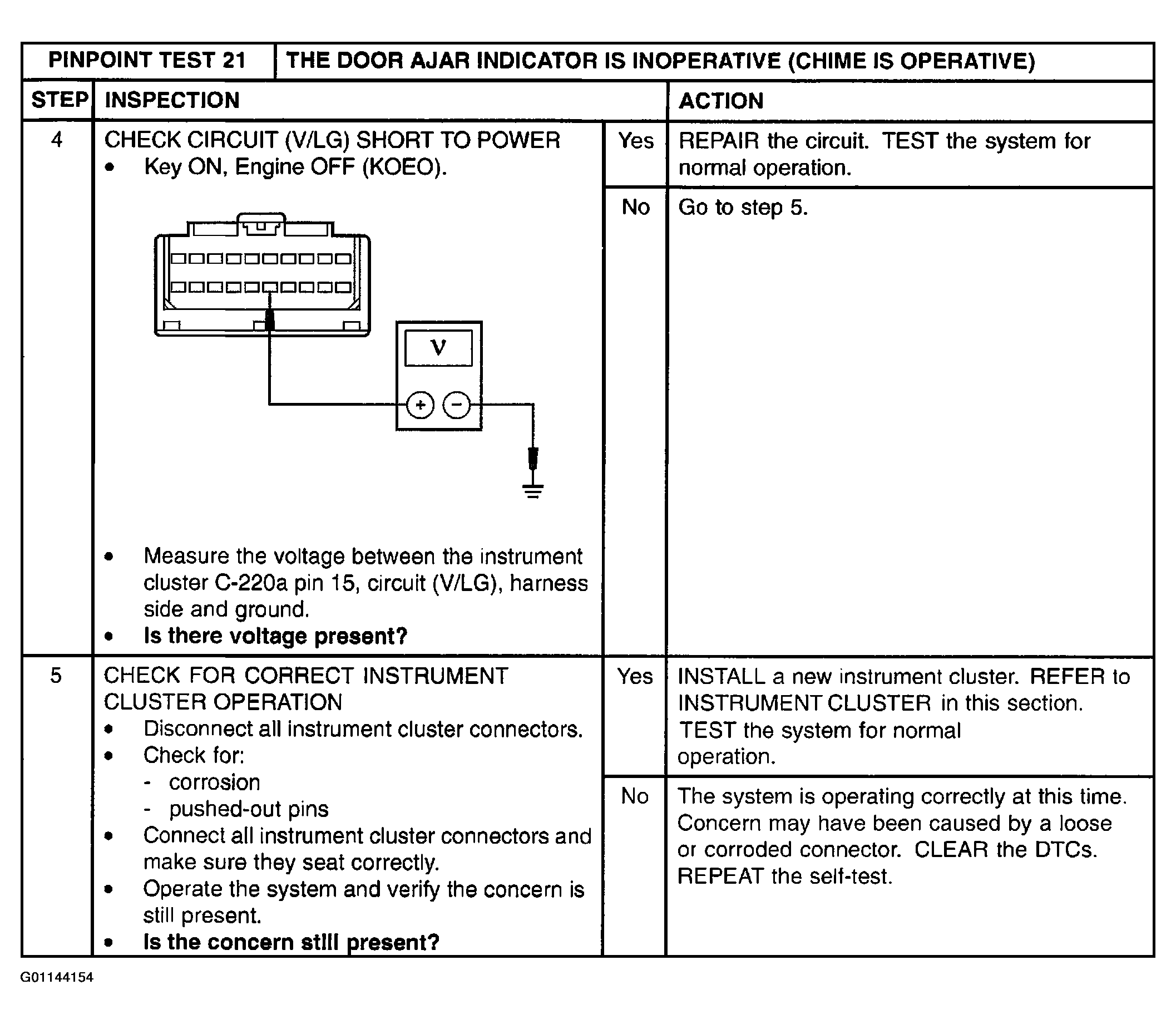

Fig 2: Pinpoint Test 21: The Door Ajar Indicator Is Inoperative (Chime Is Operative) (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.
