Pinpoint Test 20: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative)

CAUTION:

• Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

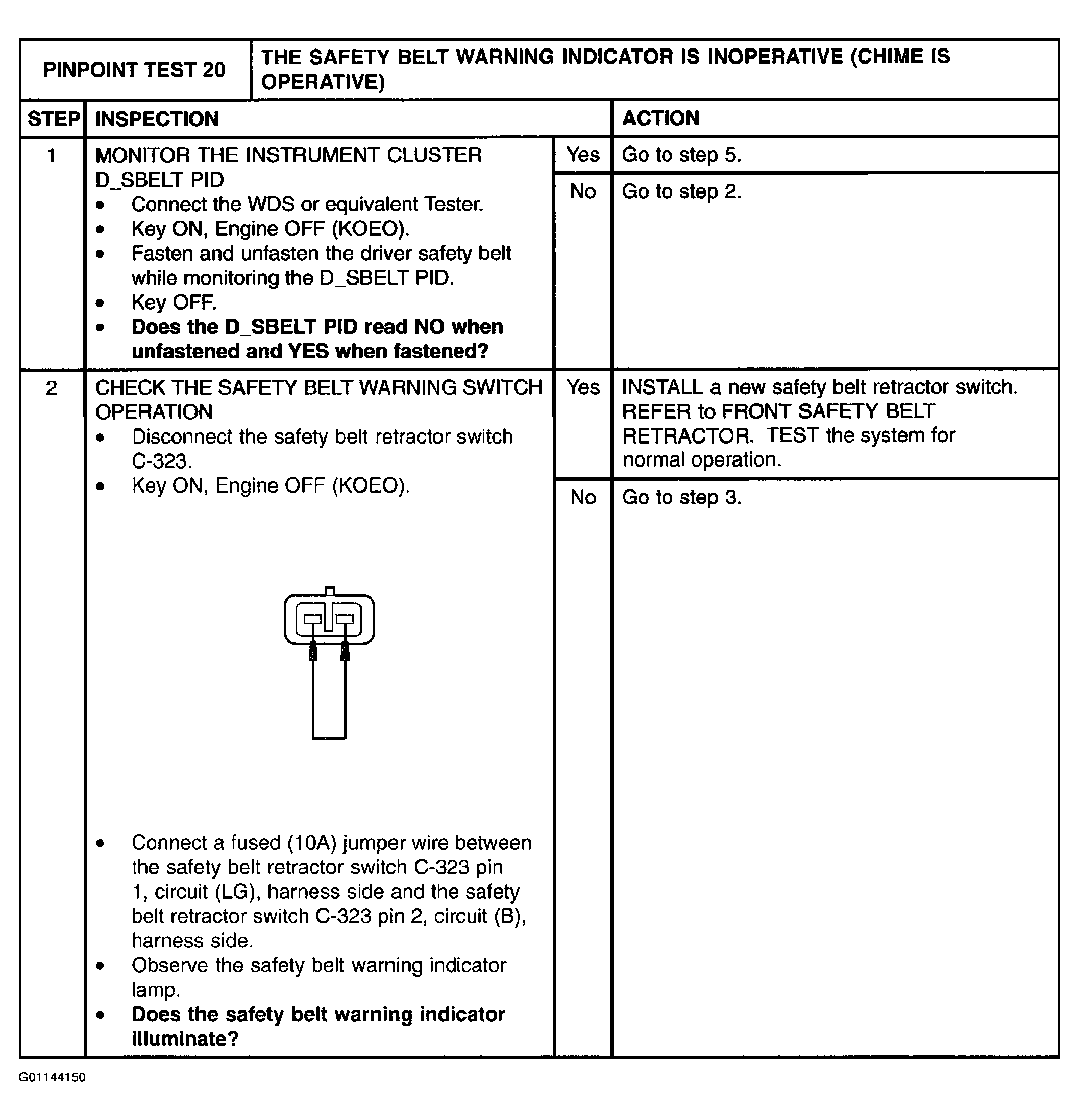

Fig 1: Pinpoint Test 20: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) (Steps 1 - 2)

Courtesy of MAZDA MOTORS CORP.

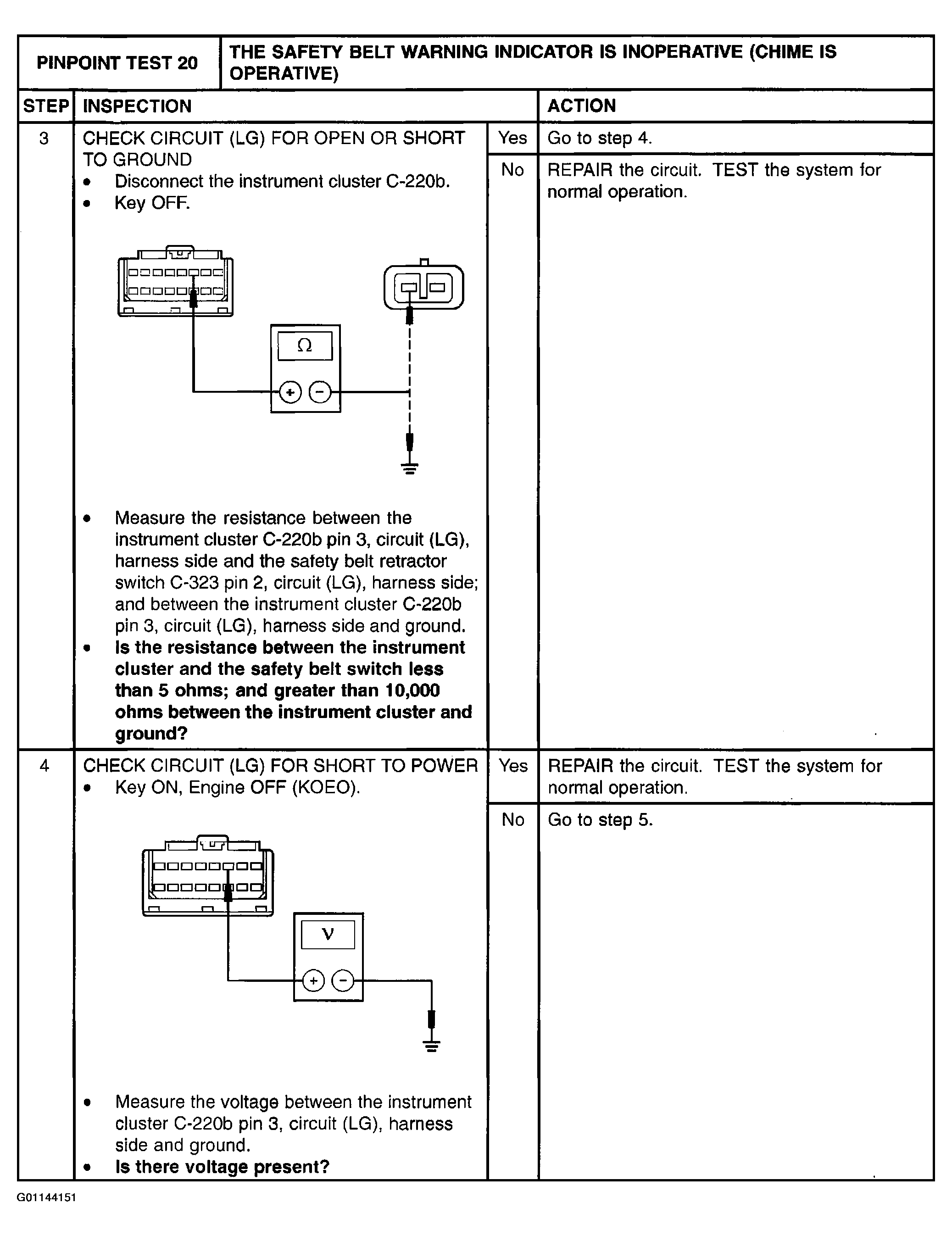

Fig 2: Pinpoint Test 20: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) (Steps 3 - 4)

Courtesy of MAZDA MOTORS CORP.

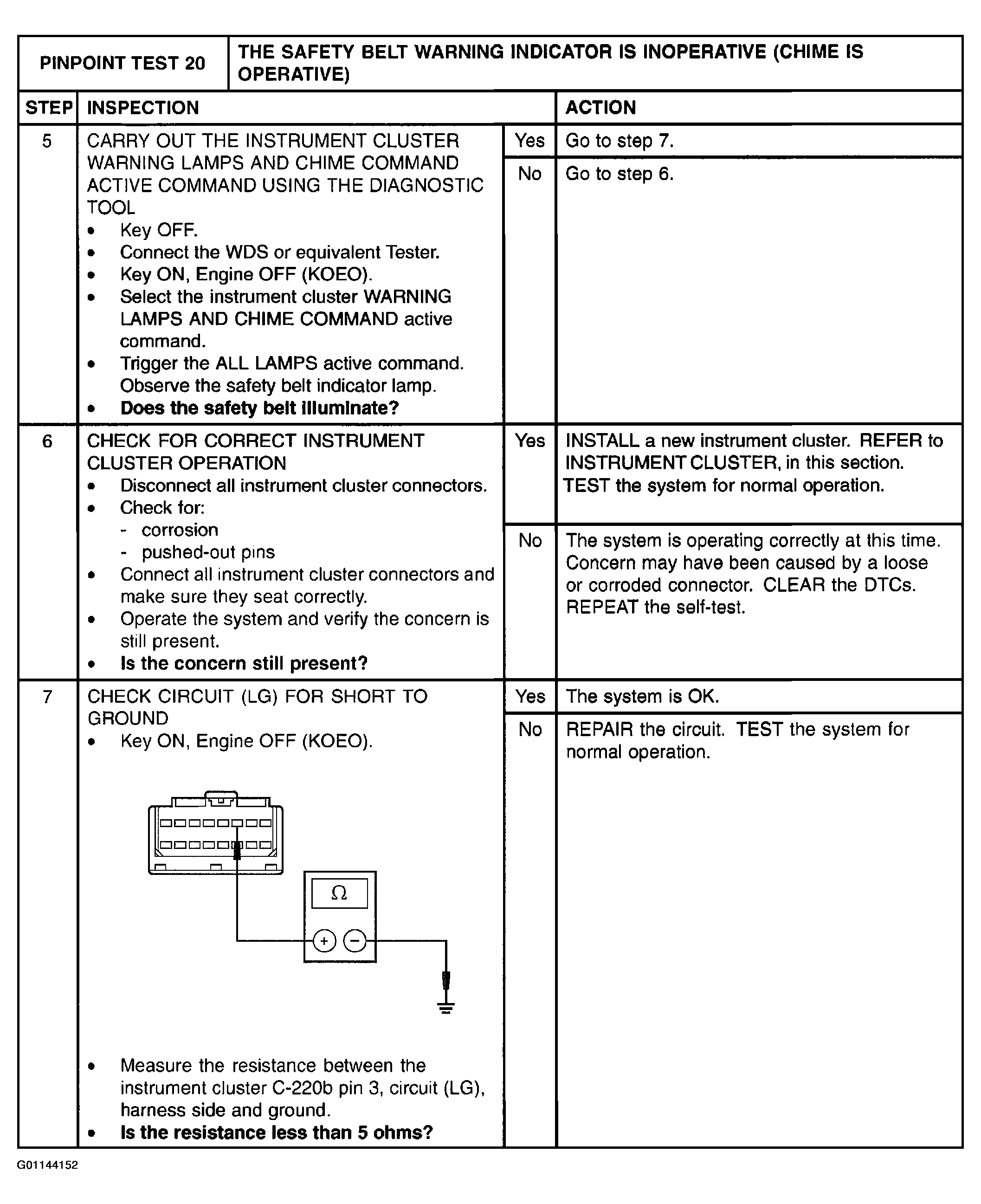

Fig 3: Pinpoint Test 20: The Safety Belt Warning Indicator Is Inoperative (Chime Is Operative) (Steps 5 - 7)

Courtesy of MAZDA MOTORS CORP.
