Pinpoint Test 18: The Malfunction Indicator Lamp (Mil) Is Inoperative

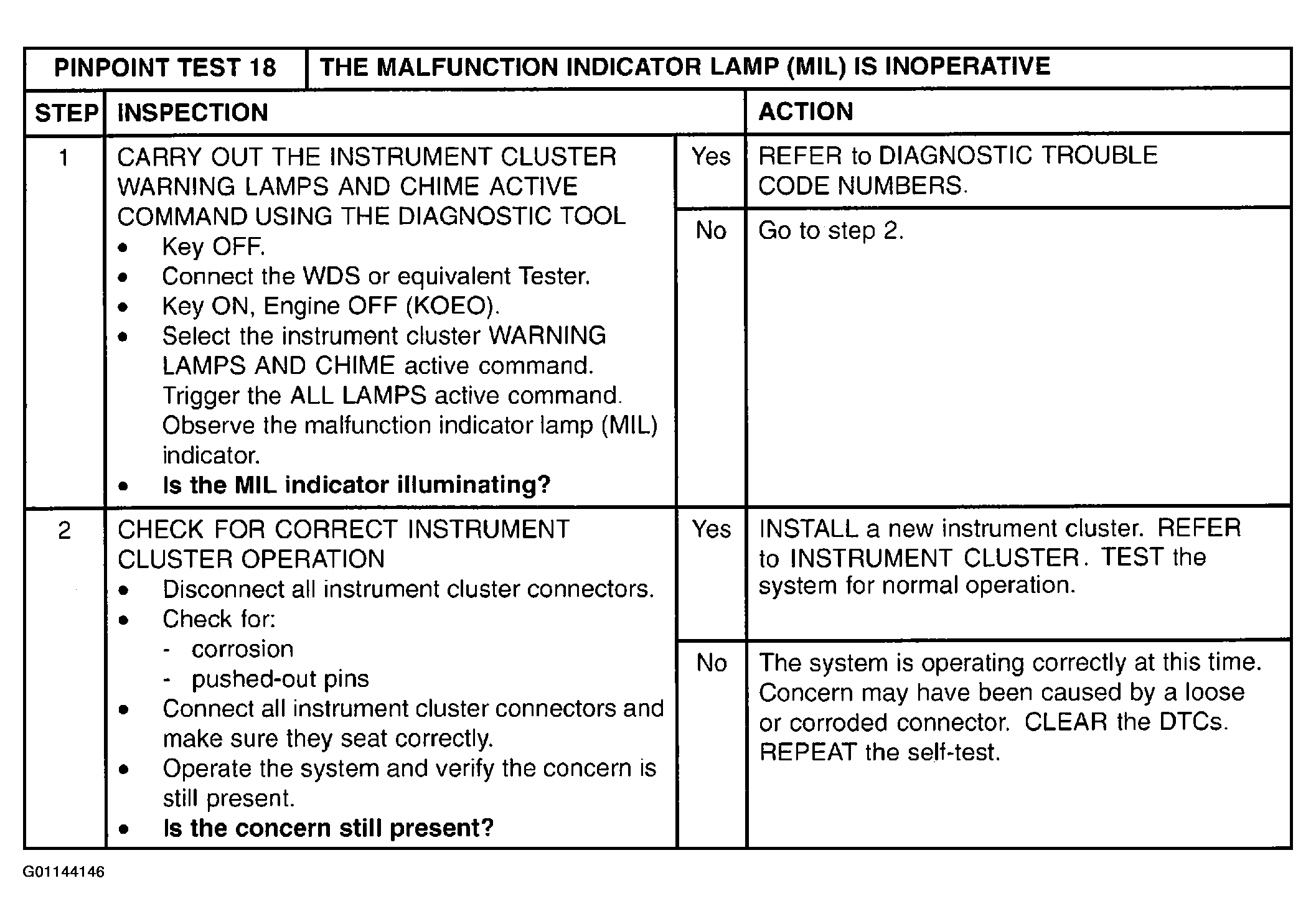

Fig 1: Pinpoint Test 18: The Malfunction Indicator Lamp (MIL) Is Inoperative

G01144146

Courtesy of MAZDA MOTORS CORP.
