Pinpoint Test 17: The High Beam Indicator Is Inoperative

CAUTION:

• Use the correct probe adapter (s) when making measurements. Failure to use the correct probe adapters) may damage the connector.

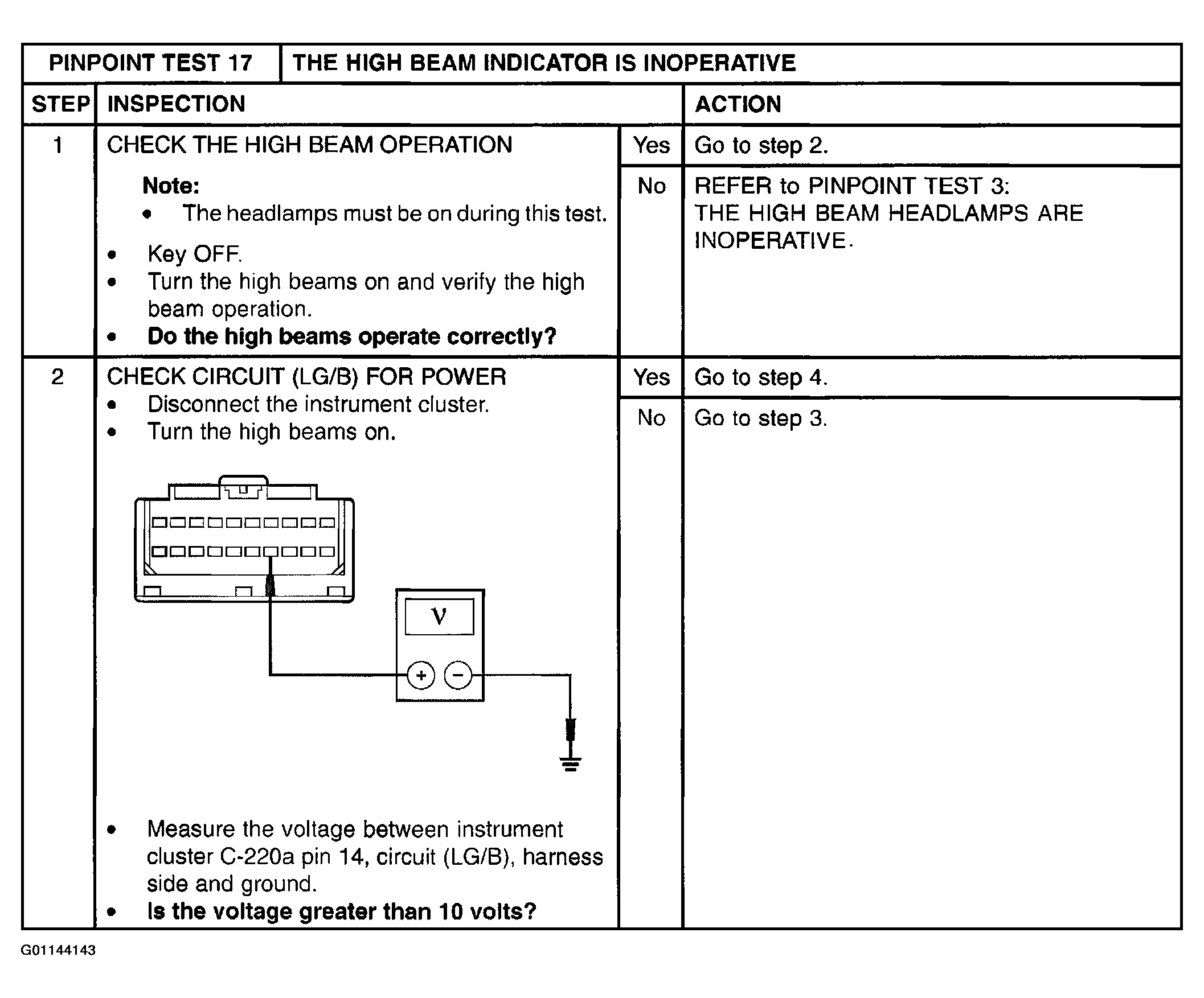

Fig 1: Pinpoint Test 17: The High Beam Indicator Is Inoperative (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

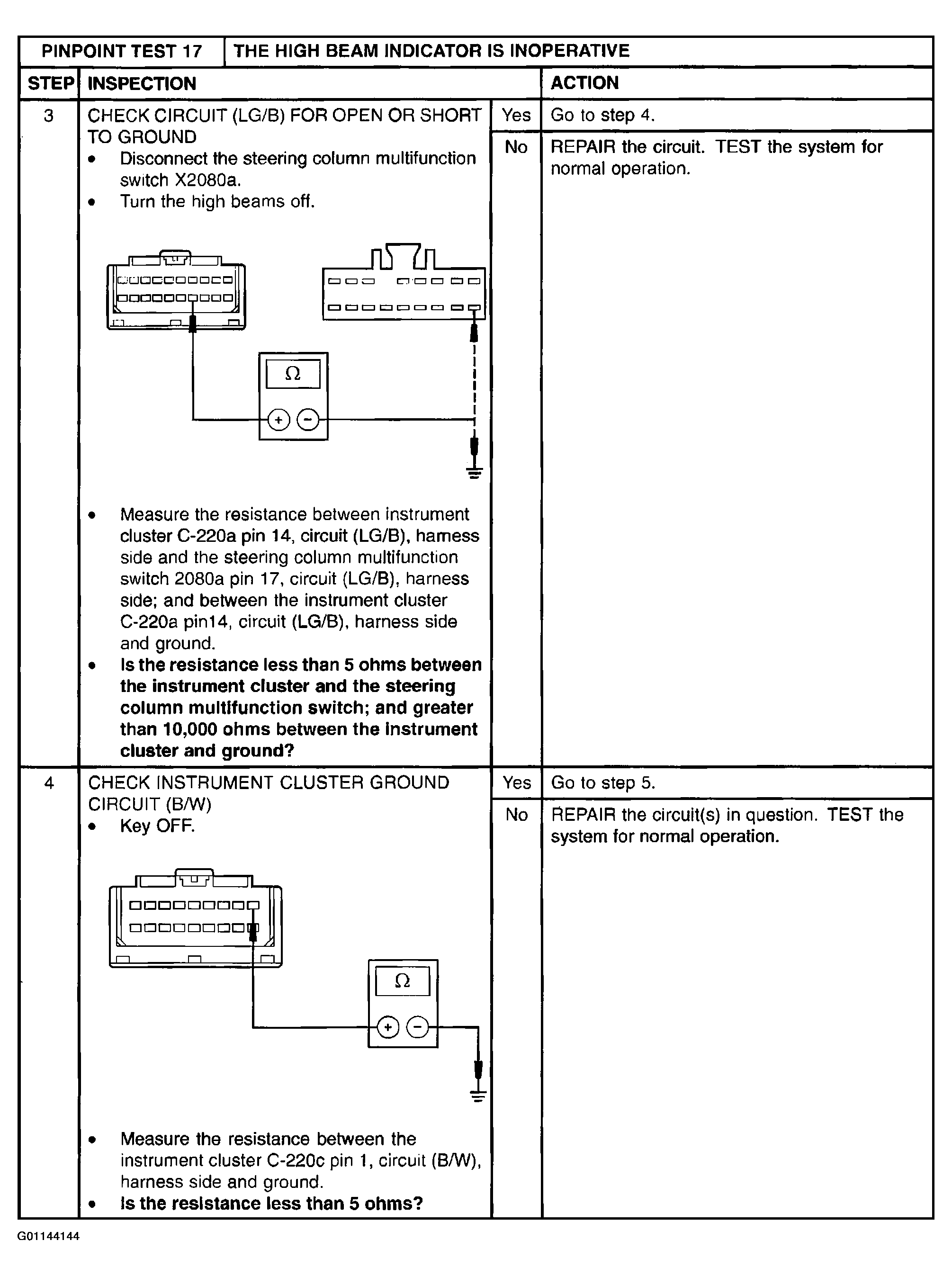

Fig 2: Pinpoint Test 17: The High Beam Indicator Is Inoperative (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

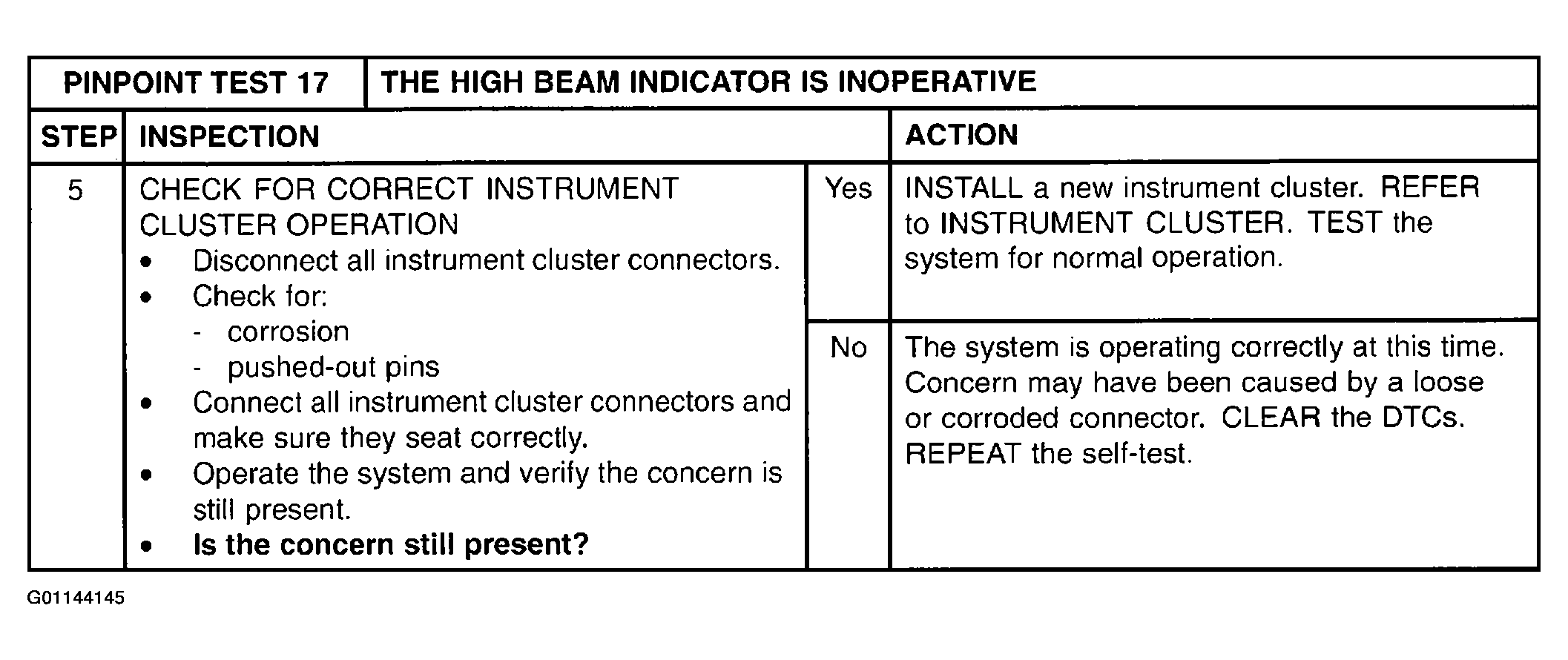

Fig 3: Pinpoint Test 17: The High Beam Indicator Is Inoperative (Step 5)

Courtesy of MAZDA MOTORS CORP.
