Pinpoint Test 15: The LH Turn Indicator Is Inoperative/Always On

CAUTION:

• Use the correct probe adapters) when making measurements. Failure to use the correct probe adapters) may damage the connector.

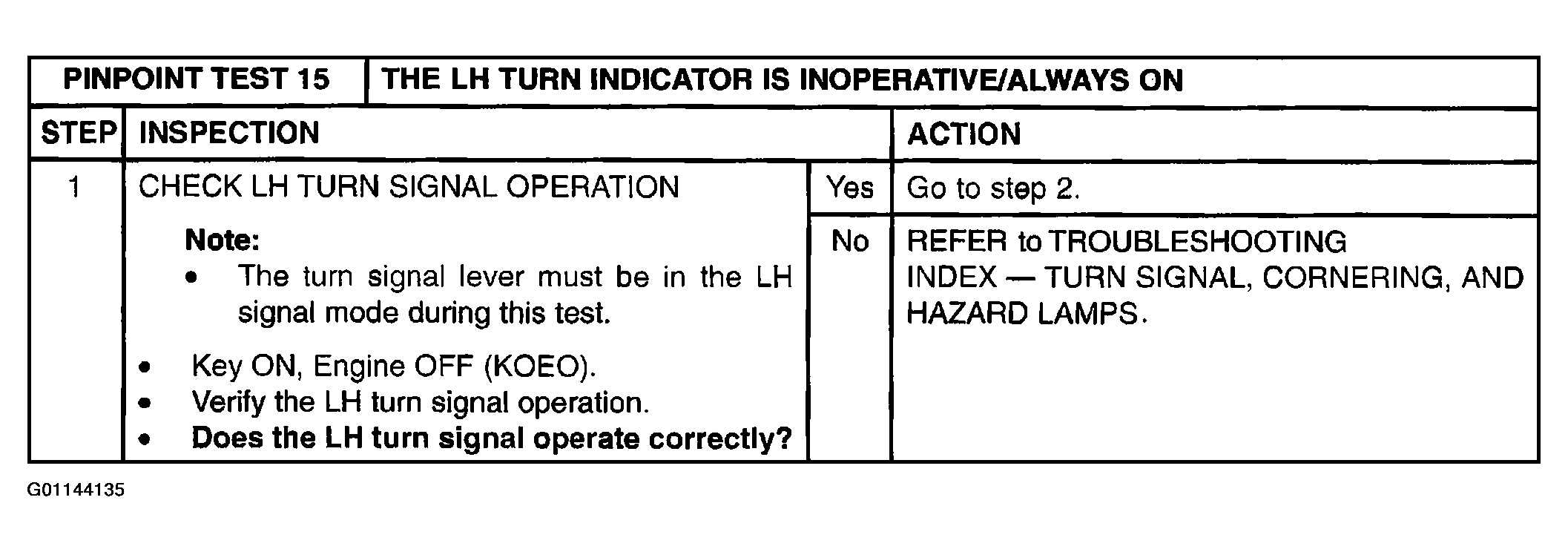

Fig 1: Pinpoint Test 15: The LH Turn Indicator Is Inoperative/Always On (Step 1)

Courtesy of MAZDA MOTORS CORP.

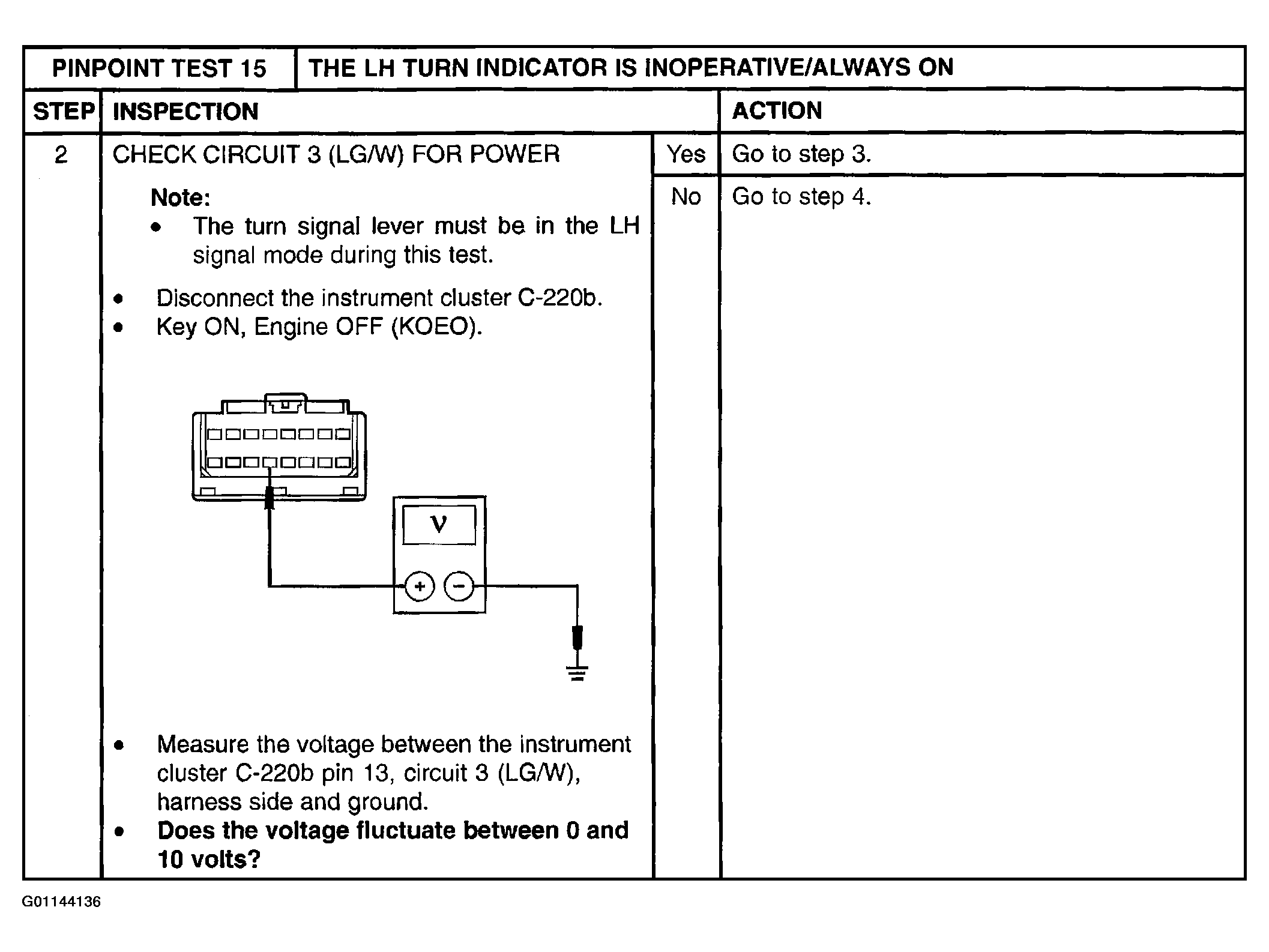

Fig 2: Pinpoint Test 15: The LH Turn Indicator Is Inoperative/Always On (Step 2)

Courtesy of MAZDA MOTORS CORP.

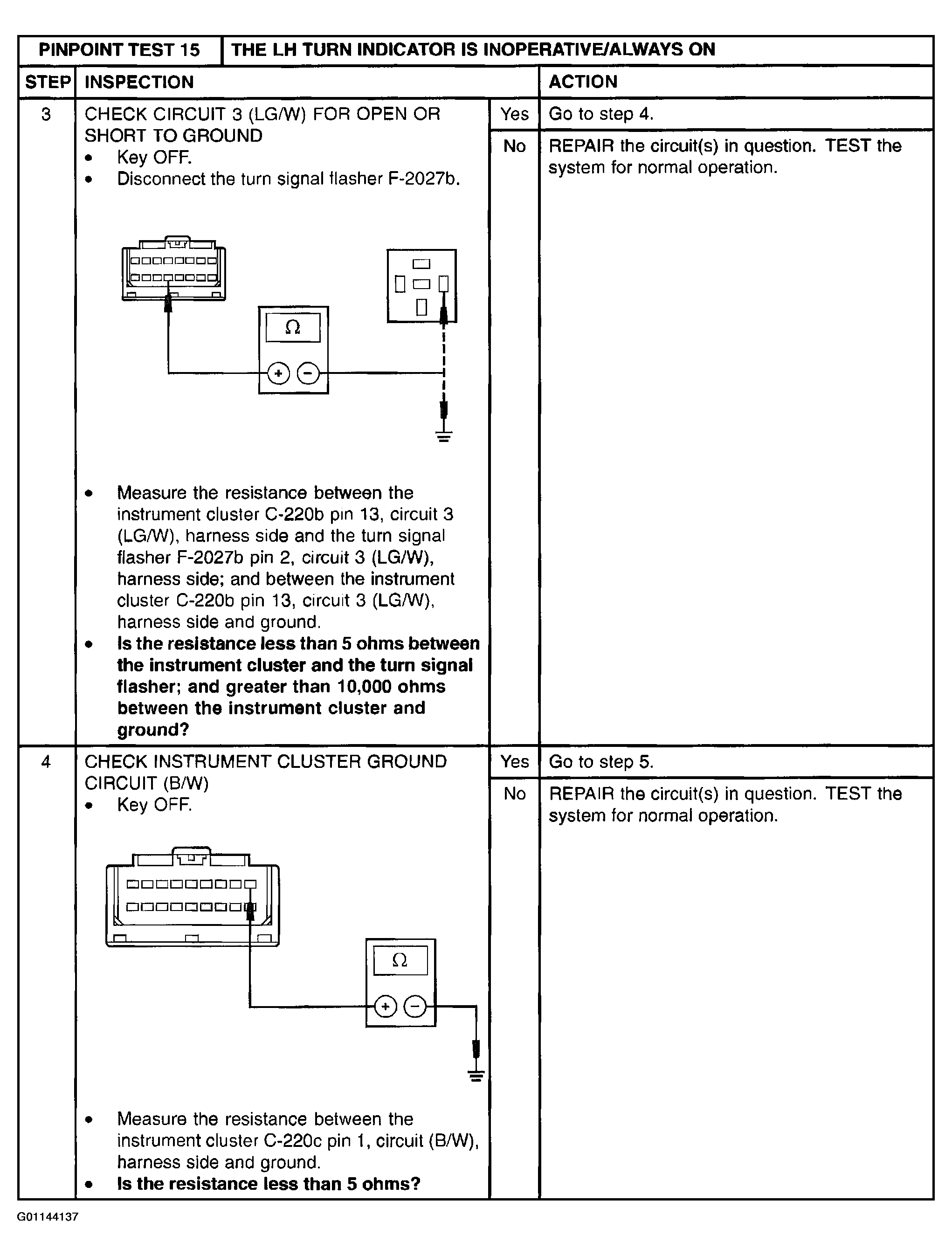

Fig 3: Pinpoint Test 15: The LH Turn Indicator Is Inoperative/Always On (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

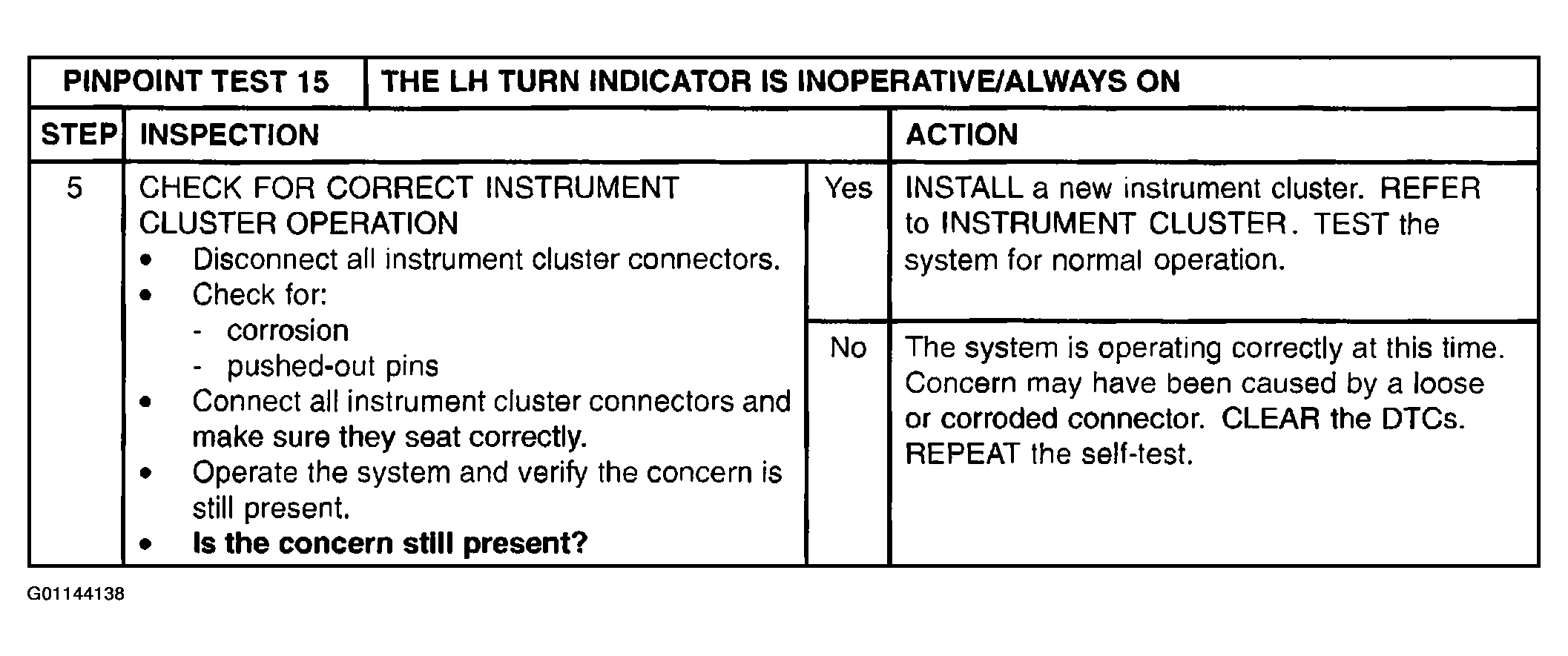

Fig 4: Pinpoint Test 15: The LH Turn Indicator Is Inoperative/Always On (Step 5)

Courtesy of MAZDA MOTORS CORP.
