Pinpoint Test 13: The Anti-Lock Brake Indicator Is Inoperative

CAUTION:

• Use the correct probe adapters) when making measurements. Failure to use the correct probe adapters) may damage the connector.

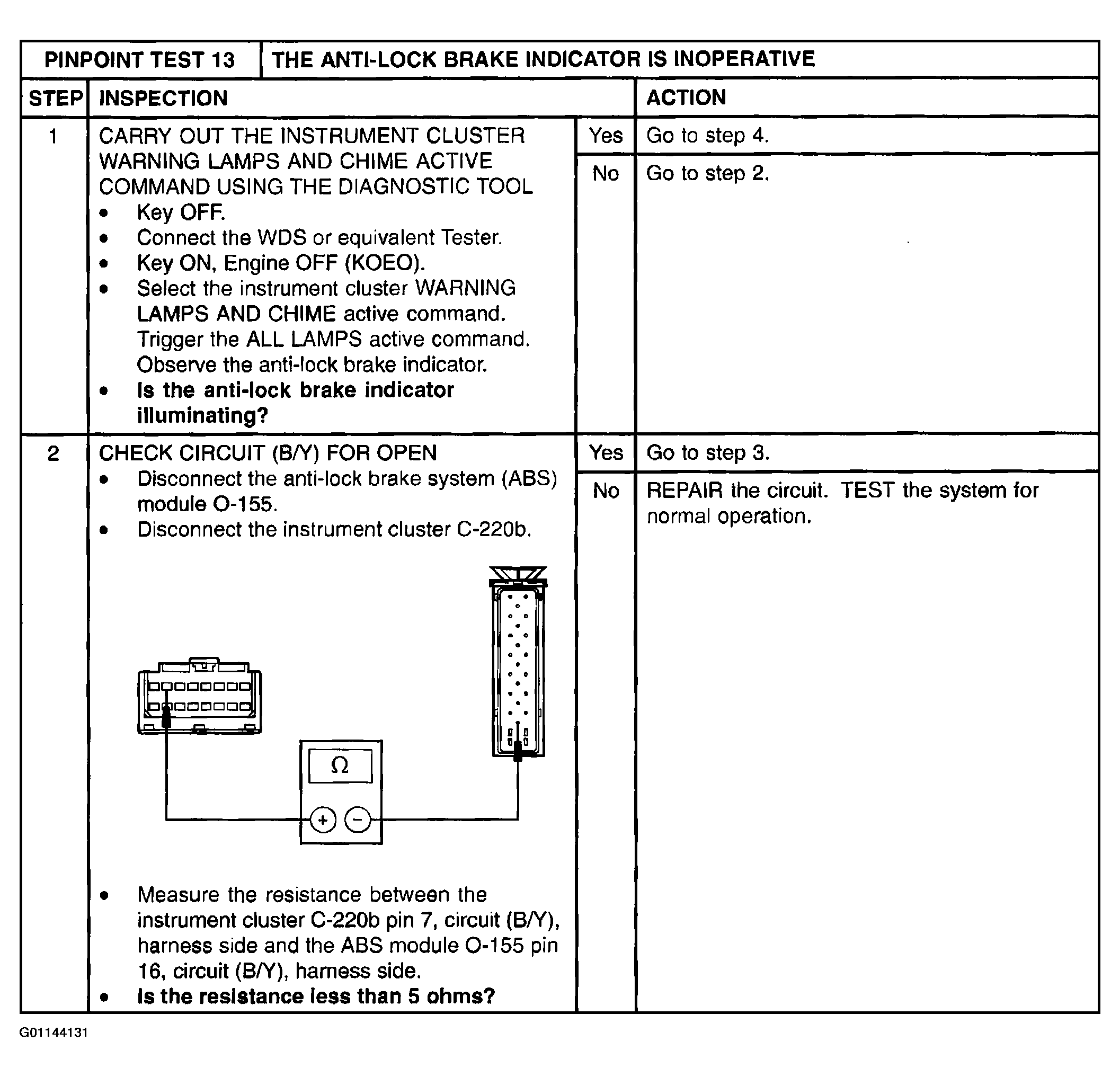

Fig 1: Pinpoint Test 13: The Anti-Lock Brake Indicator Is Inoperative (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

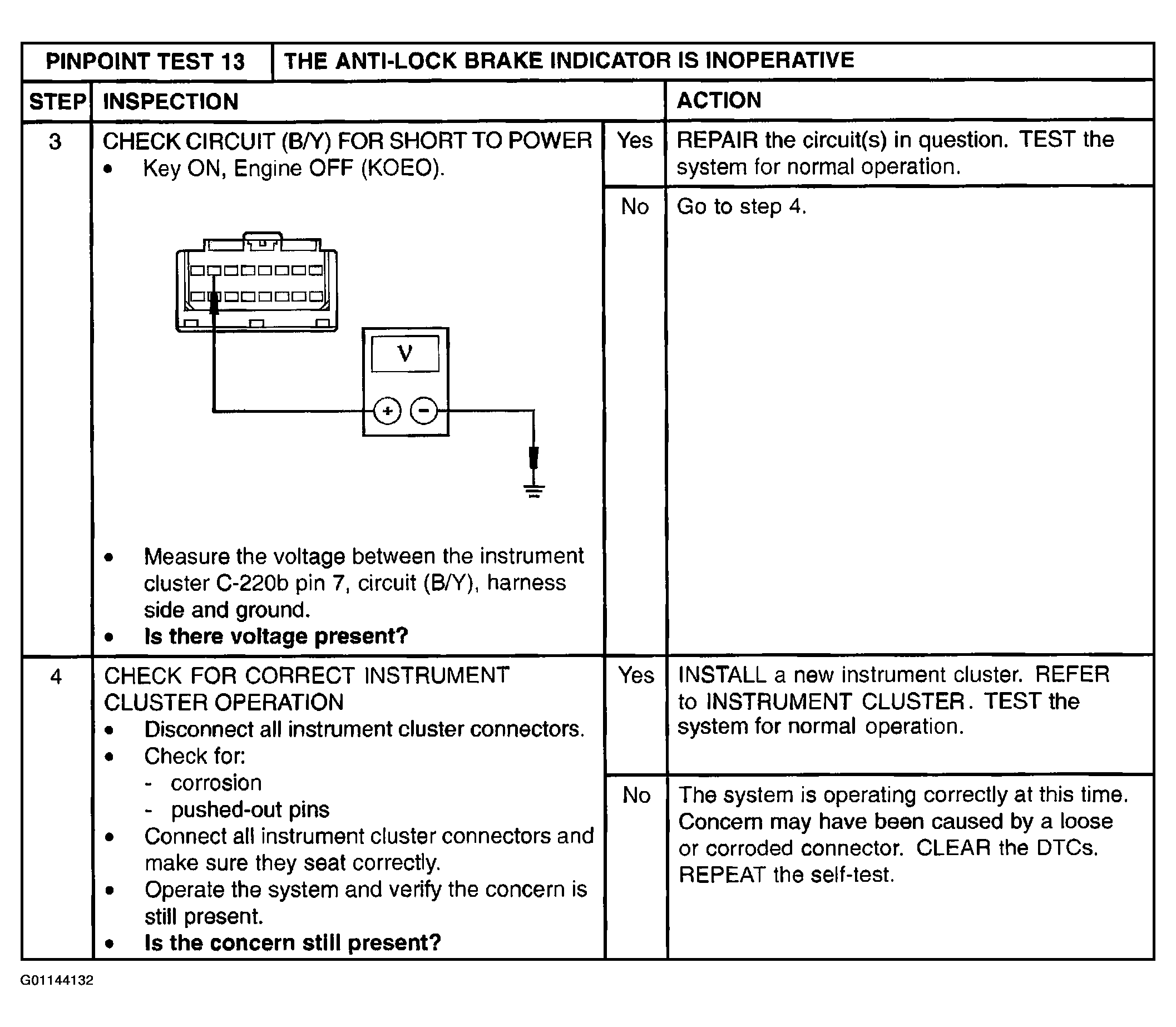

Fig 2: Pinpoint Test 13: The Anti-Lock Brake Indicator Is Inoperative (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.
