Pinpoint Test 11: The Charge System Warning Indicator Is Never On

CAUTION:

• Use correct the probe adapter (s) when making measurements. Failure to use the correct probe adapters) may damage the connector.

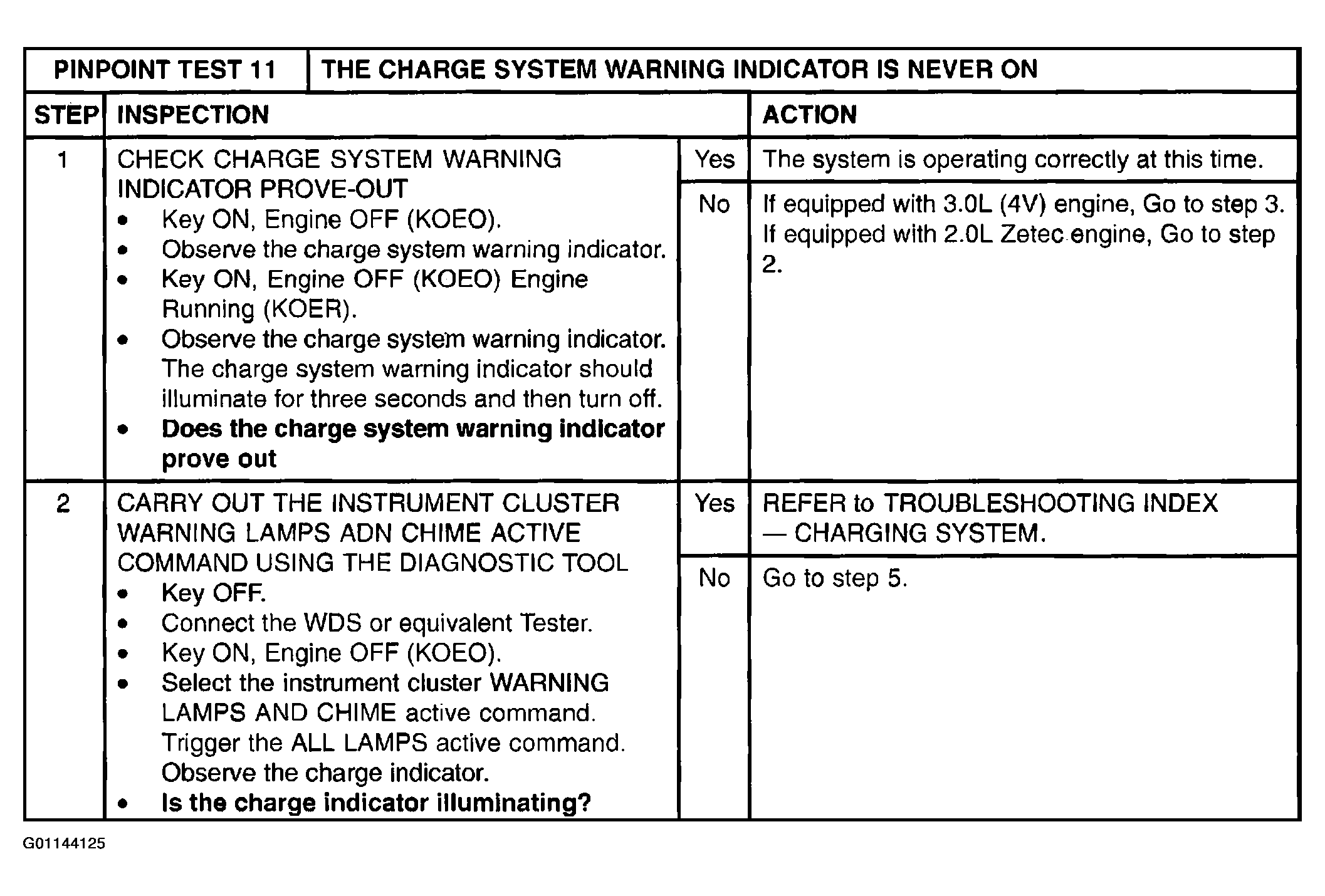

Fig 1: Pinpoint Test 11: The Charge System Warning Indicator Is Never On (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

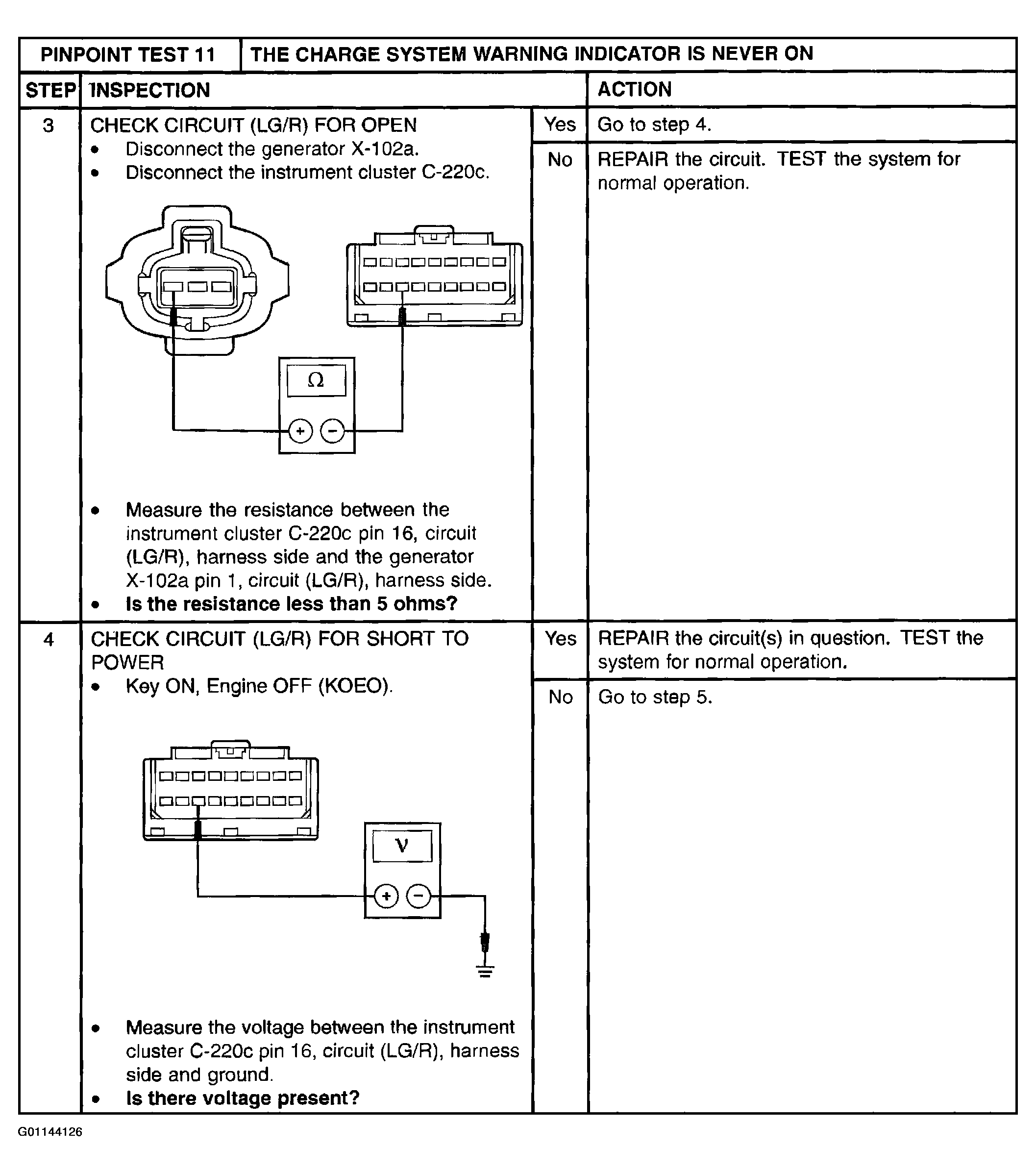

Fig 2: Pinpoint Test 11: The Charge System Warning Indicator Is Never On (Steps 3-4)

Courtesy of MAZDA MOTORS CORP.

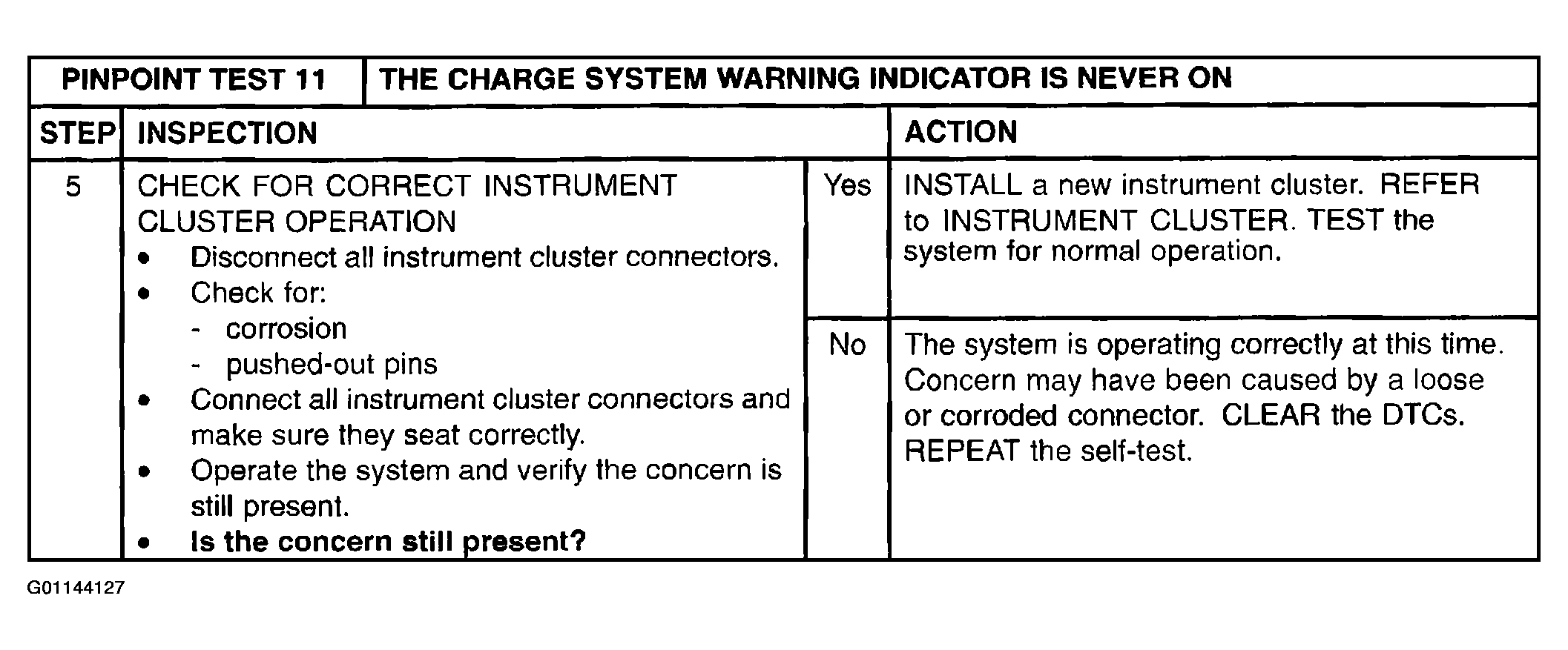

Fig 3: Pinpoint Test 11: The Charge System Warning Indicator Is Never On (Step 5)

Courtesy of MAZDA MOTORS CORP.
