Pinpoint Test 10: The Theft Indicator Is Inoperative

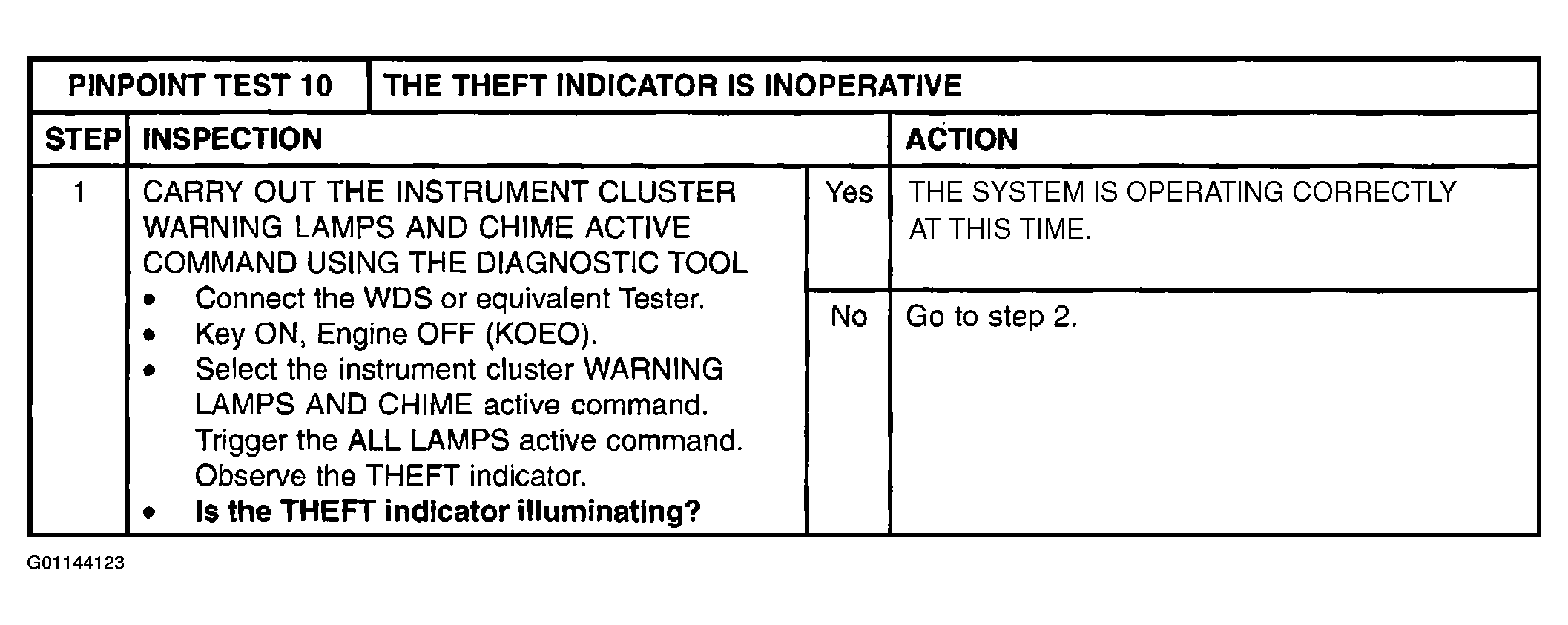

Fig 1: Pinpoint Test 10: The Theft Indicator Is Inoperative (Step 1)
G01144123Courtesy of MAZDA MOTORS CORP.

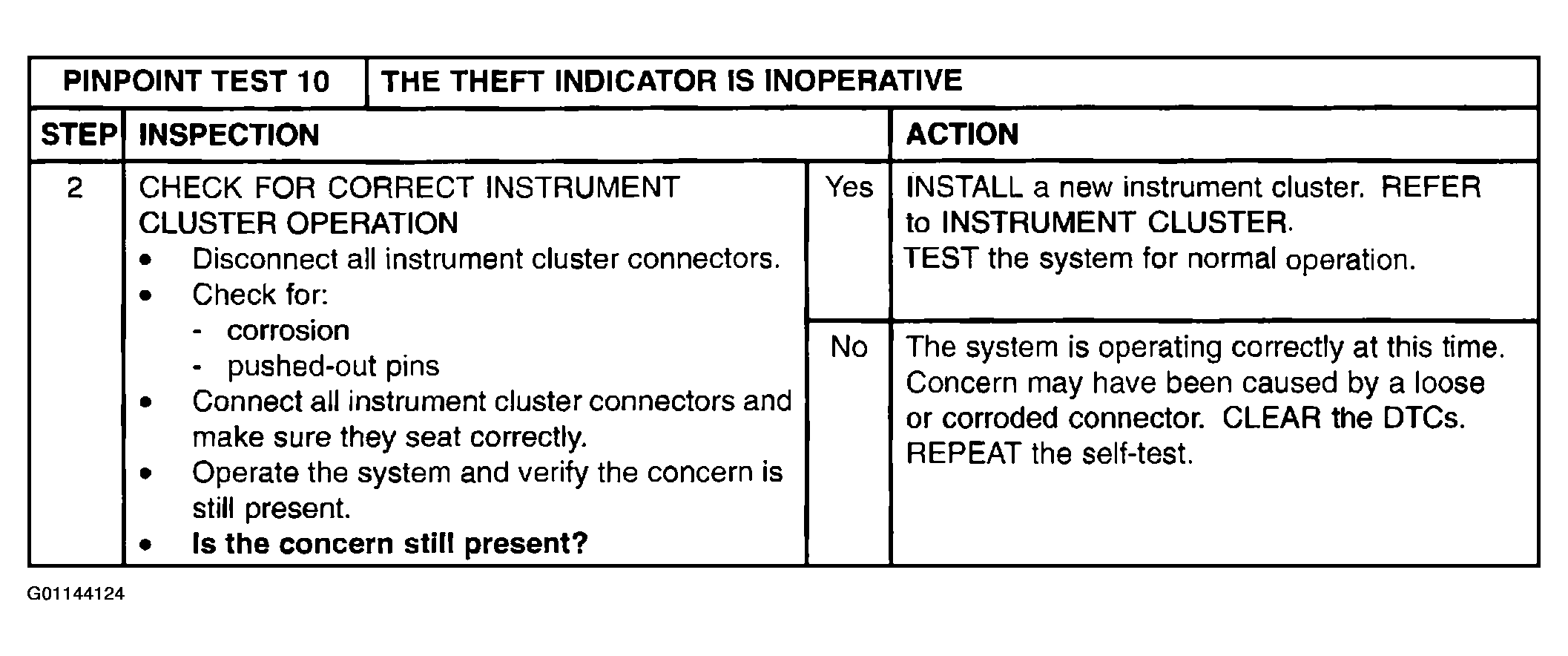

Fig 2: Pinpoint Test 10: The Theft Indicator Is Inoperative (Step 2)
G01144124Courtesy of MAZDA MOTORS CORP.
