Pinpoint Test 1: No Communication With The Instrument Cluster

CAUTION:

• Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

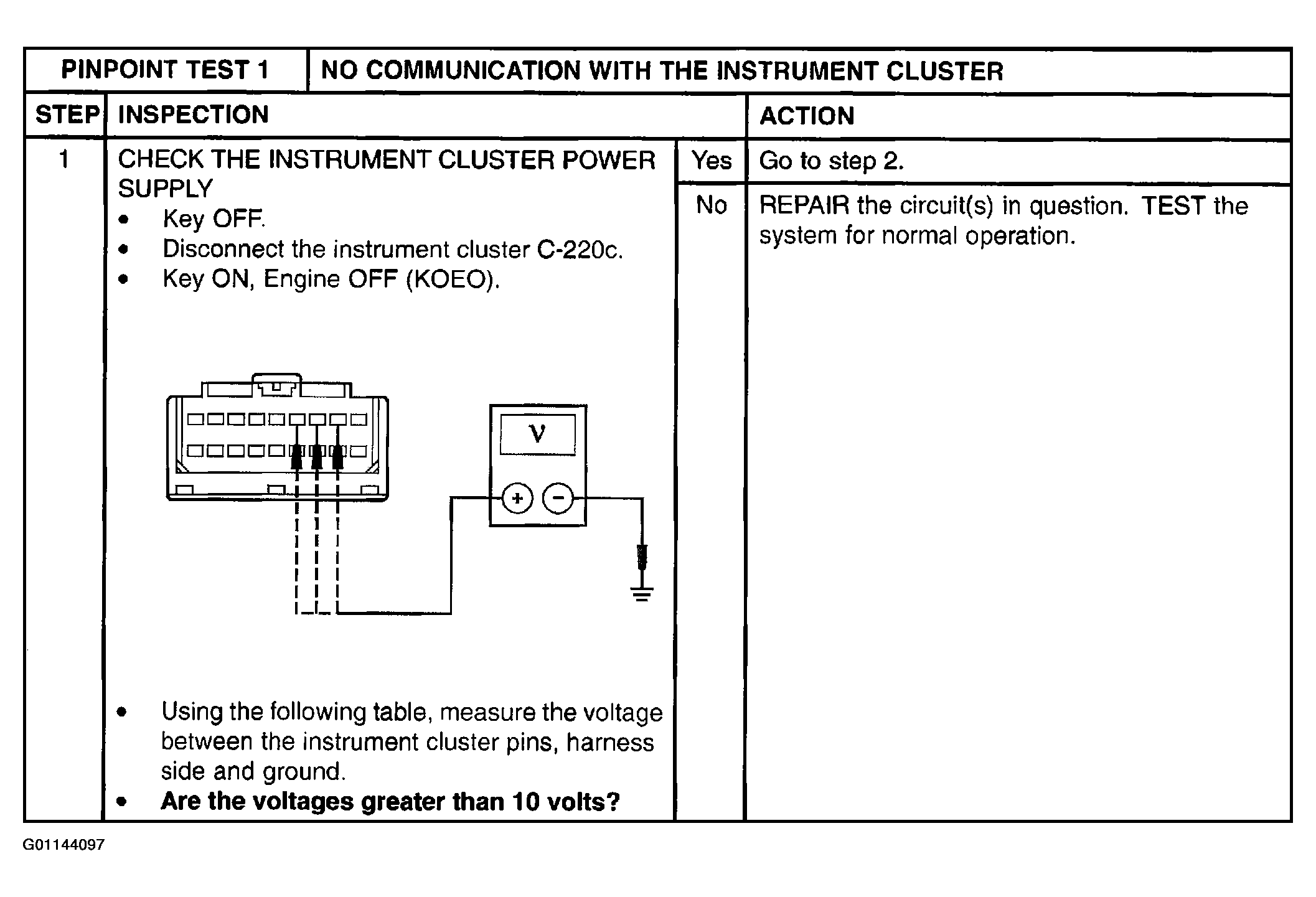

Fig 1: Pinpoint Test 1: No Communication With The Instrument Cluster (Step 1)

Courtesy of MAZDA MOTORS CORP.

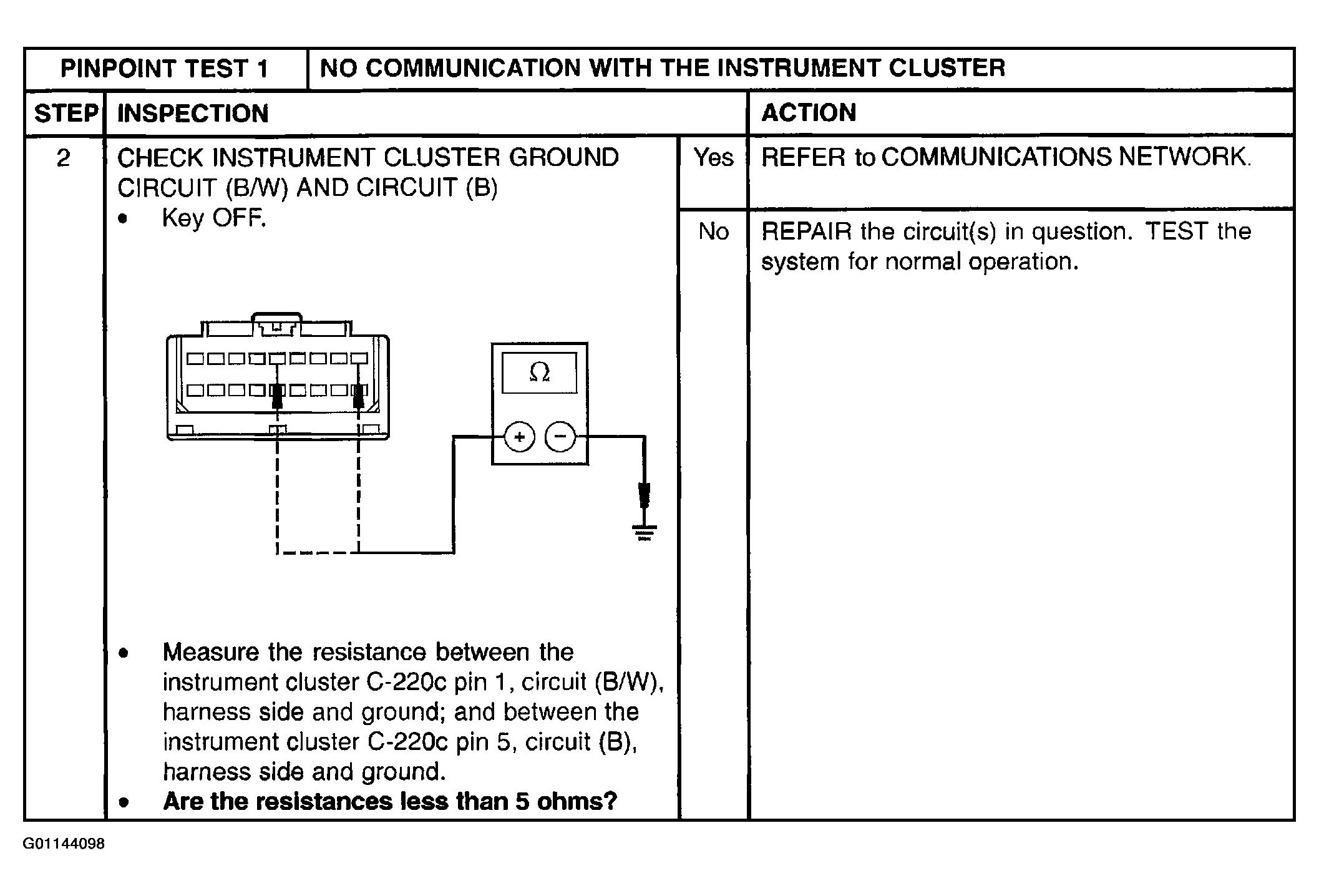

Fig 2: Pinpoint Test 1: No Communication With The Instrument Cluster (Step 2)

Courtesy of MAZDA MOTORS CORP.

Fig 3: Pinpoint Test 1: IC Connector Identification

Courtesy of MAZDA MOTORS CORP.
