Instrument Cluster Self-Diagnostic Mode

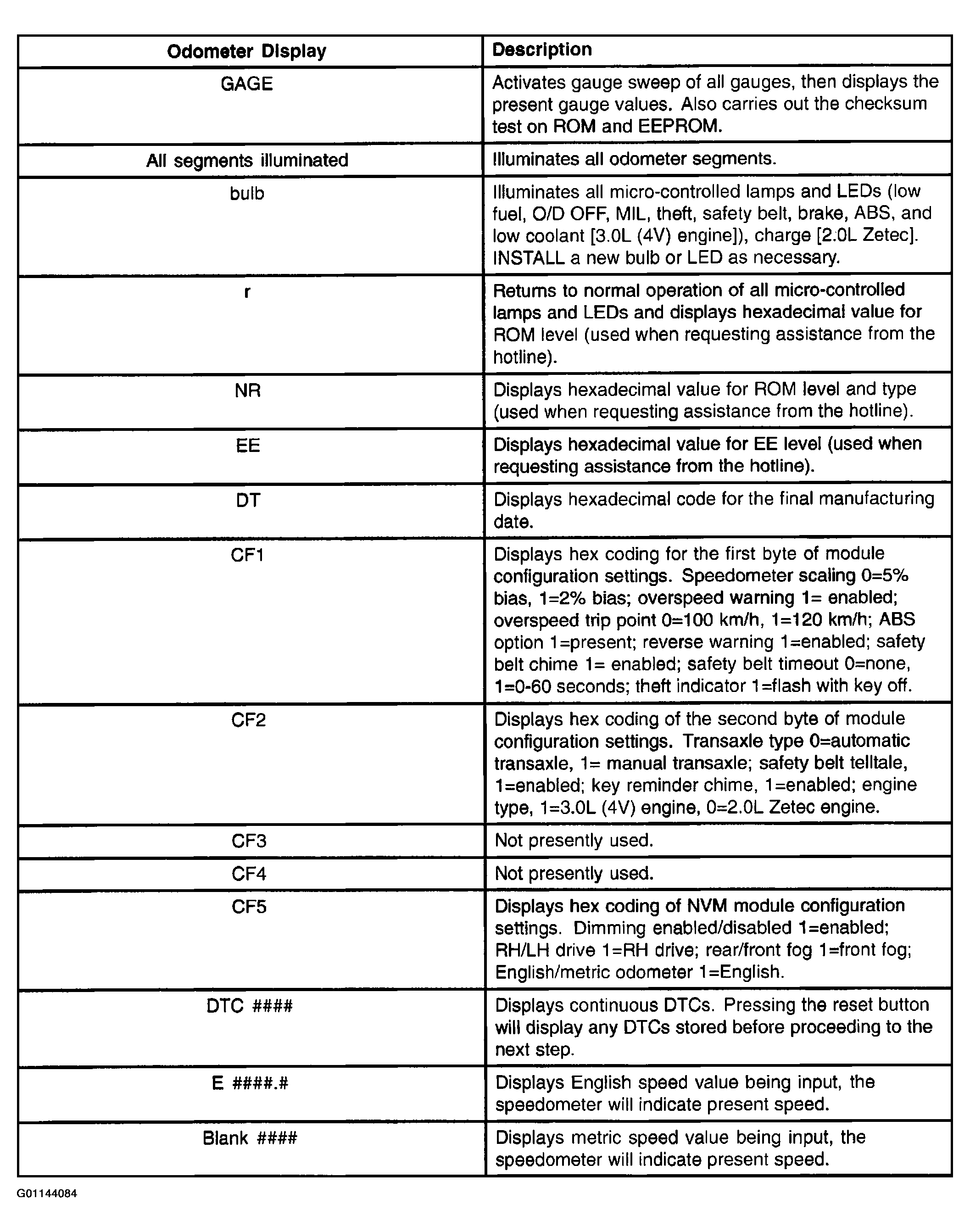

Fig 1: Instrument Cluster Self-Diagnostic Mode (1 Of 4)
G01144084Courtesy of MAZDA MOTORS CORP.

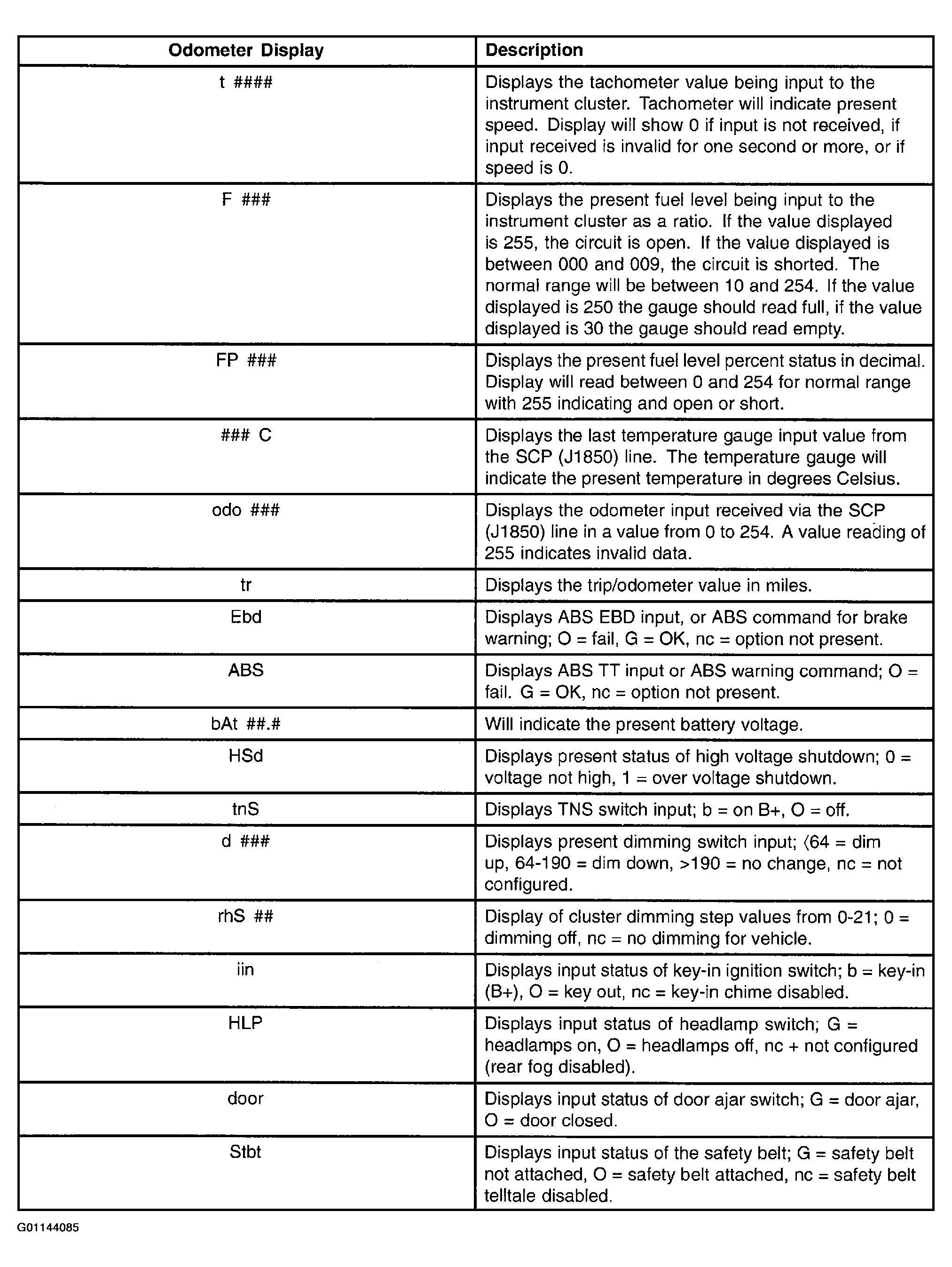

Fig 2: Instrument Cluster Self-Diagnostic Mode (2 Of 4)
G01144085Courtesy of MAZDA MOTORS CORP.

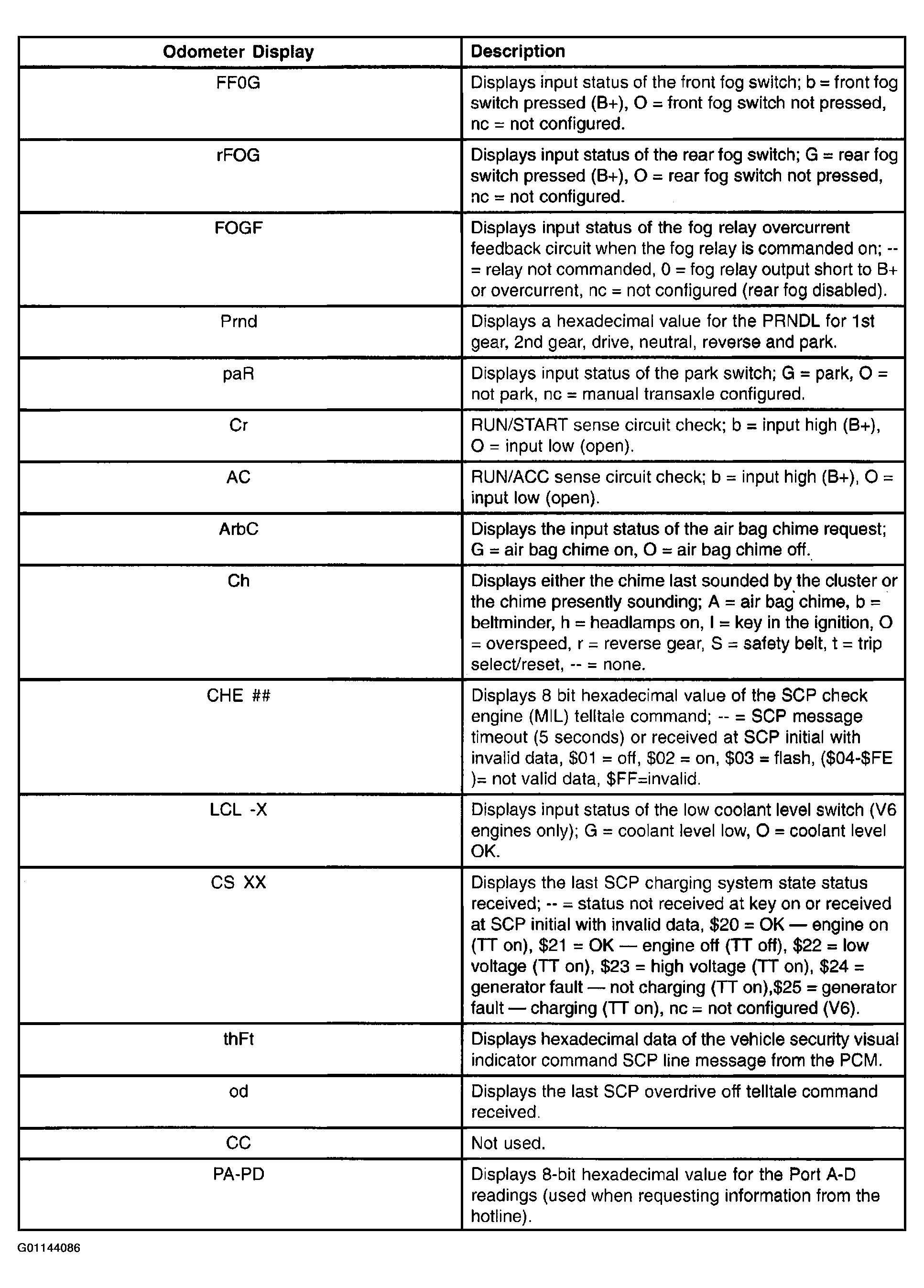

Fig 3: Instrument Cluster Self-Diagnostic Mode (3 Of 4)
G01144086Courtesy of MAZDA MOTORS CORP.

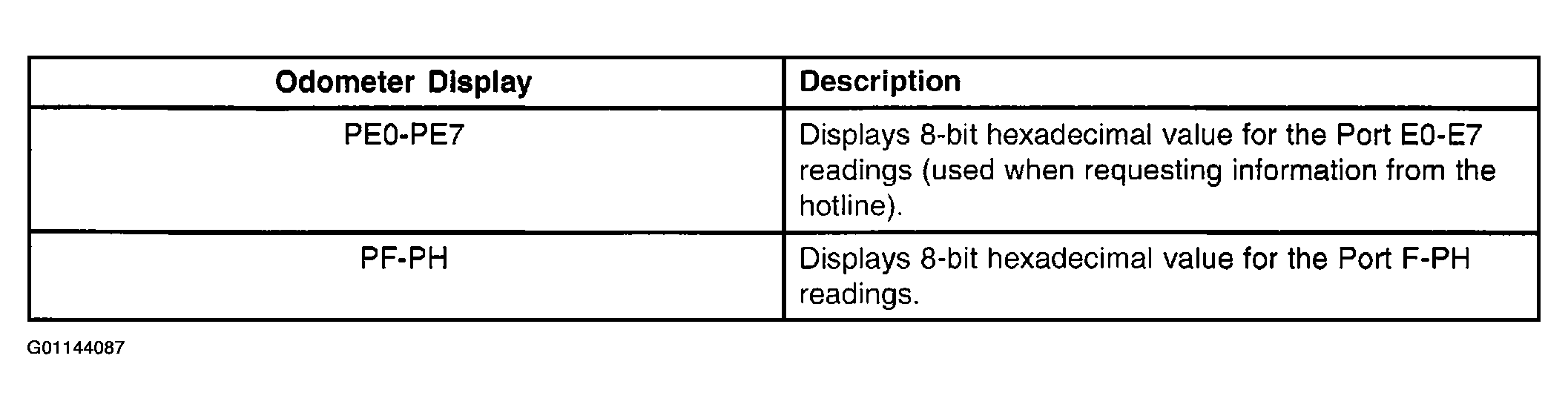

Fig 4: Instrument Cluster Self-Diagnostic Mode (4 Of 4)
G01144087Courtesy of MAZDA MOTORS CORP.
