Instrument Cluster Diagnostic Trouble Code (DTC) Index

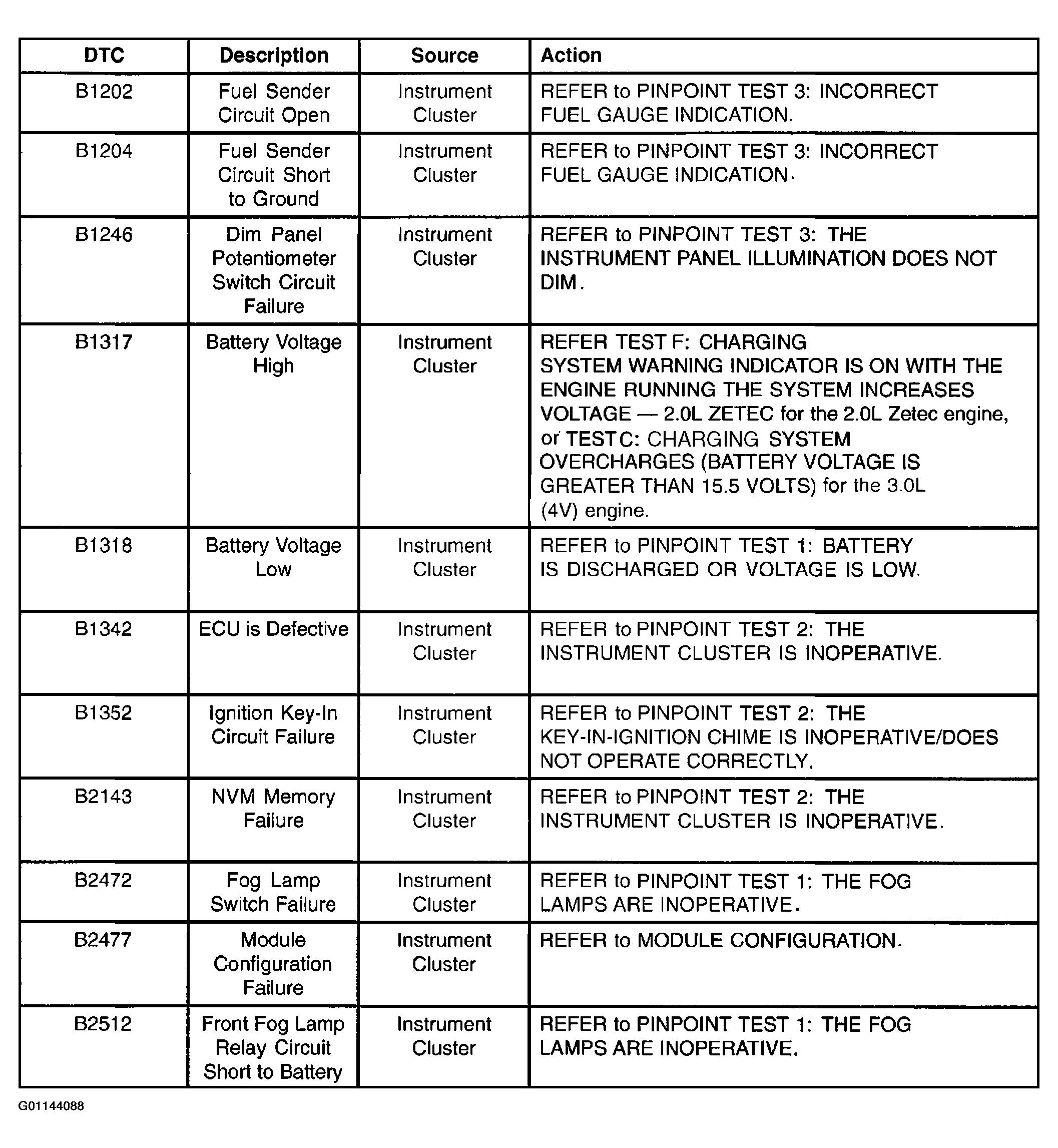

Fig 1: Instrument Cluster Diagnostic Trouble Code (DTC) Index (1 Of 2)
G01144088Courtesy of MAZDA MOTORS CORP.

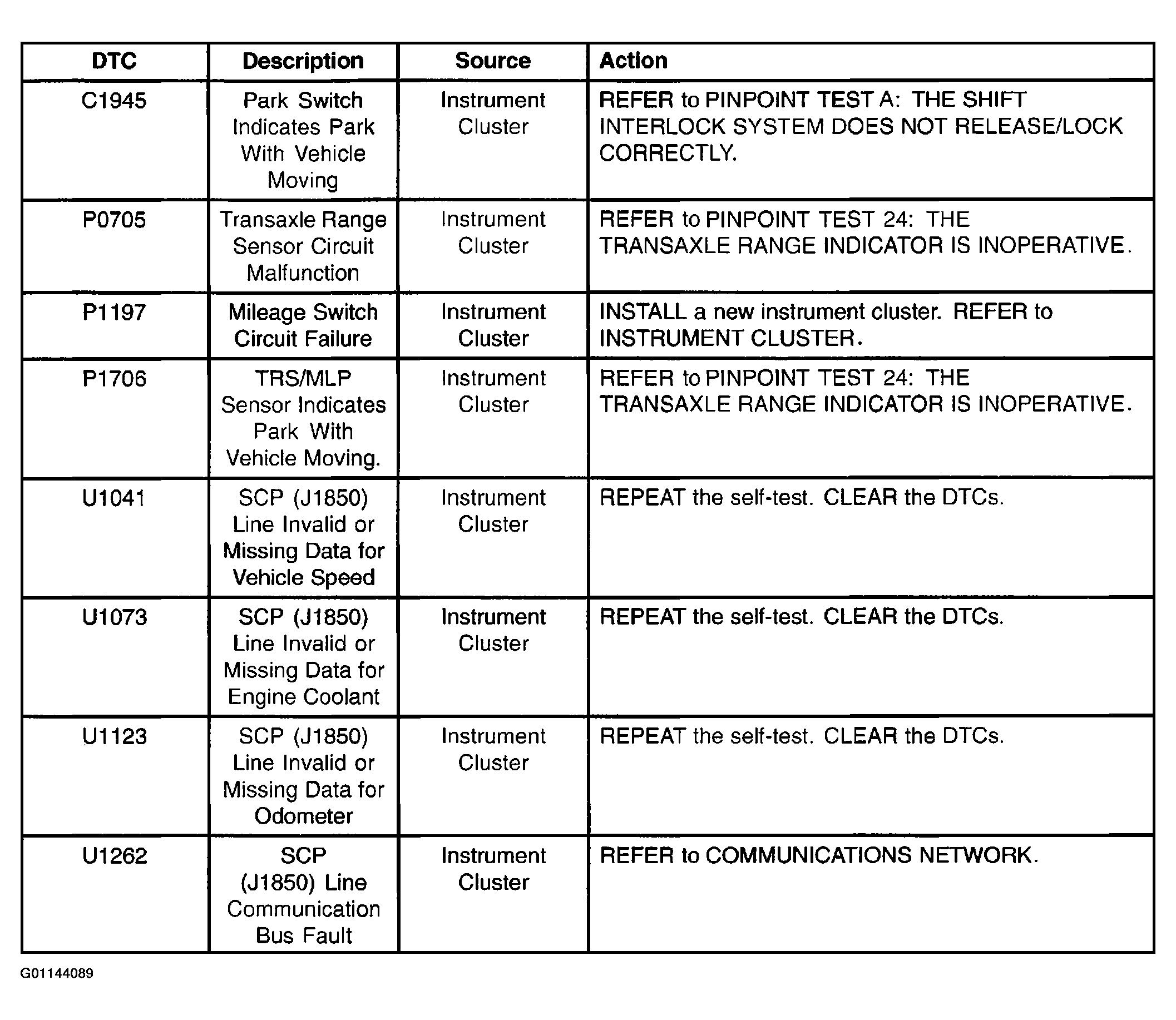

Fig 2: Instrument Cluster Diagnostic Trouble Code (DTC) Index (2 Of 2)
G01144089Courtesy of MAZDA MOTORS CORP.
