Removal and Installation

Disconnect the battery ground cable.

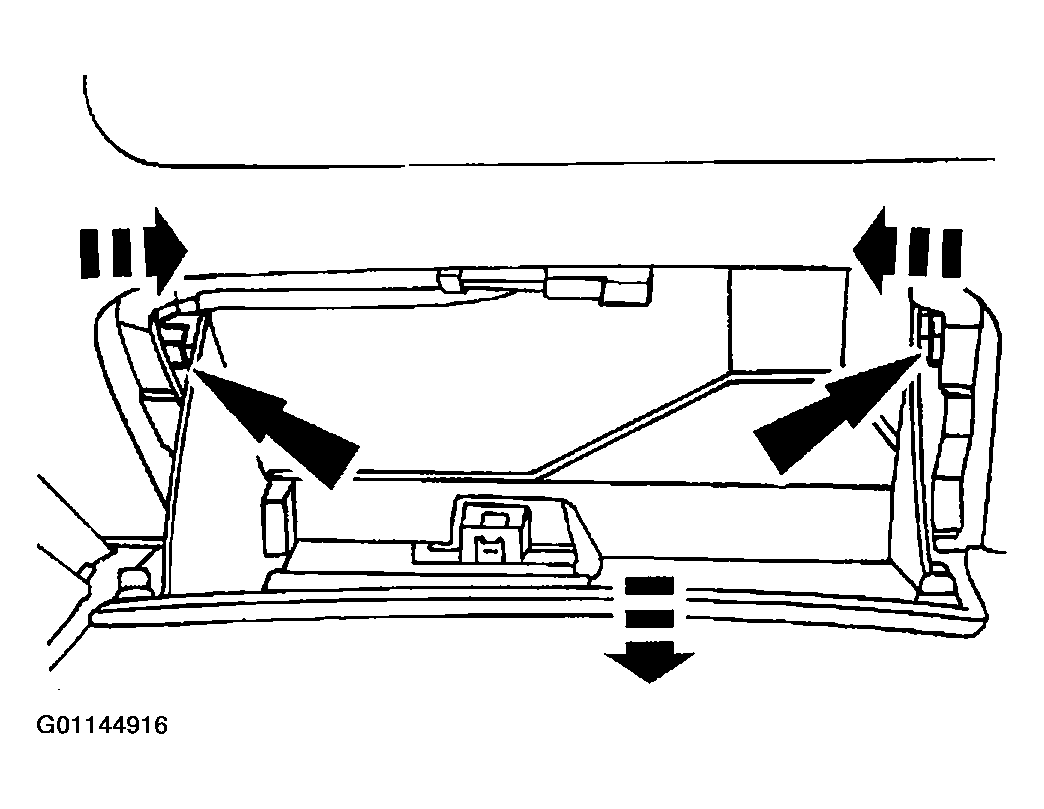

Fig 1: Lowering The Glove Compartment
Courtesy of MAZDA MOTORS CORP.
Lower the glove compartment.
1. Press the glove compartment release tabs inward while pulling downward on the glove compartment.

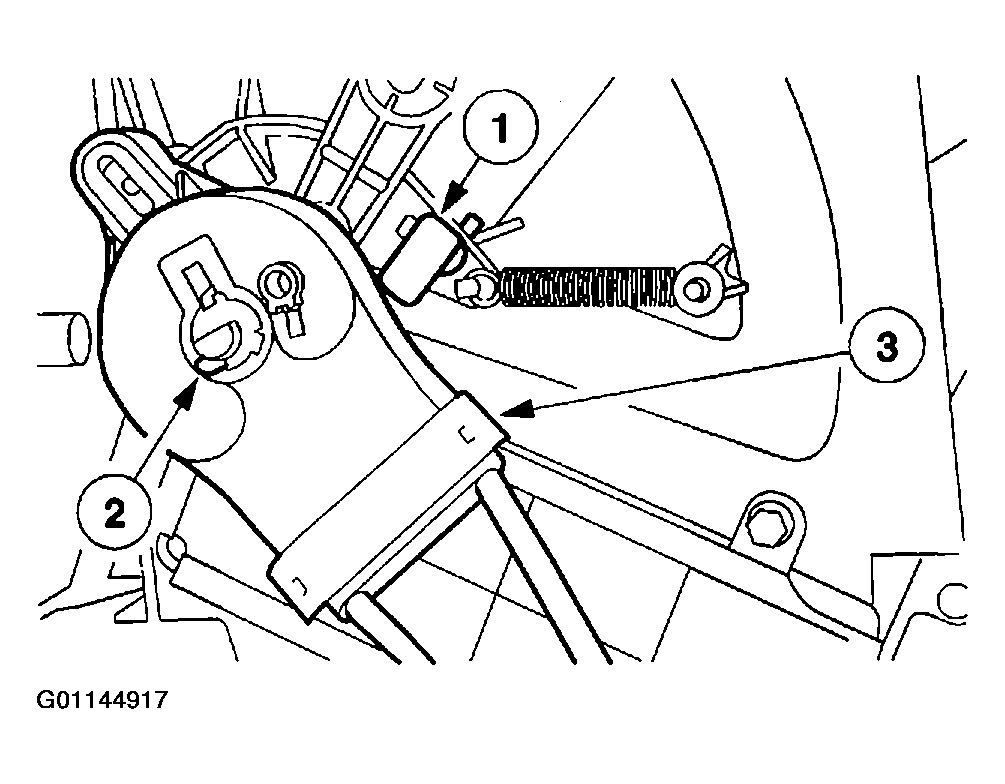

  Fig 2: Disconnecting Climate Control Cable
  Courtesy of MAZDA MOTORS CORP.
Disconnect the climate control cable.
1. Position the locator pin.
2. Release the locking tab.
3. Disconnect the climate control cable from the blend door shaft.

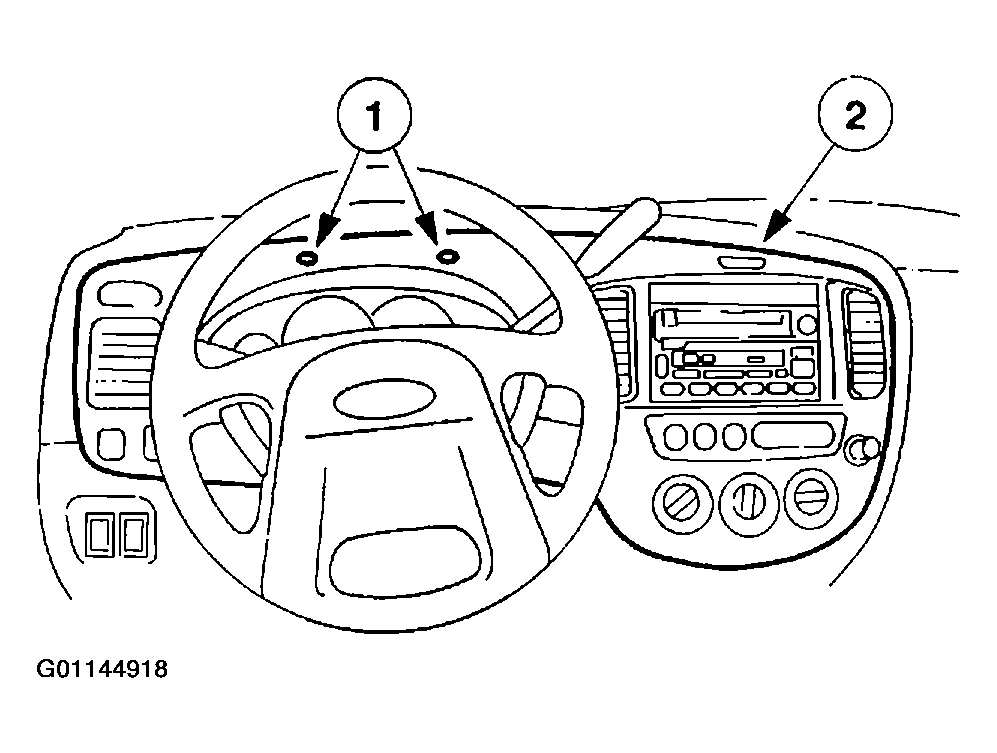

  Fig 3: Removing Instrument Cluster Finish Panel
  Courtesy of MAZDA MOTORS CORP.
Remove the instrument cluster finish panel.
1. Remove the screws.
2. Remove the instrument cluster finish panel.
3. Disconnect the electrical connectors.
To install, reverse the removal procedure.
