Troubleshooting Index - Illumination

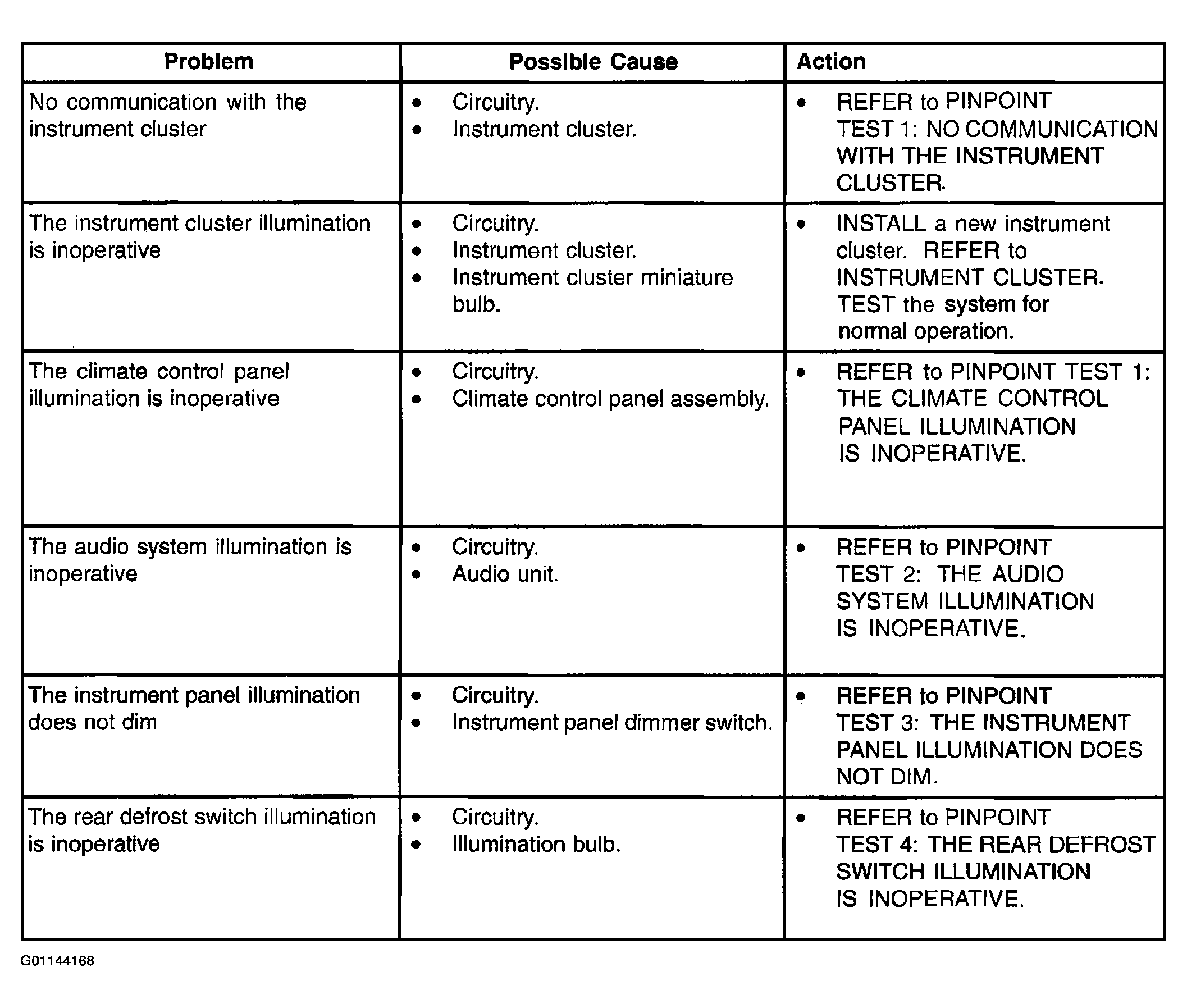

Fig 1: Troubleshooting Index - Illumination (1 Of 2)
G01144168Courtesy of MAZDA MOTORS CORP.

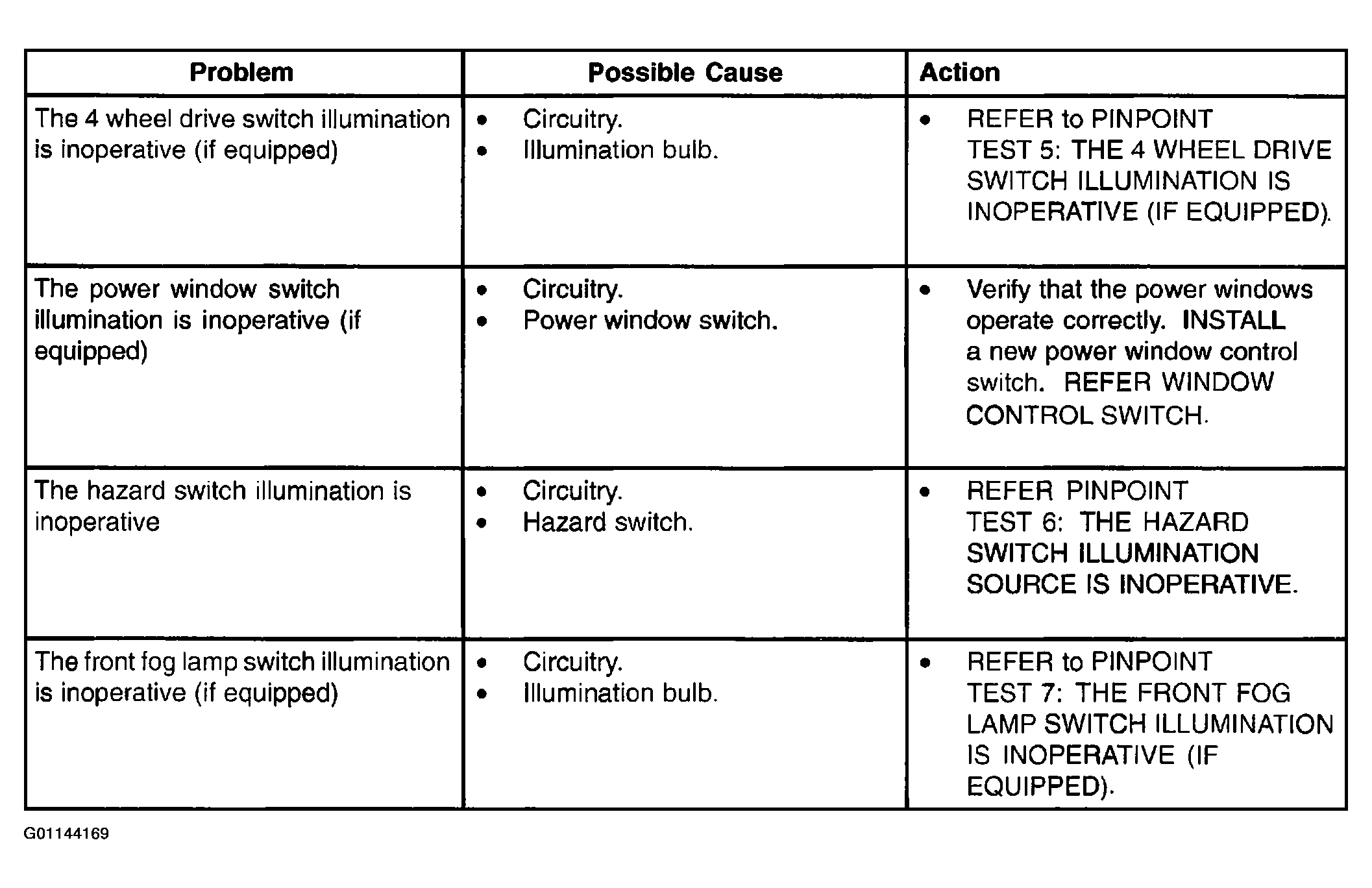

Fig 2: Troubleshooting Index - Illumination (2 Of 2)
G01144169Courtesy of MAZDA MOTORS CORP.
