Pinpoint Test 6: The Hazard Switch Illumination Source Is Inoperative

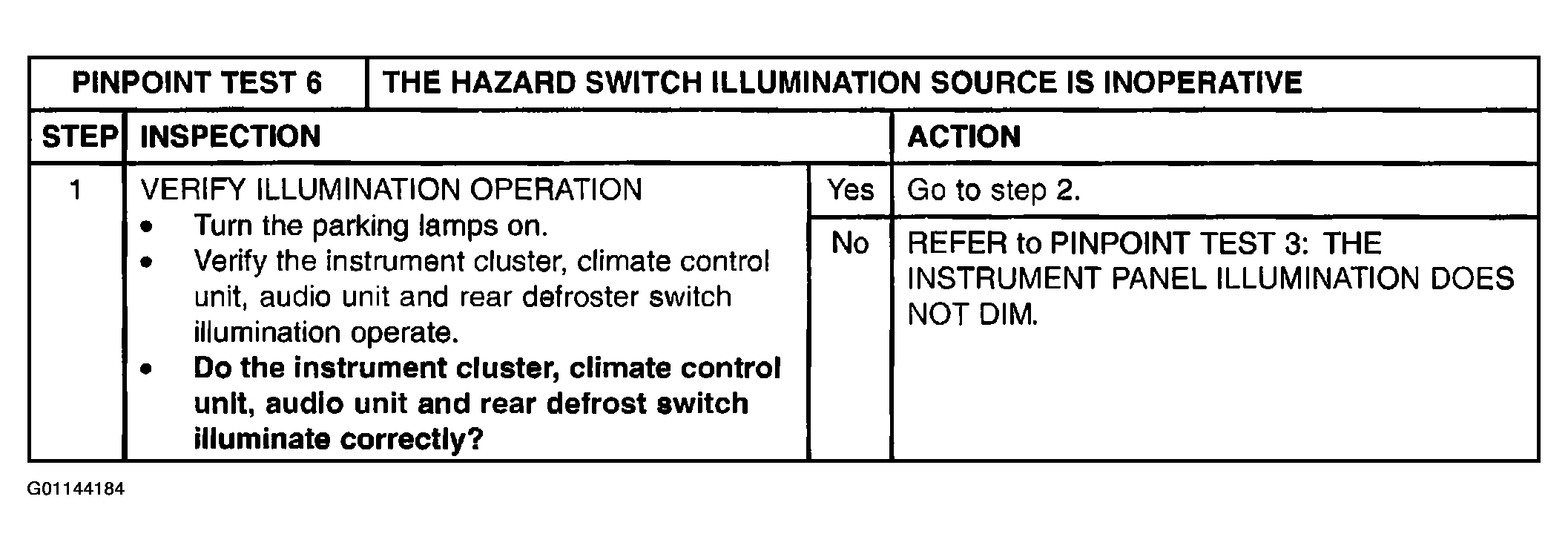

Fig 1: Pinpoint Test 6: The Hazard Switch Illumination Source Is Inoperative (Step 1)
G01144184Courtesy of MAZDA MOTORS CORP.

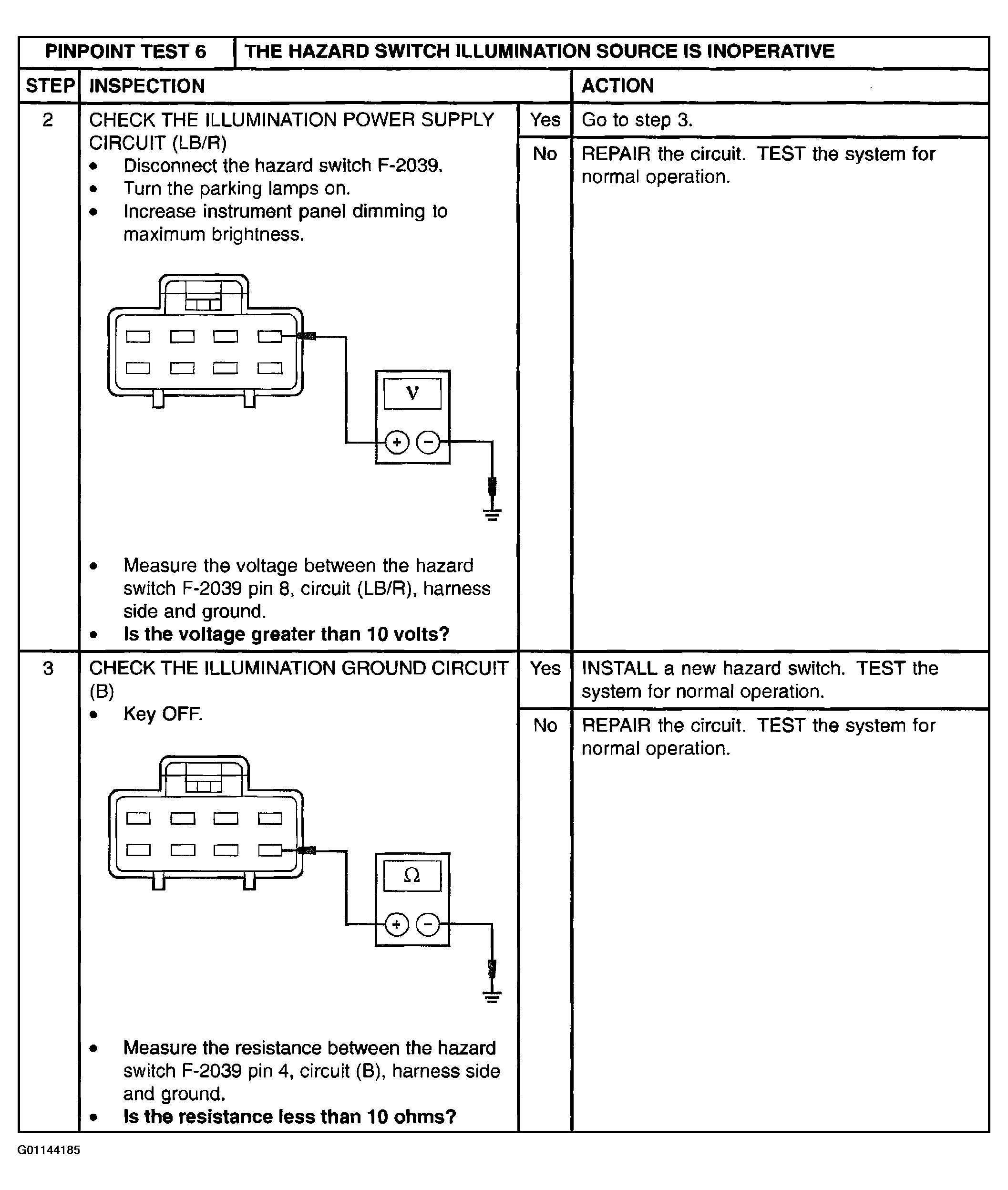

Fig 2: Pinpoint Test 6: The Hazard Switch Illumination Source Is Inoperative (Steps 2-3)
G01144185Courtesy of MAZDA MOTORS CORP.
