Pinpoint Test 4: The Rear Defrost Switch Illumination Is Inoperative

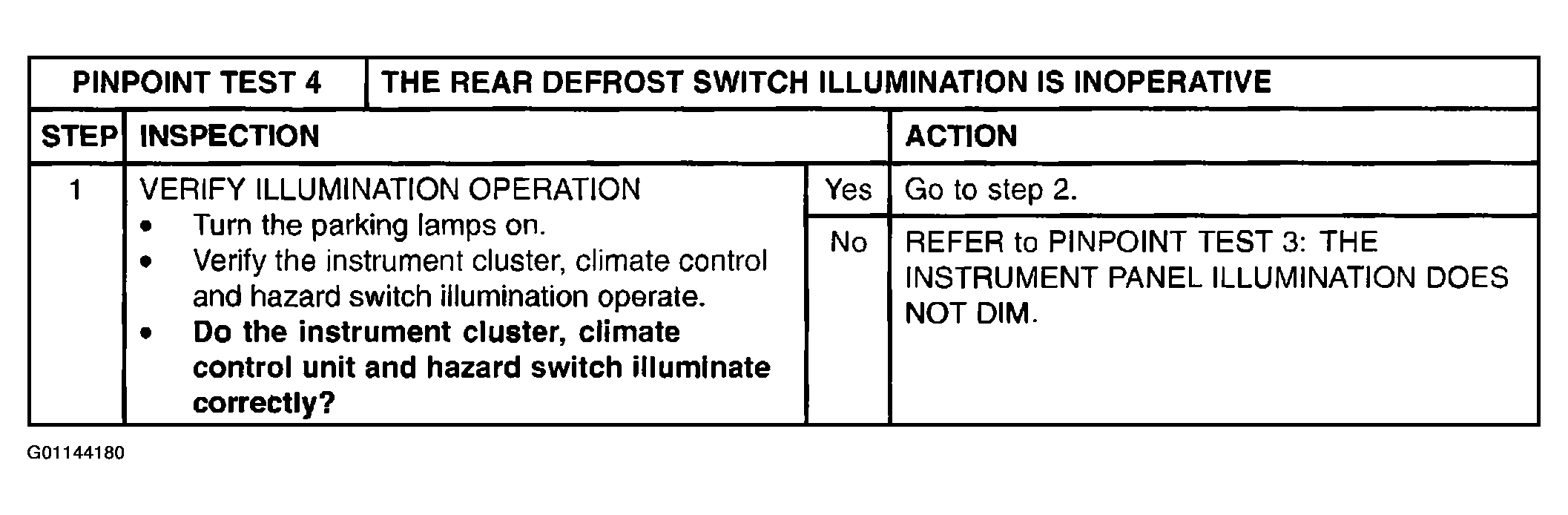

Fig 1: Pinpoint Test 4: The Rear Defrost Switch Illumination Is Inoperative (Step 1)

Courtesy of MAZDA MOTORS CORP.

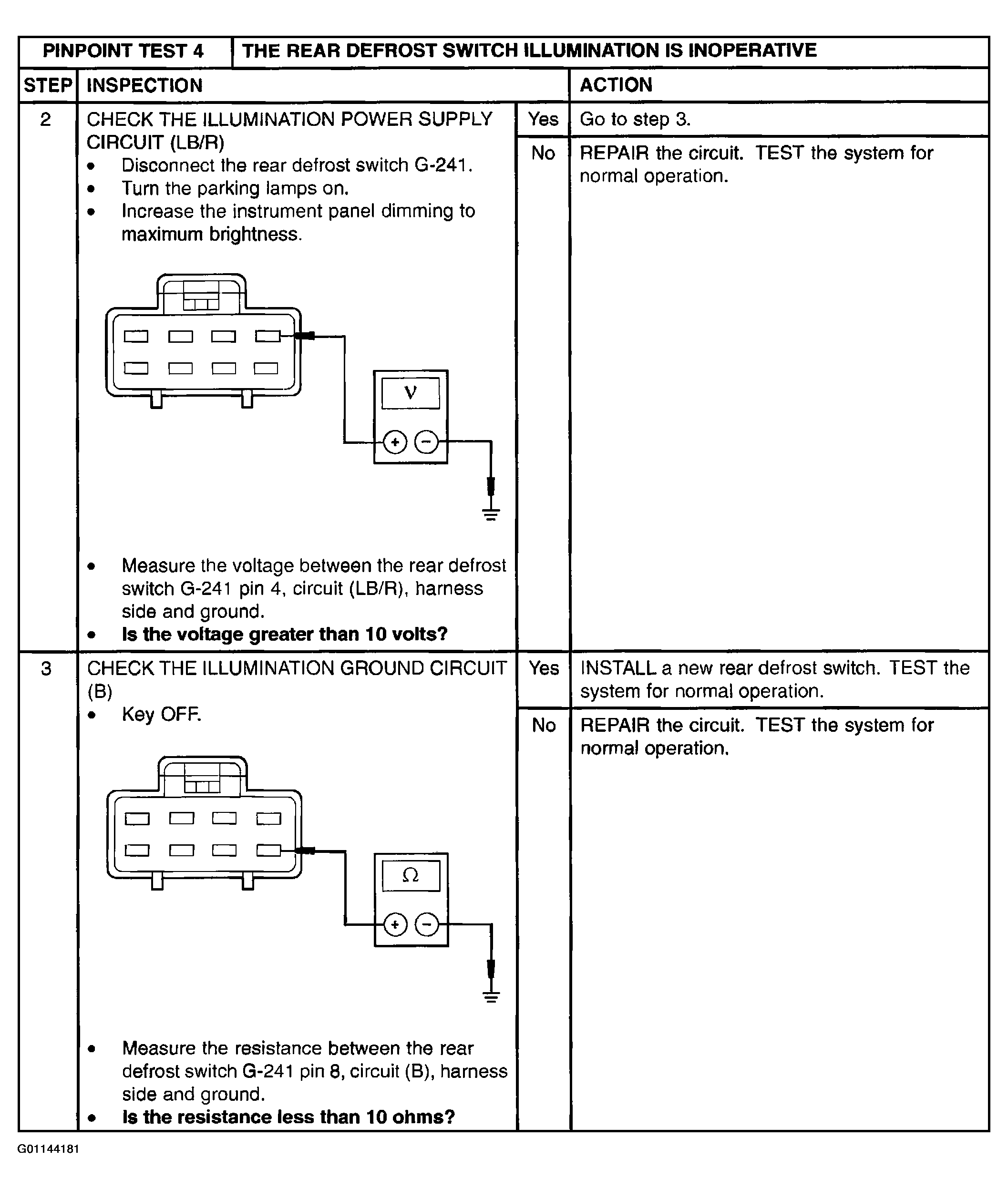

Fig 2: Pinpoint Test 4: The Rear Defrost Switch Illumination Is Inoperative (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.
