Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim

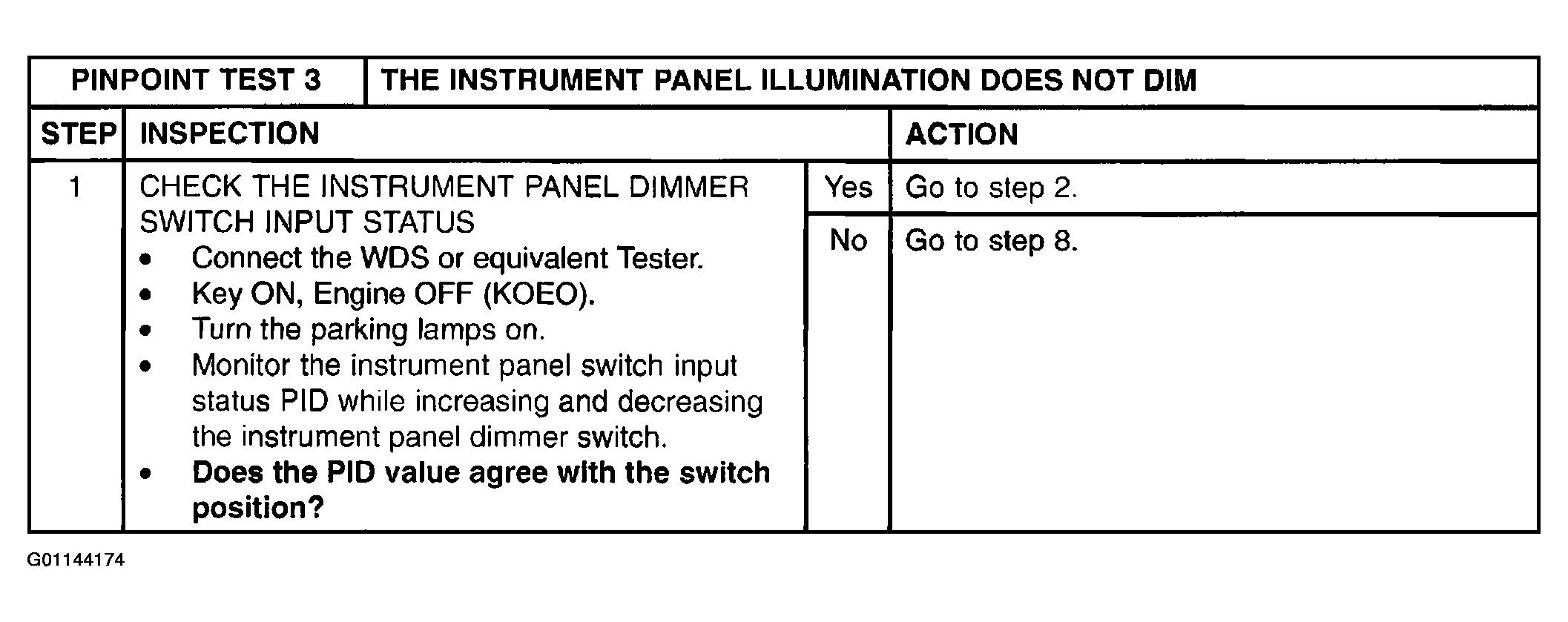

Fig 1: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim (Step 1)

Courtesy of MAZDA MOTORS CORP.

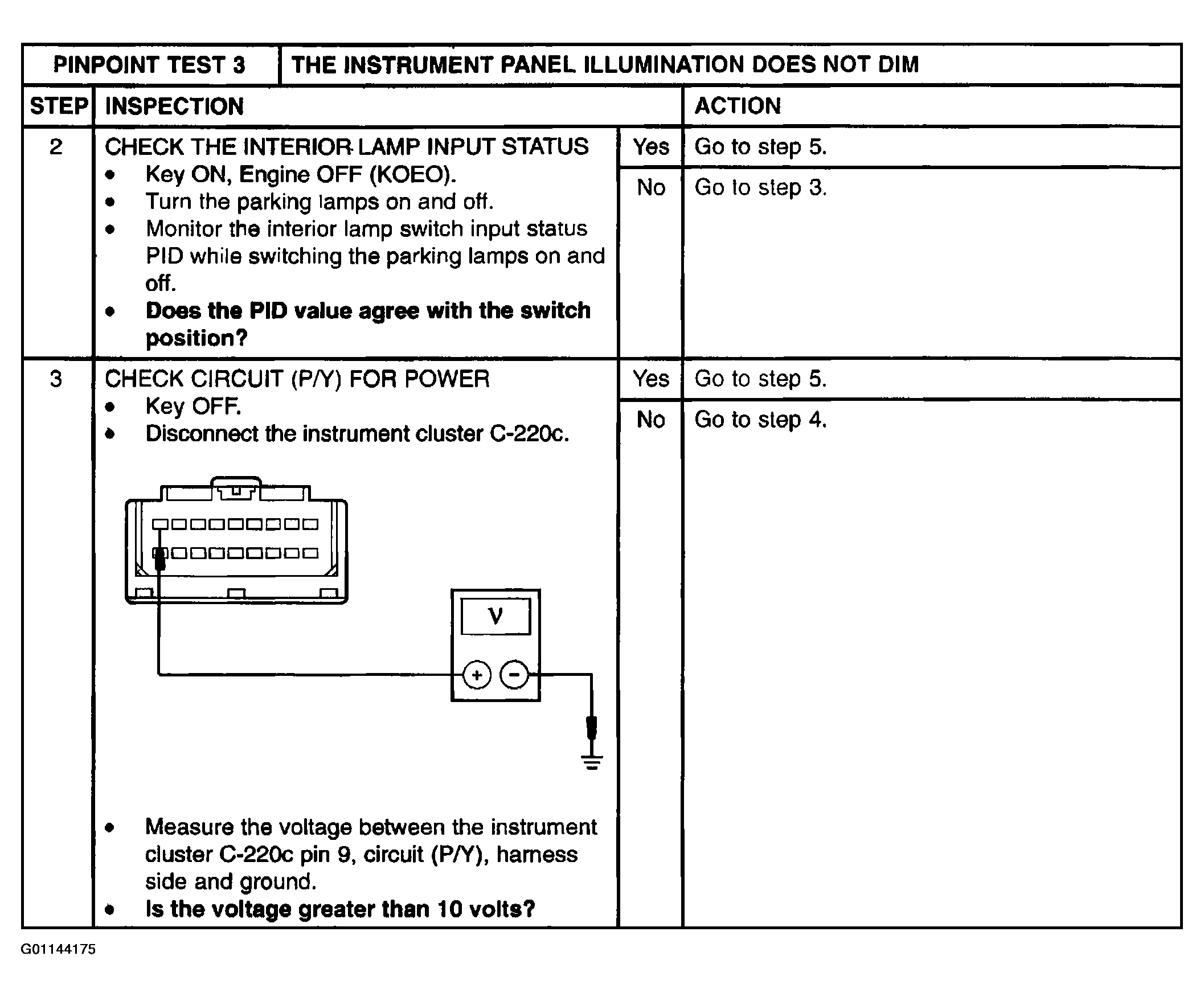

Fig 2: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim (Steps 2-3)

Courtesy of MAZDA MOTORS CORP.

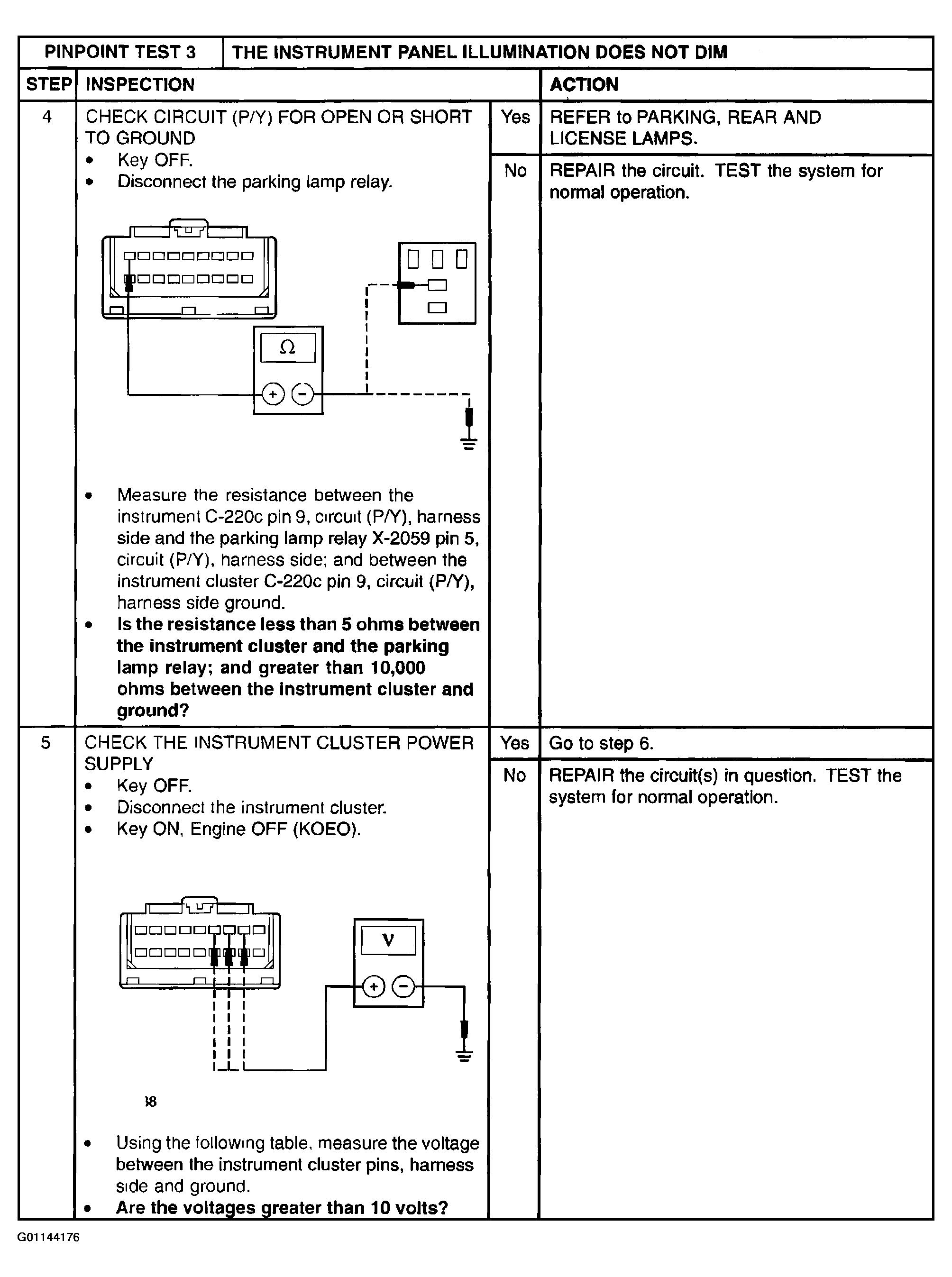

Fig 3: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.

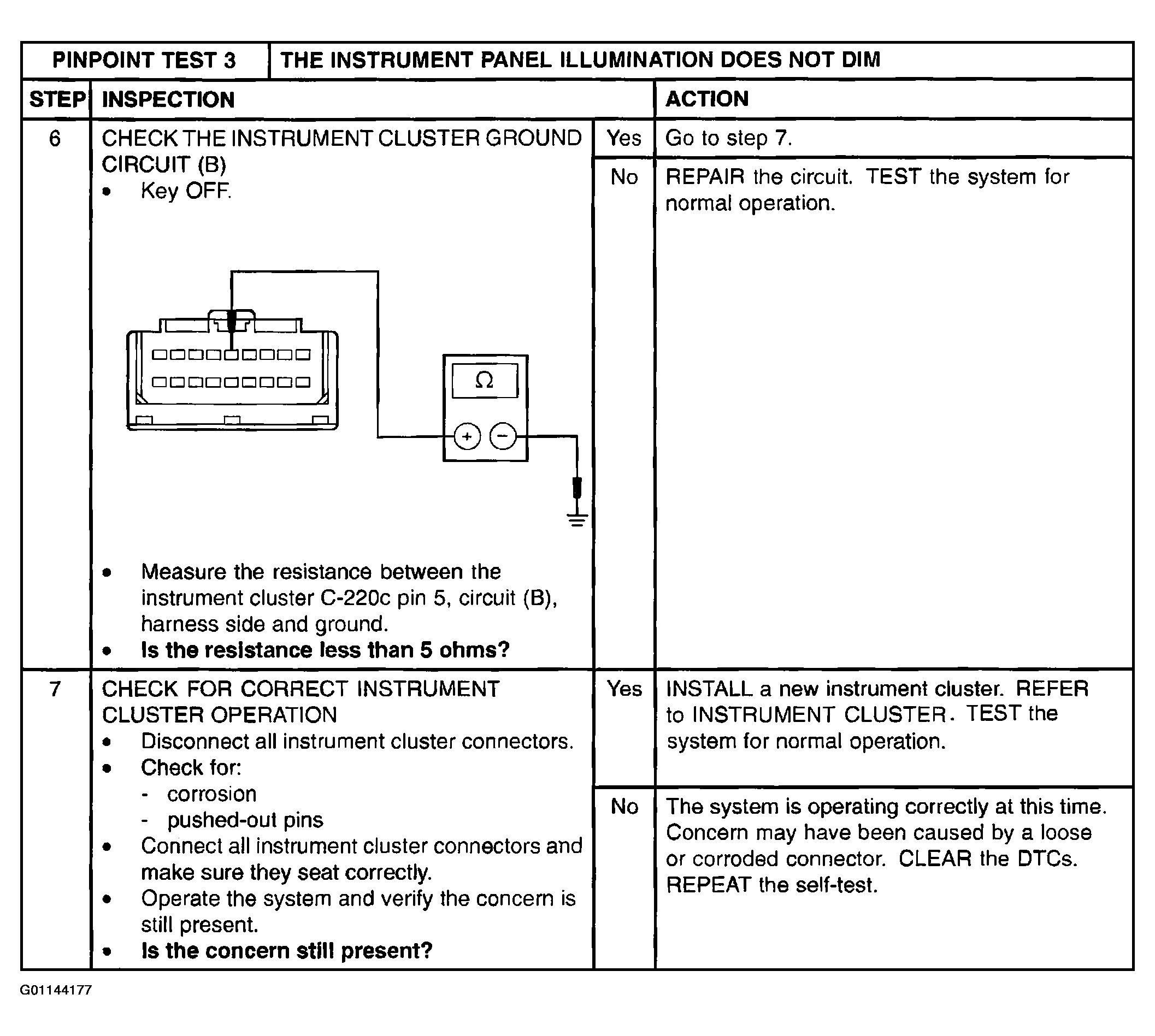

Fig 4: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim (Steps 6-7)

Courtesy of MAZDA MOTORS CORP.

Fig 5: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim (Steps 8-9)

Courtesy of MAZDA MOTORS CORP.

Fig 6: Pinpoint Test 3: The Instrument Panel Illumination Does Not Dim (Step 10)

Courtesy of MAZDA MOTORS CORP.
