Pinpoint Test 2: The Audio System Illumination Is Inoperative

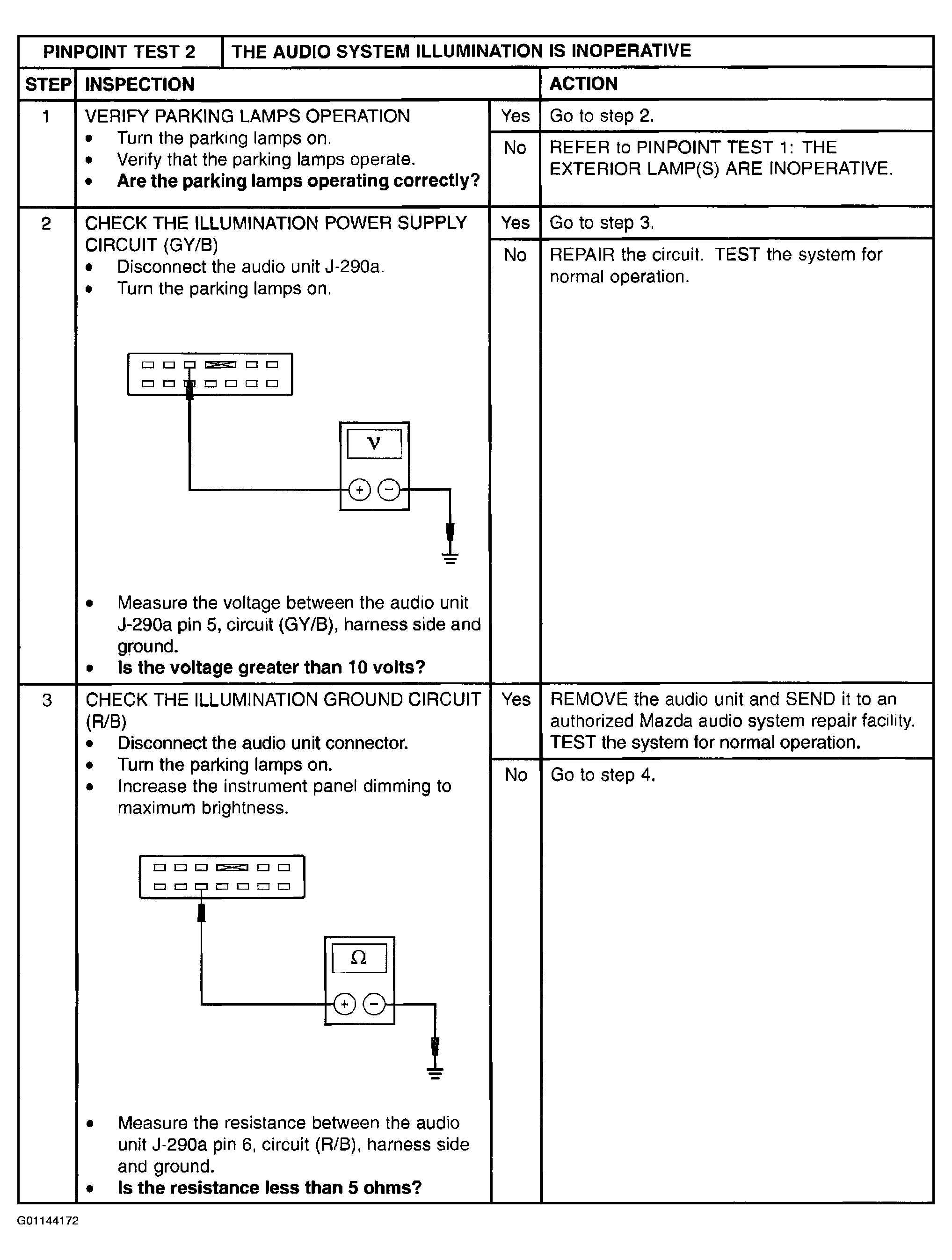

Fig 1: Pinpoint Test 2: The Audio System Illumination Is Inoperative (Steps 1-3)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Pinpoint Test 2: The Audio System Illumination Is Inoperative (Steps 4-5)

Courtesy of MAZDA MOTORS CORP.
